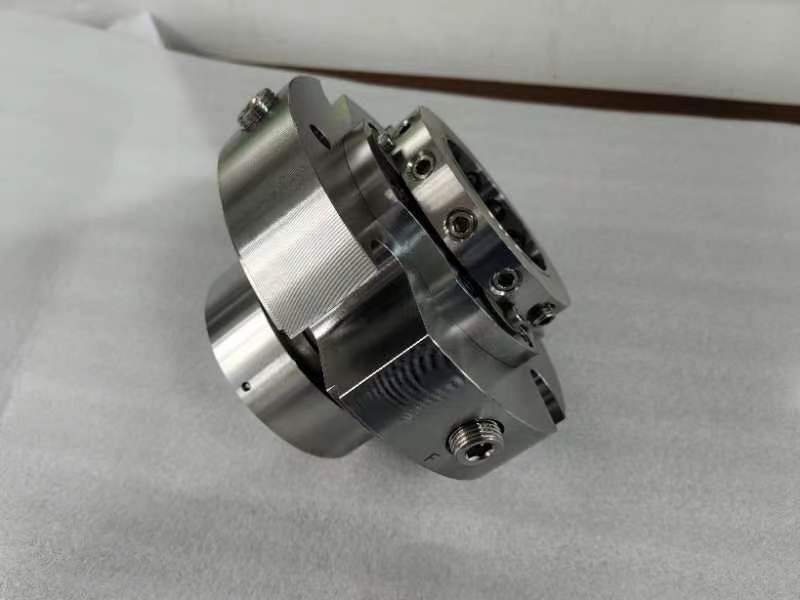

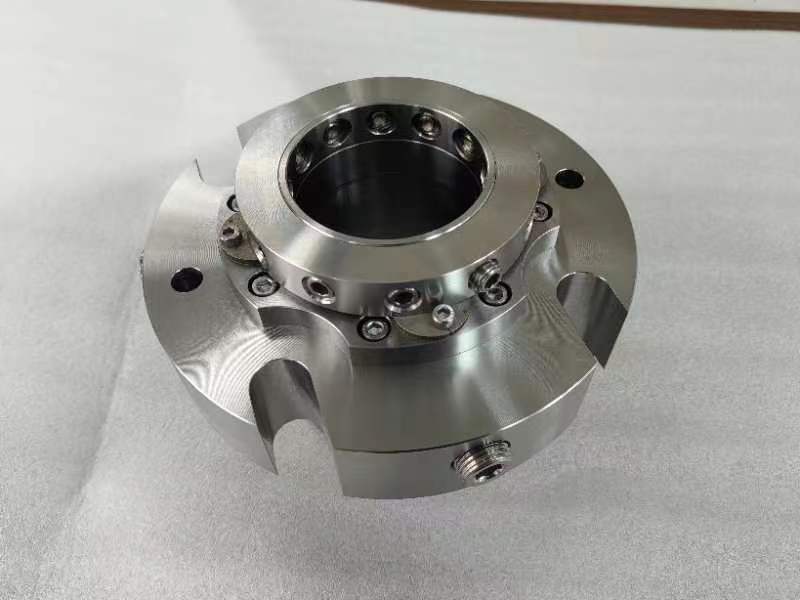

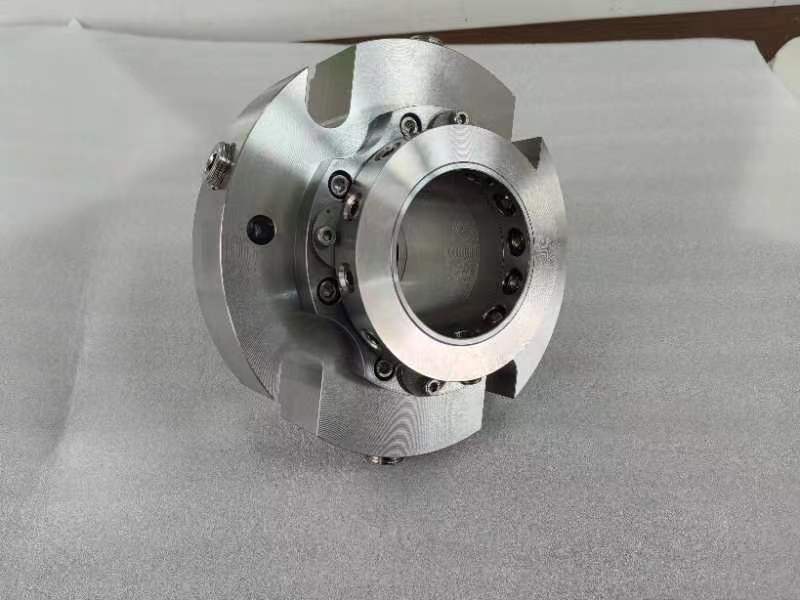

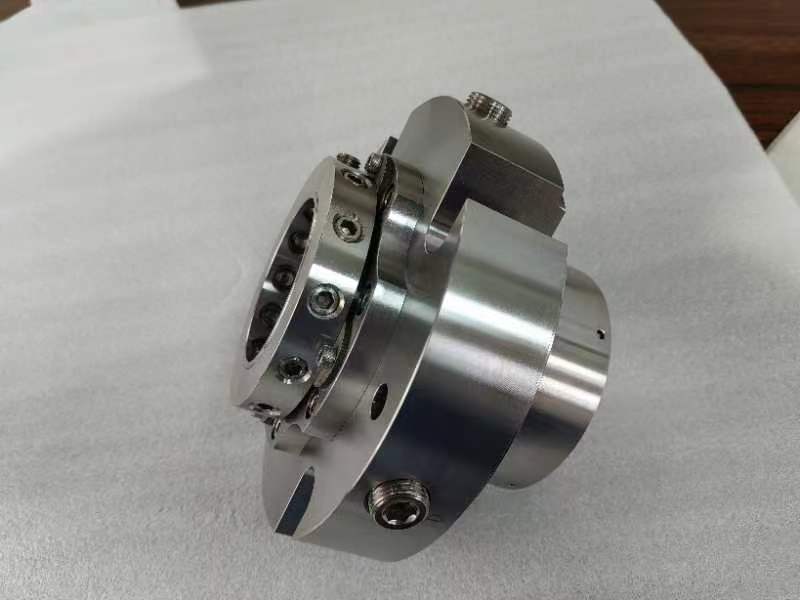

AS AllPac 480-80
AllPac for slurry and corrosive duties. Internally mounted, double balanced, single mechanical seal. Springs are stationary and outside the pumped medium, making it ideal for slurry conditions.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/Tungsten Carbide/FFKM/HC276/2205 Duplex
1 Variant
| Model | Materials | GA |
|---|---|---|
| AllPac 480-80 | Carbon/Tungsten Carbide/FFKM/HC276/2205 Duplex | — |
Operating Conditions & Materials
Pressure
4.0 MPa or less
Temperature
-40 ~ 250 ºC
Linear Speed
25 m/s or less
Mediums
High-pressure chemical processing, aggressive corrosive mediums, API applications.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
