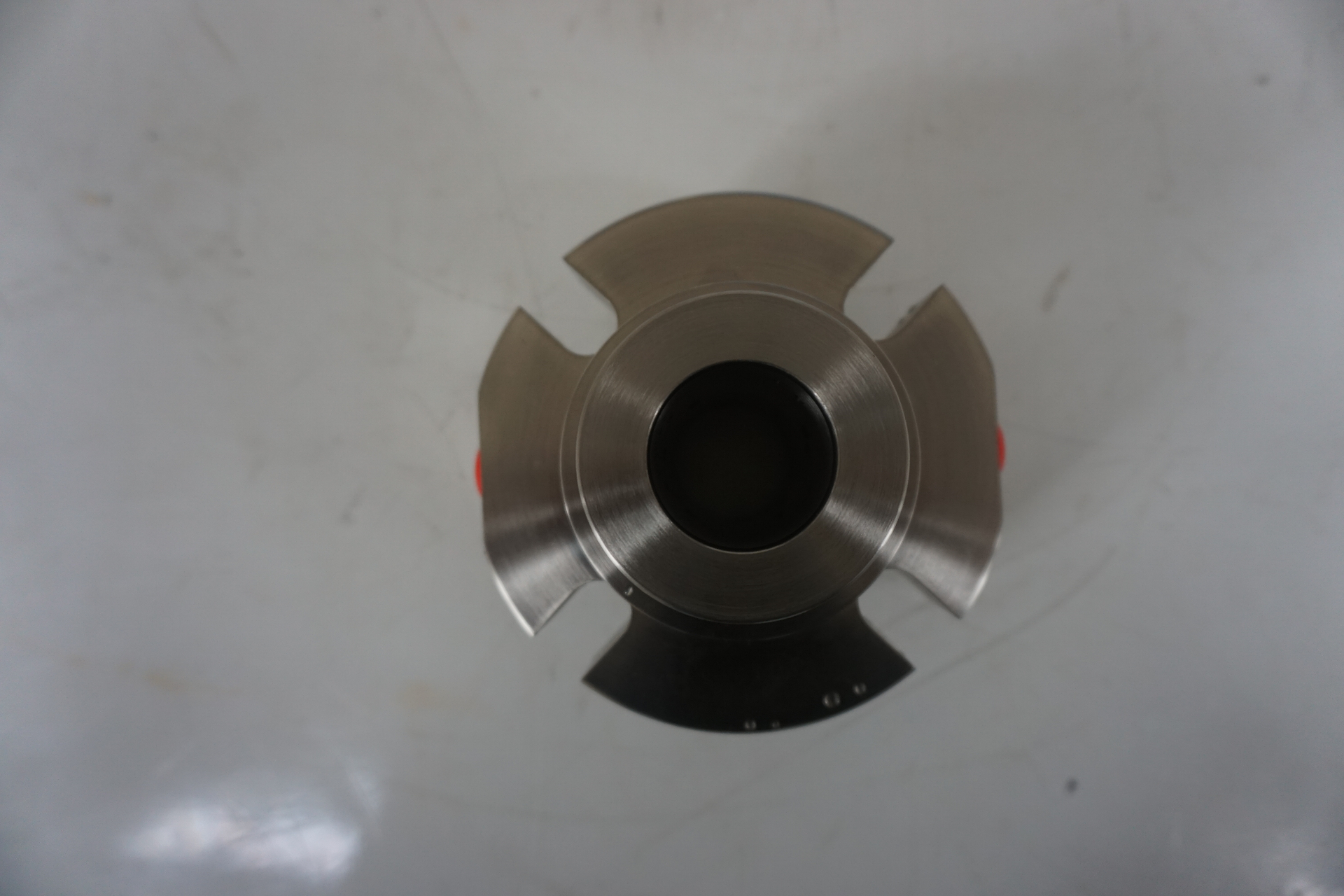

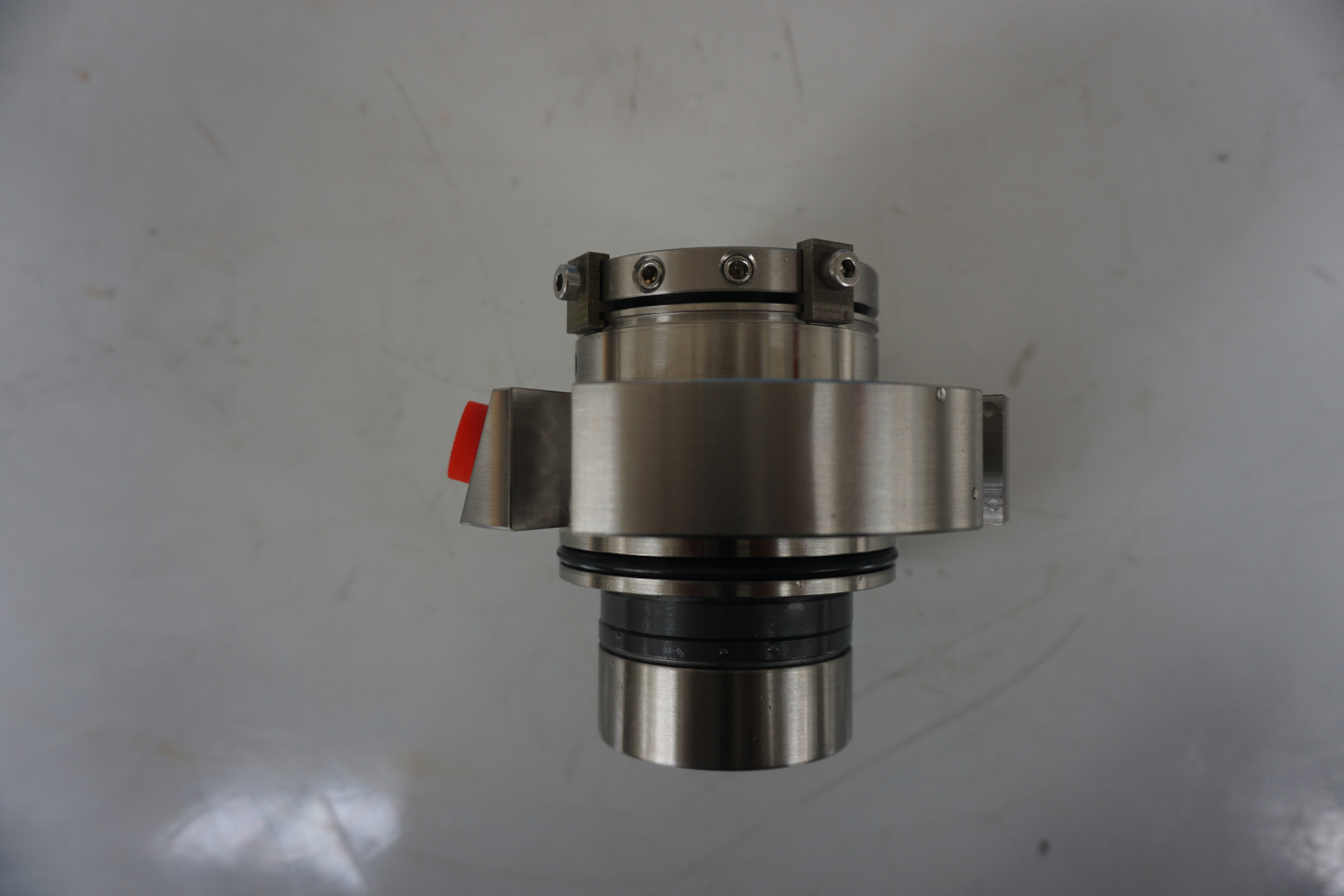

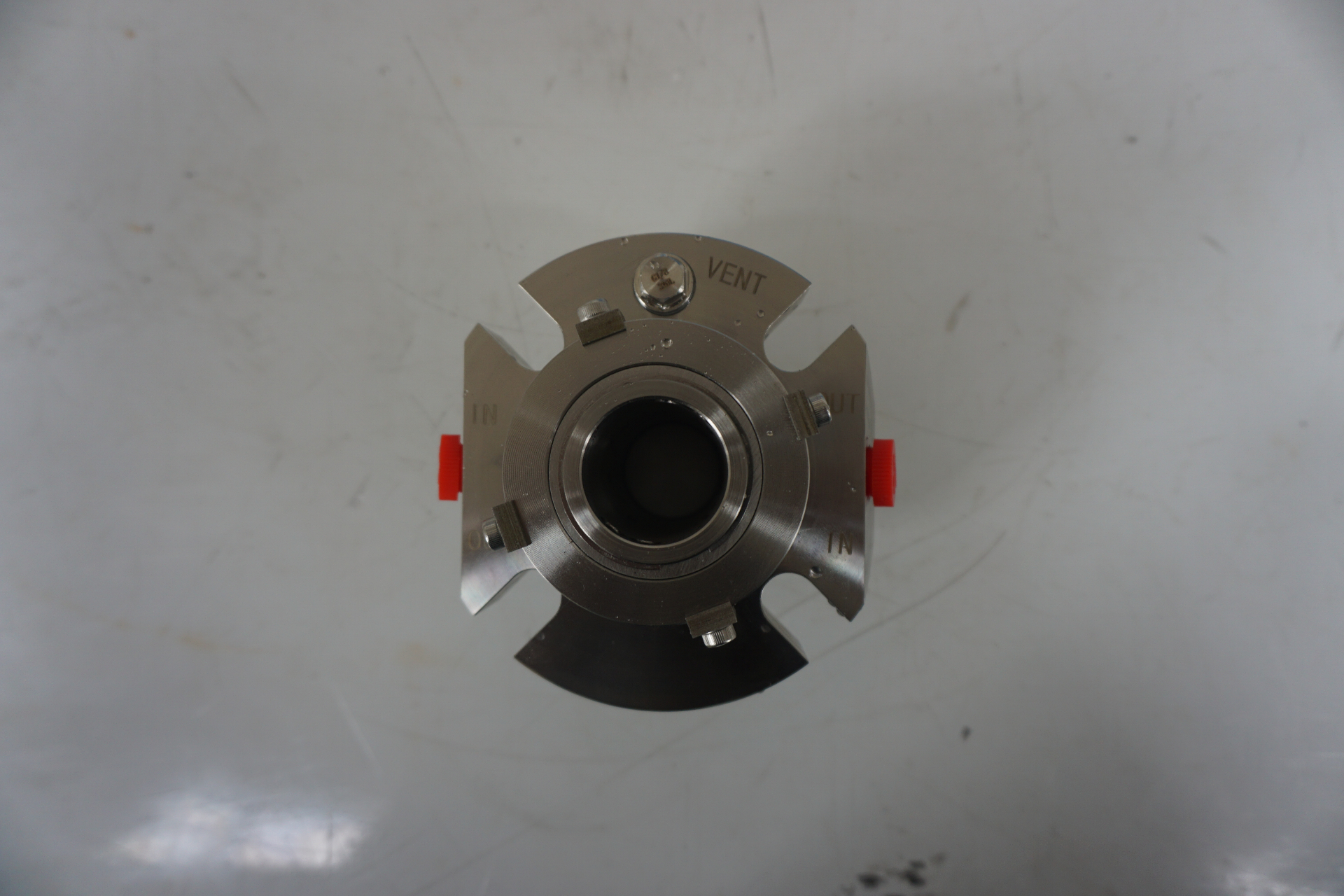

AS CARTEX-SDN-30-E1
Cartex SDN seal, double ended balanced cartridge with integrated pumping device. Universal for packing conversions, retrofits or OEM. No seal chamber modification necessary.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/HC276/SS316 - SiC/Carbon/Viton
1 Variant
| Model | Materials | GA |
|---|---|---|
| CARTEX-SDN-30-E1 | SiC/SiC/Viton/HC276/SS316 - SiC/Carbon/Viton | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Chemicals, solvents, industrial process fluids. Double-end cartridge seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
