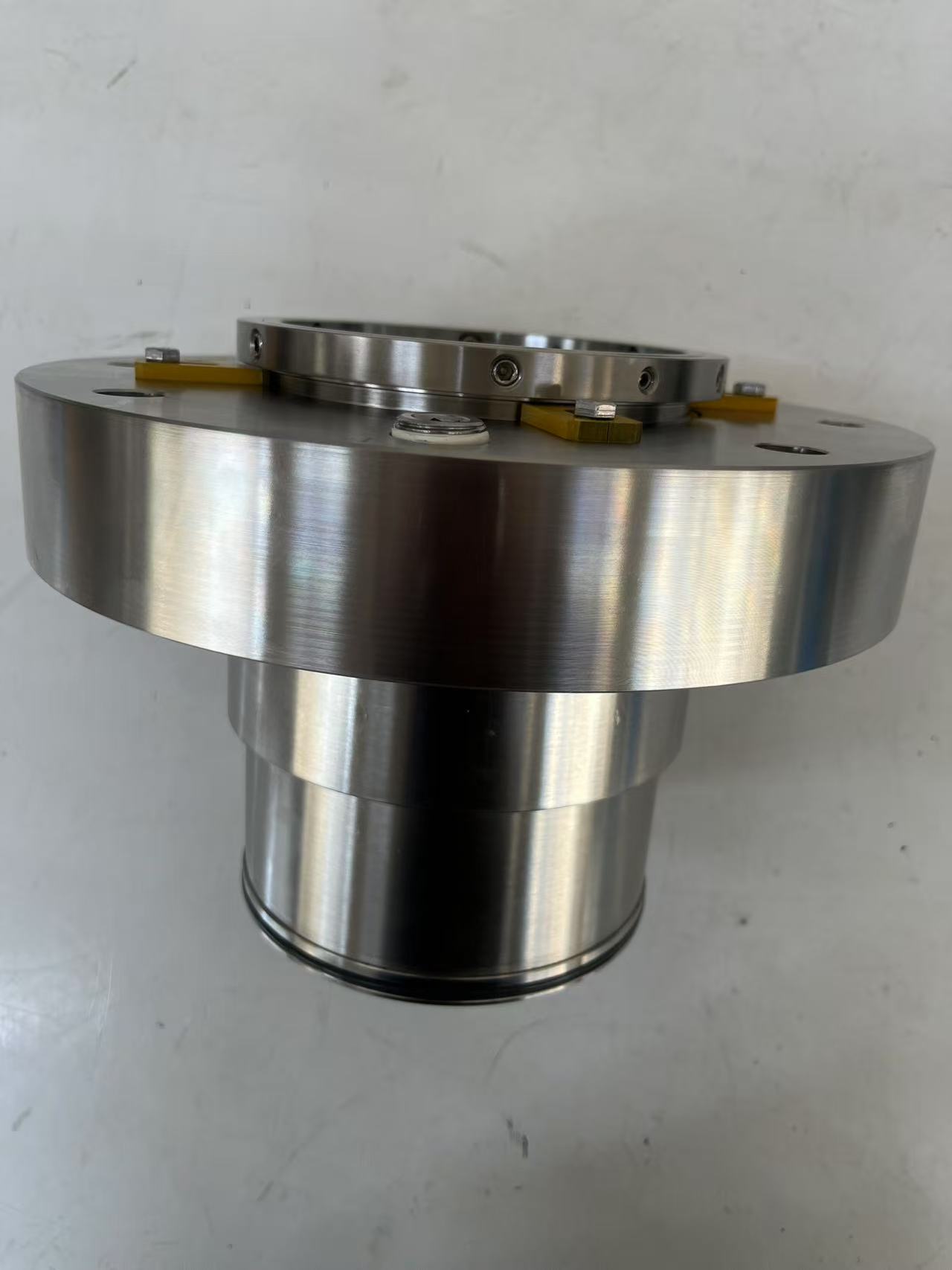

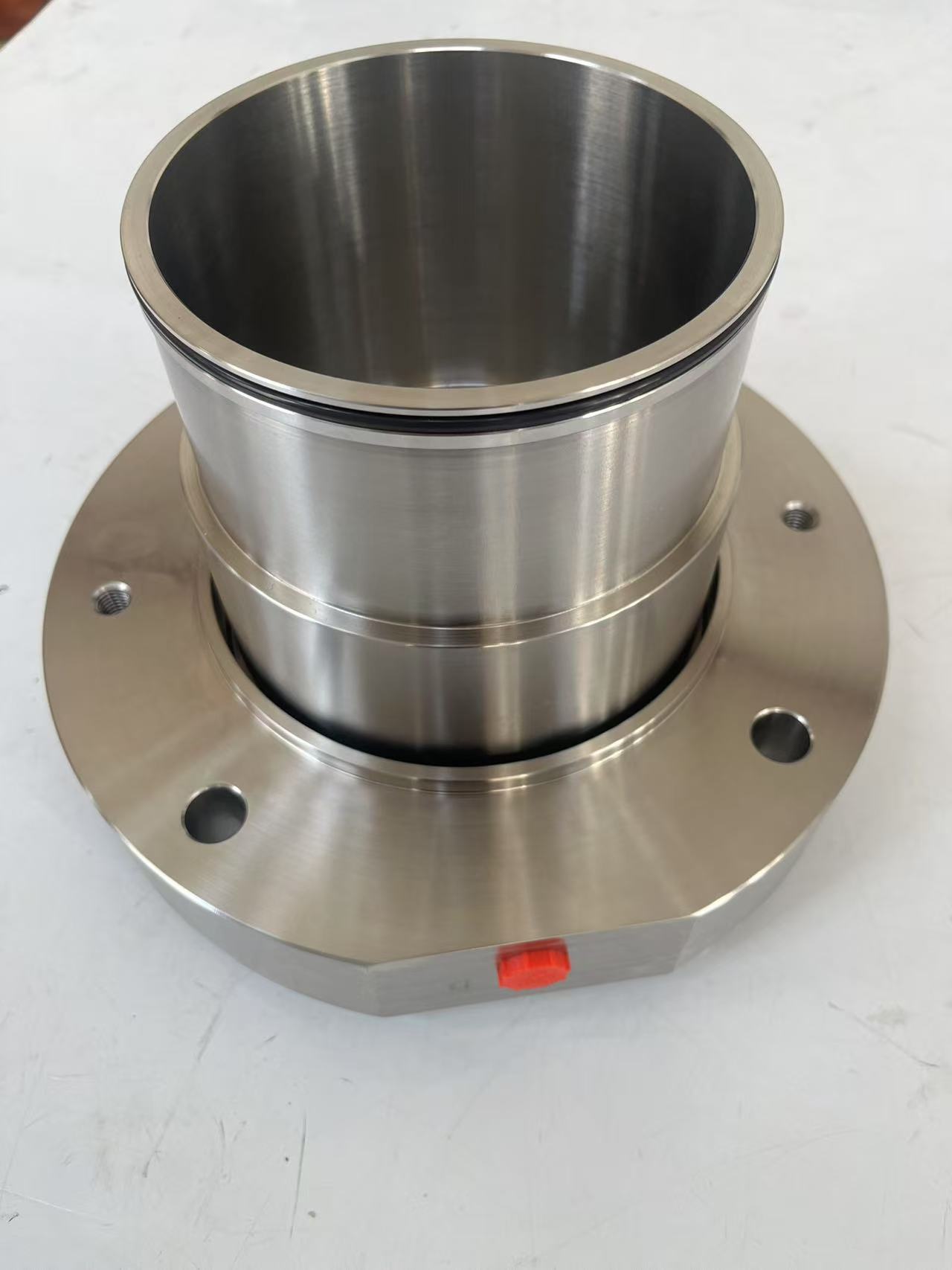

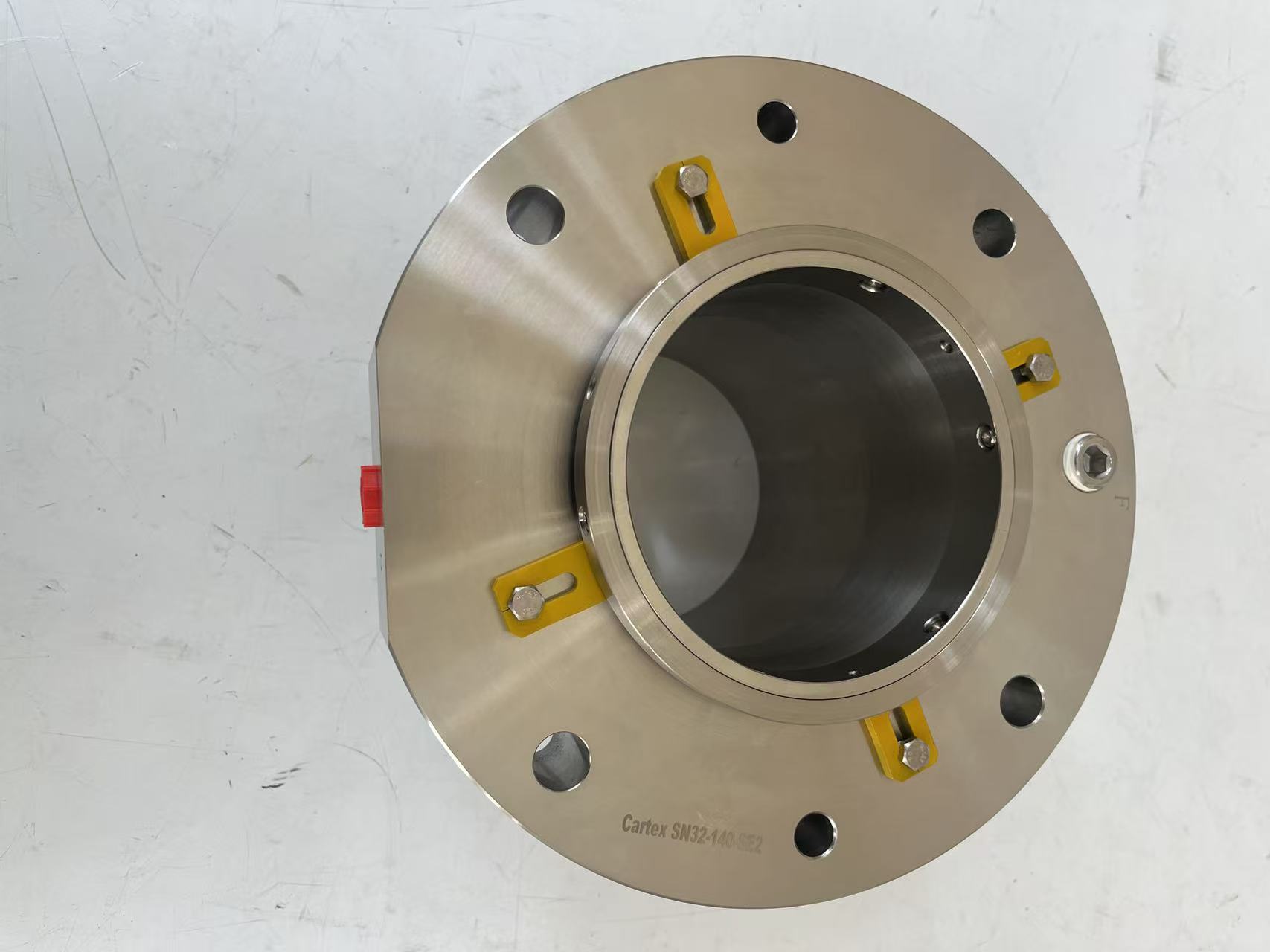

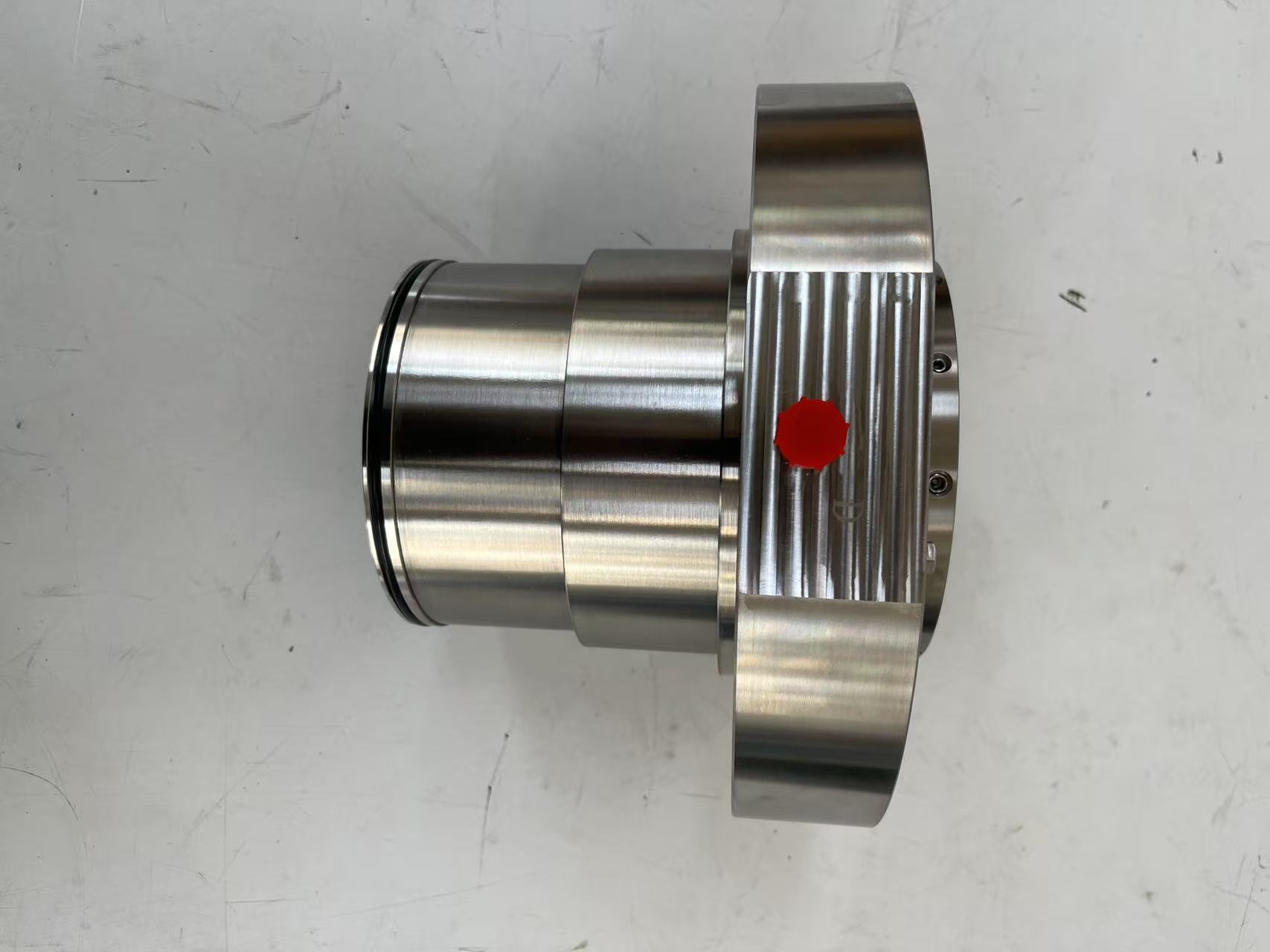

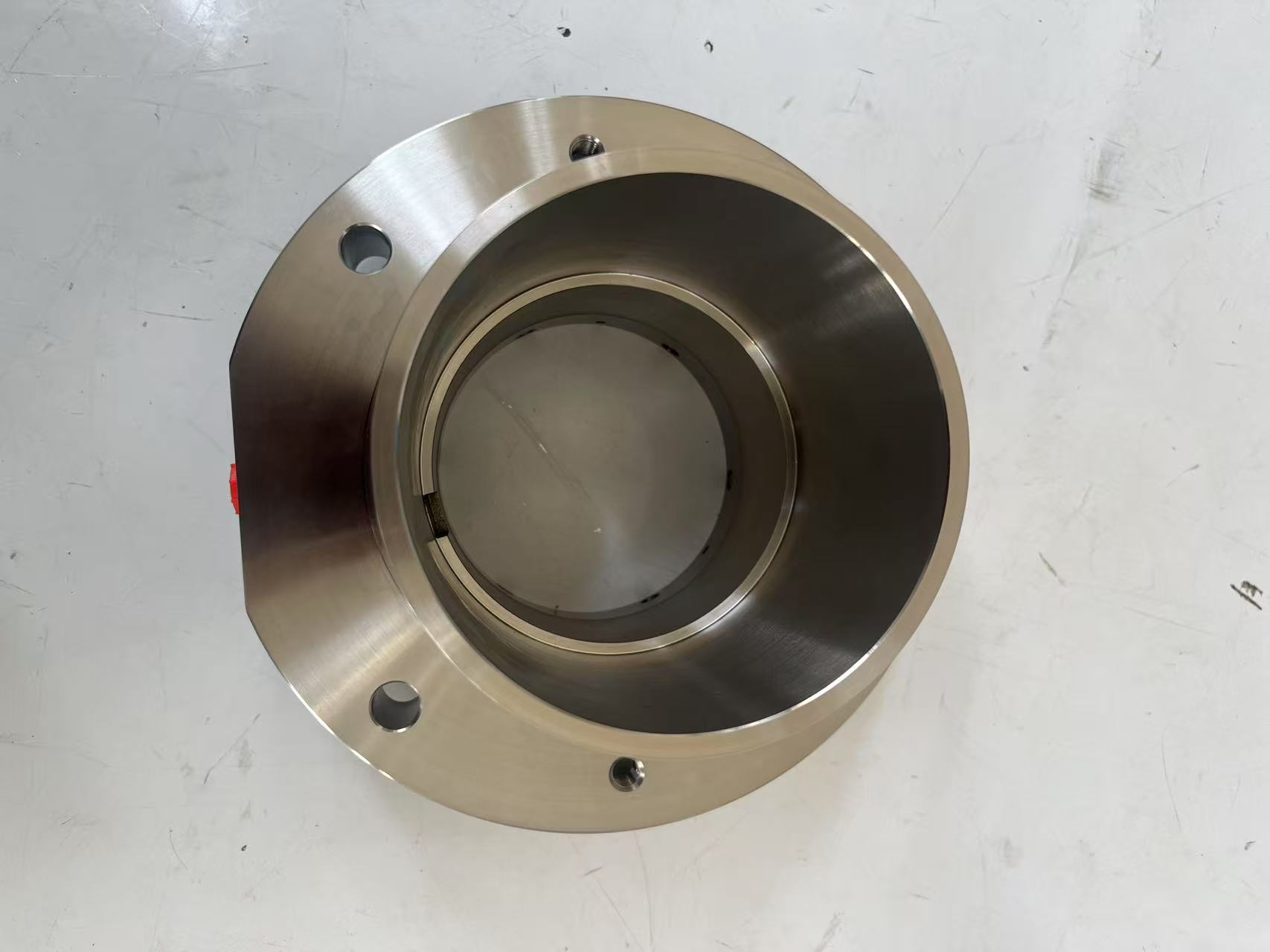

AS CARTEX-SN32-140-SE2
Cartex single cartridge, independent of rotation direction. Universal for standardizations and retrofits.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| CARTEX-SN32-140-SE2 | SiC/SiC/Viton/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Chemicals, solvents, industrial process fluids. Single-end cartridge seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
