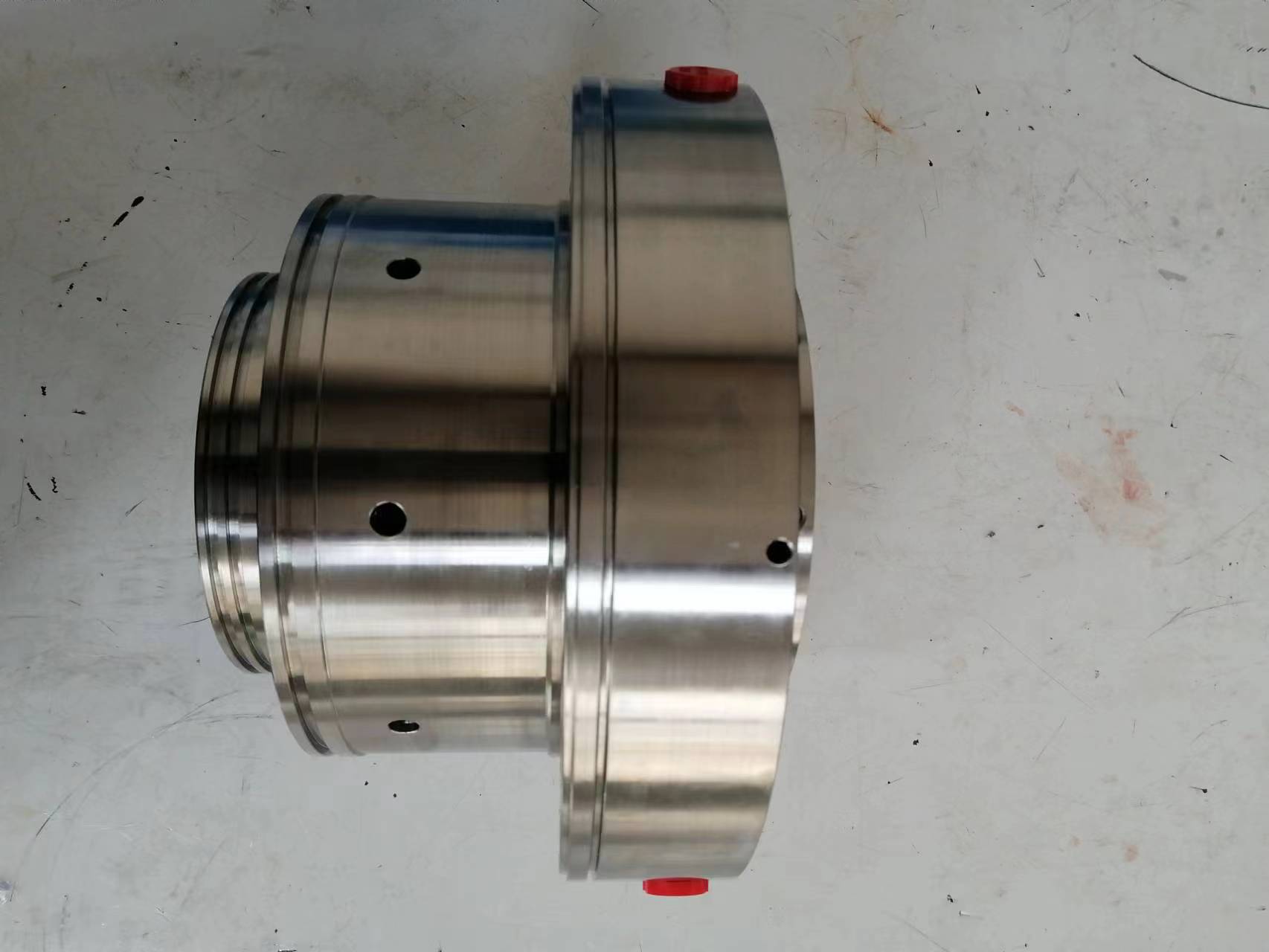

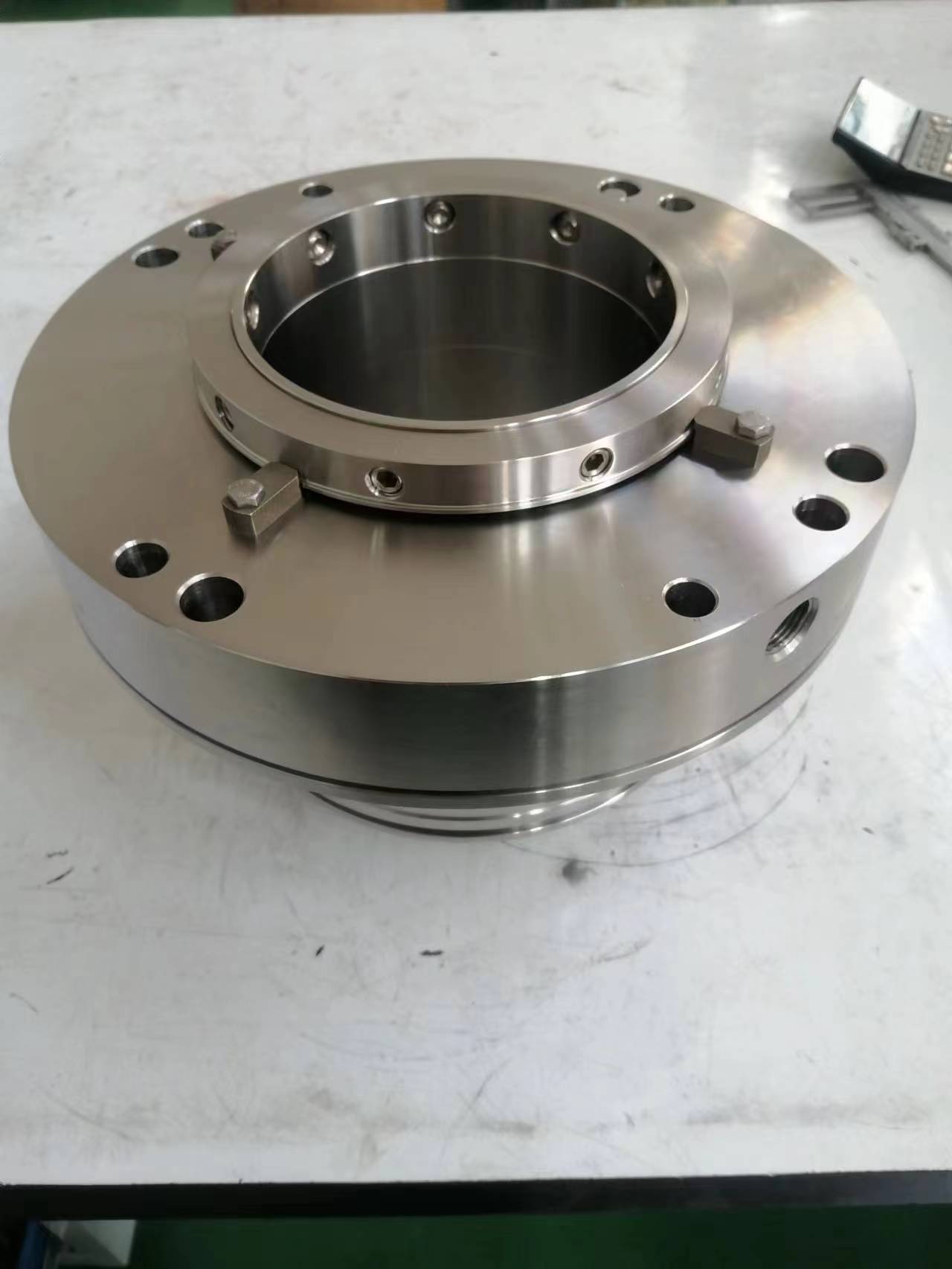

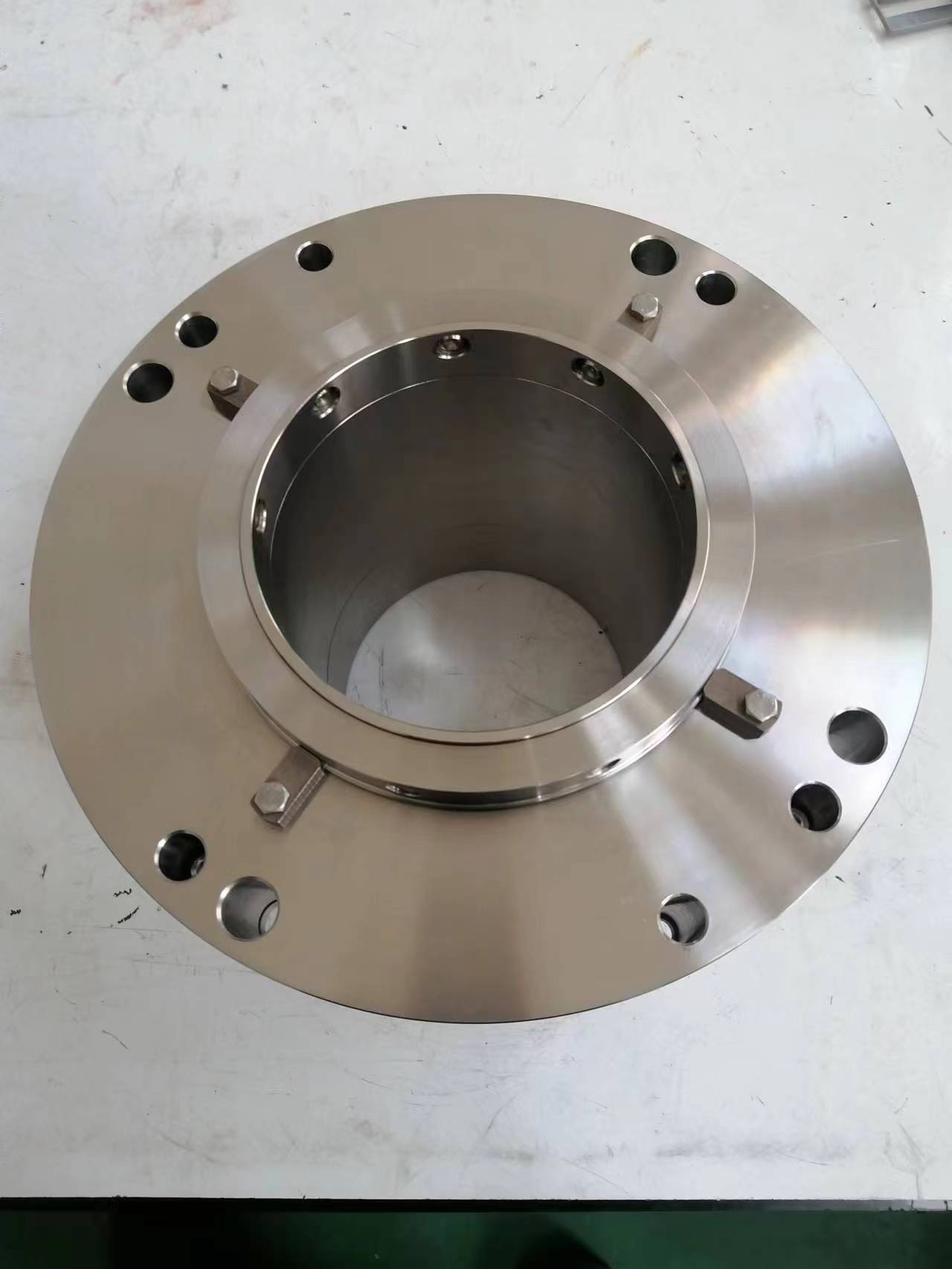

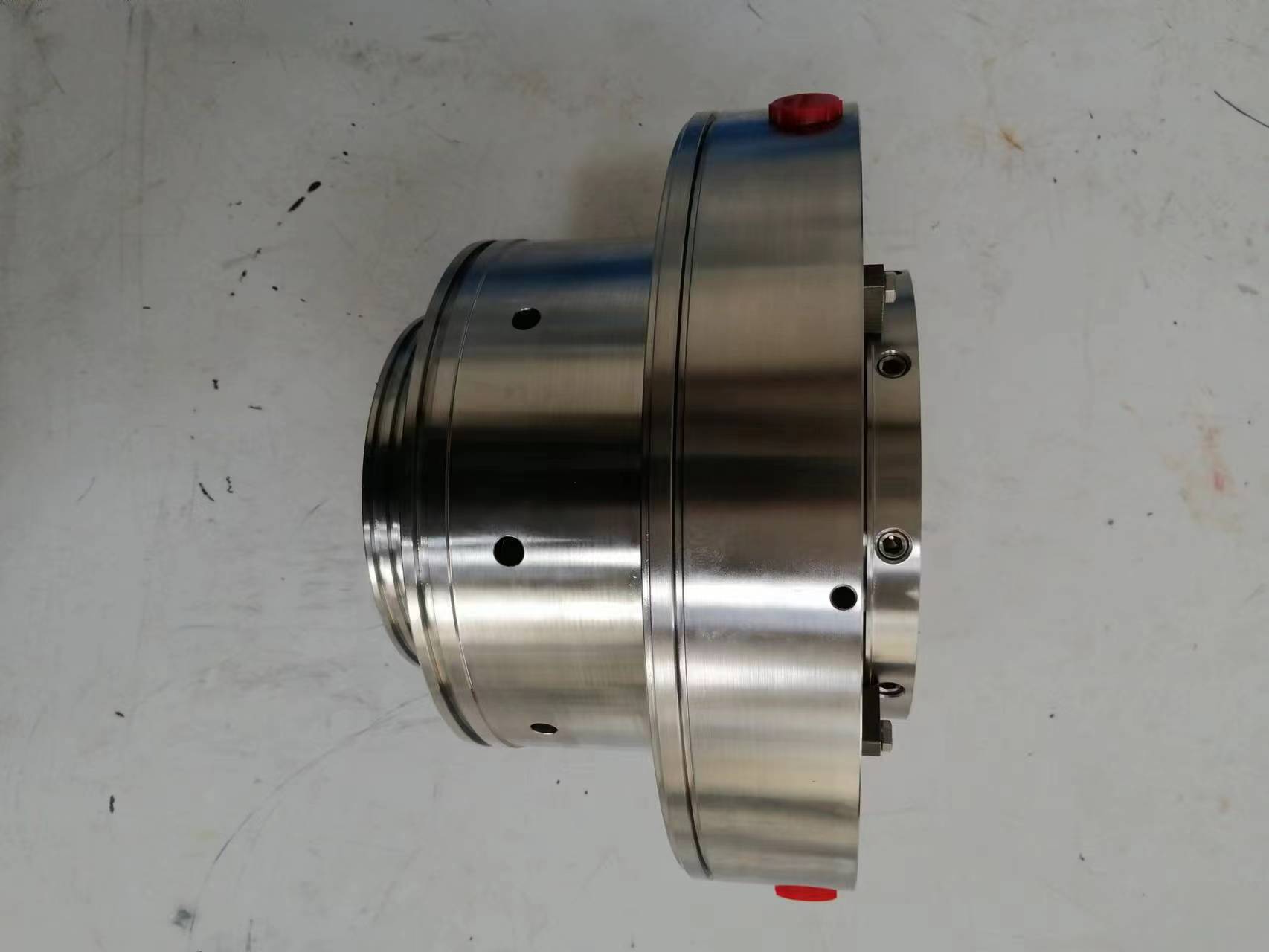

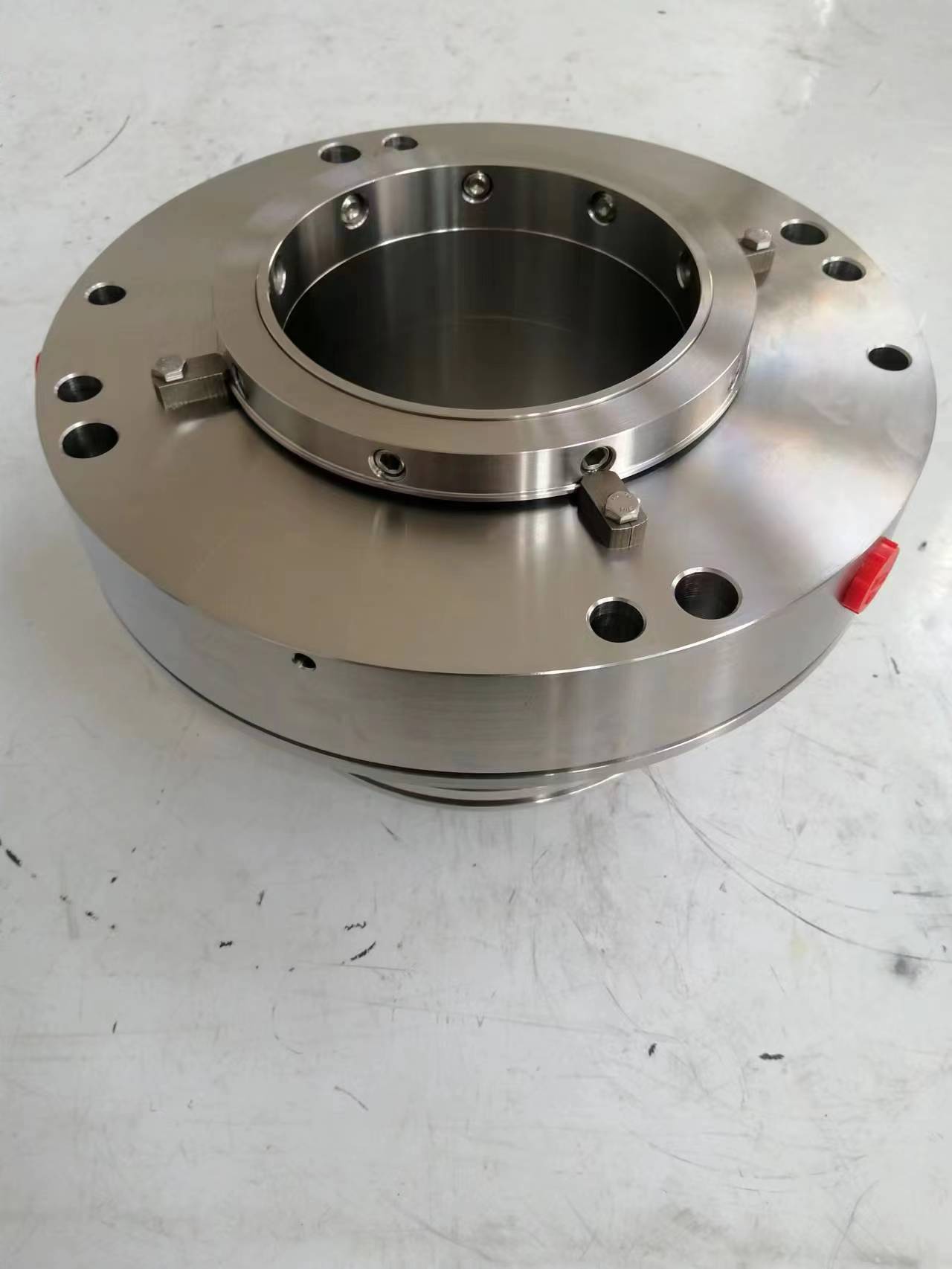

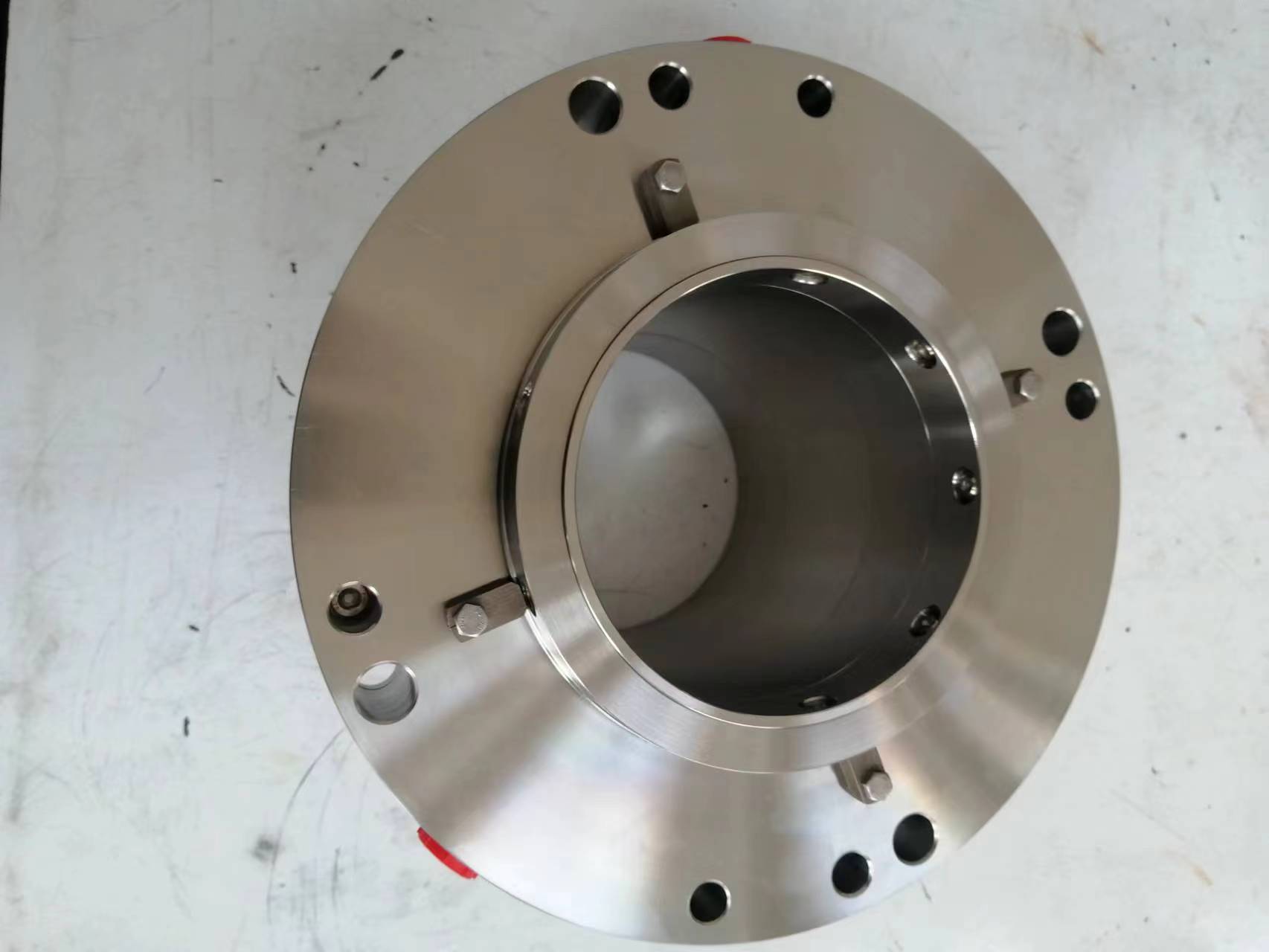

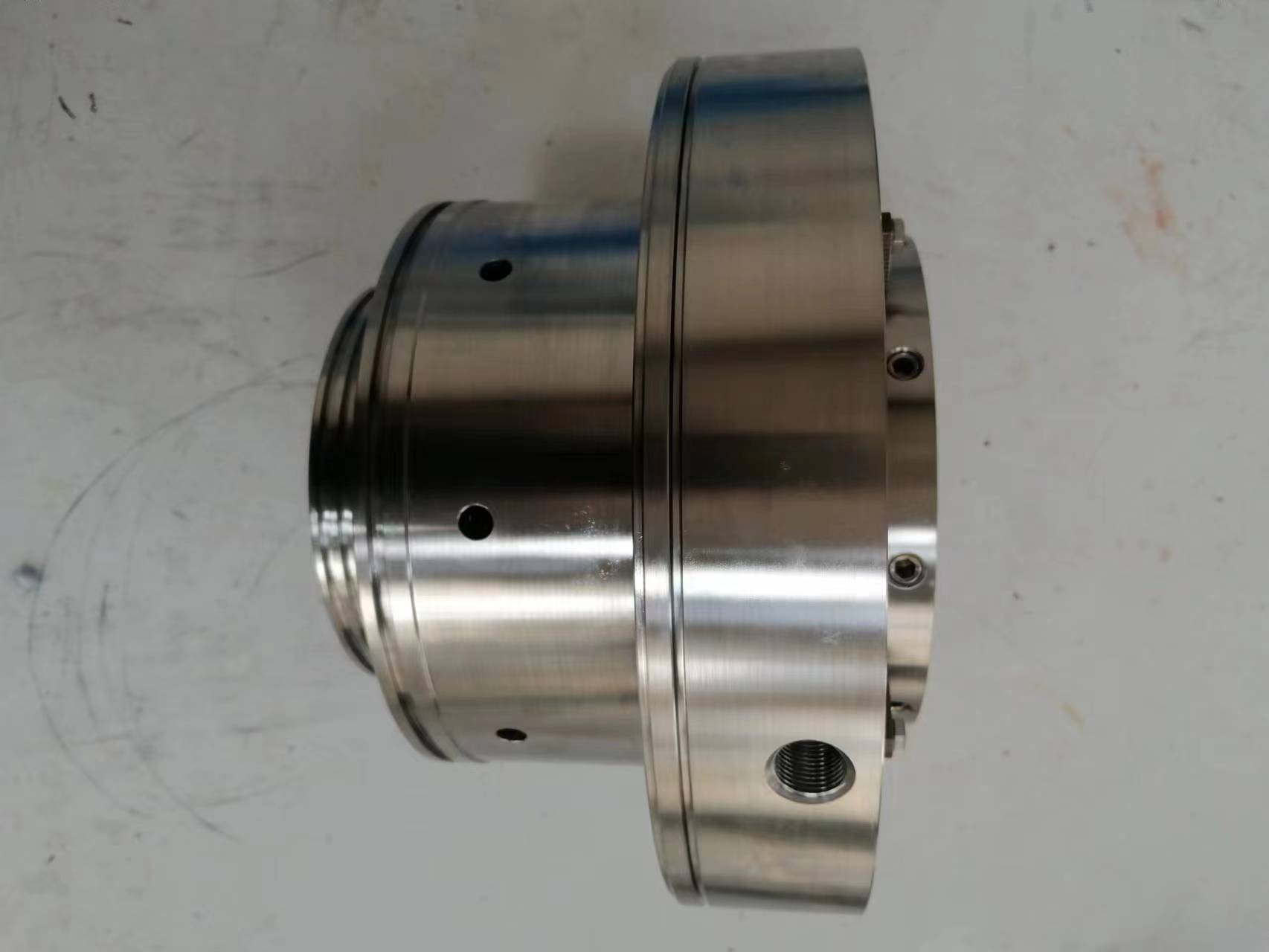

AS CM8B-170-J150HJ
Special OEM double ended, balanced cartridge (back to back) for vacuum pump, deployed for vinyl acetate plant.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Antimony Filled Carbon/SiC/FFKM/HC276/SS316 - Antimony Filled Carbon/SiC/Viton
1 Variant
| Model | Materials | GA |
|---|---|---|
| CM8B-170 | Antimony Filled Carbon/SiC/FFKM/HC276/SS316 - Antimony Filled Carbon/SiC/Viton | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-20 ~ 220 ºC
Linear Speed
30 m/s or less
Mediums
Boiler feed water, high temperature and high pressure pump applications. Double-end cartridge seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
