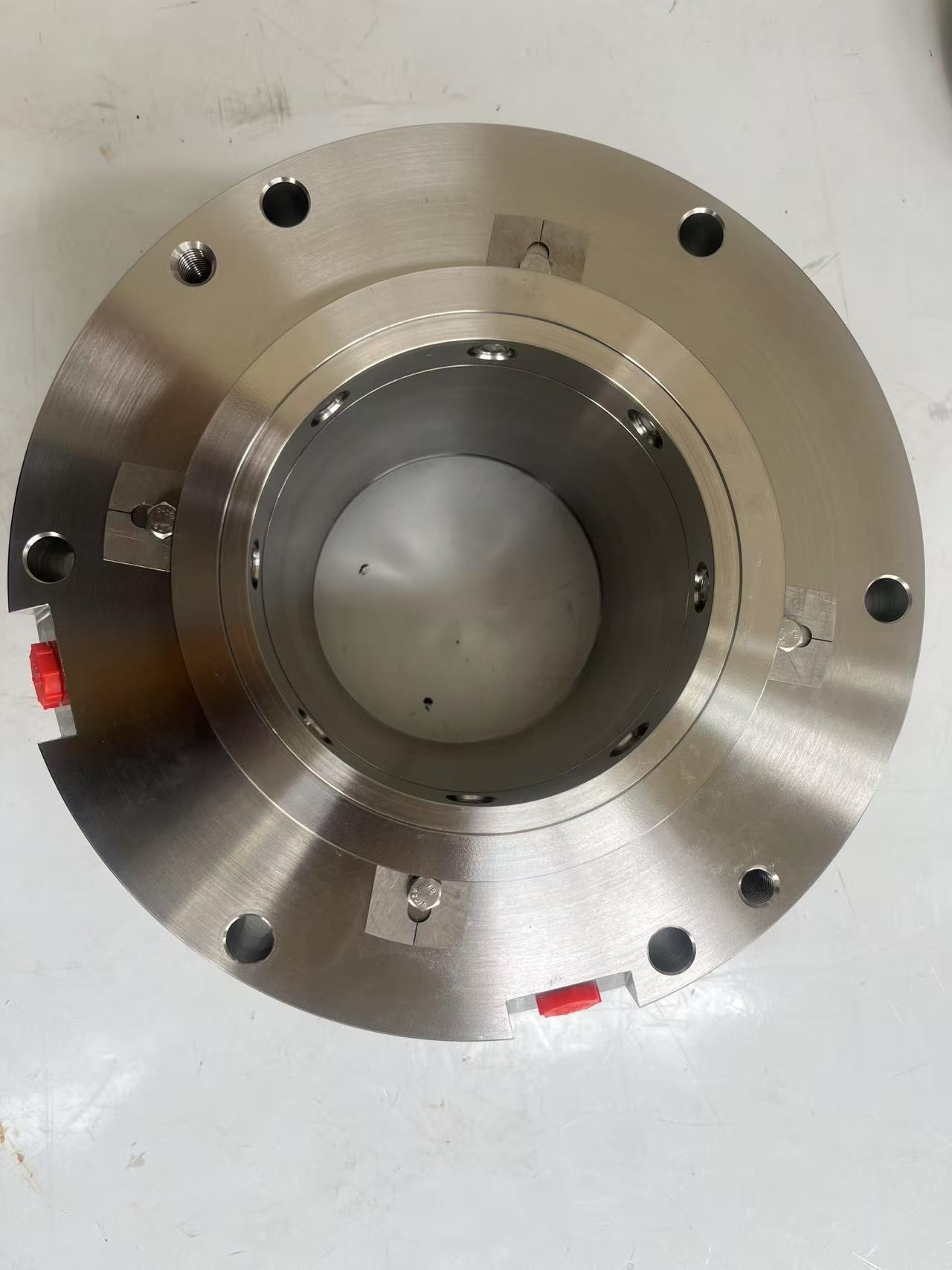

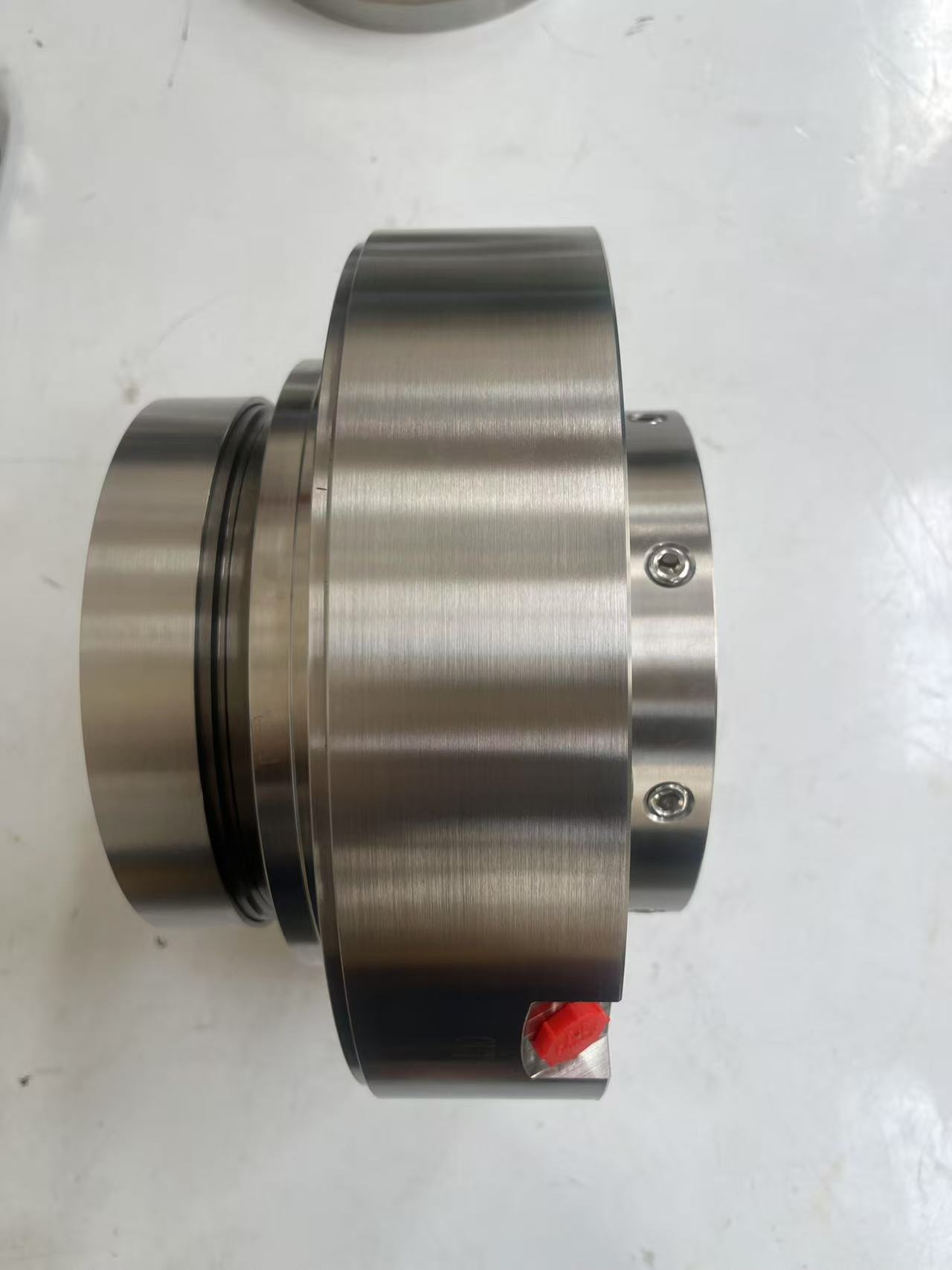

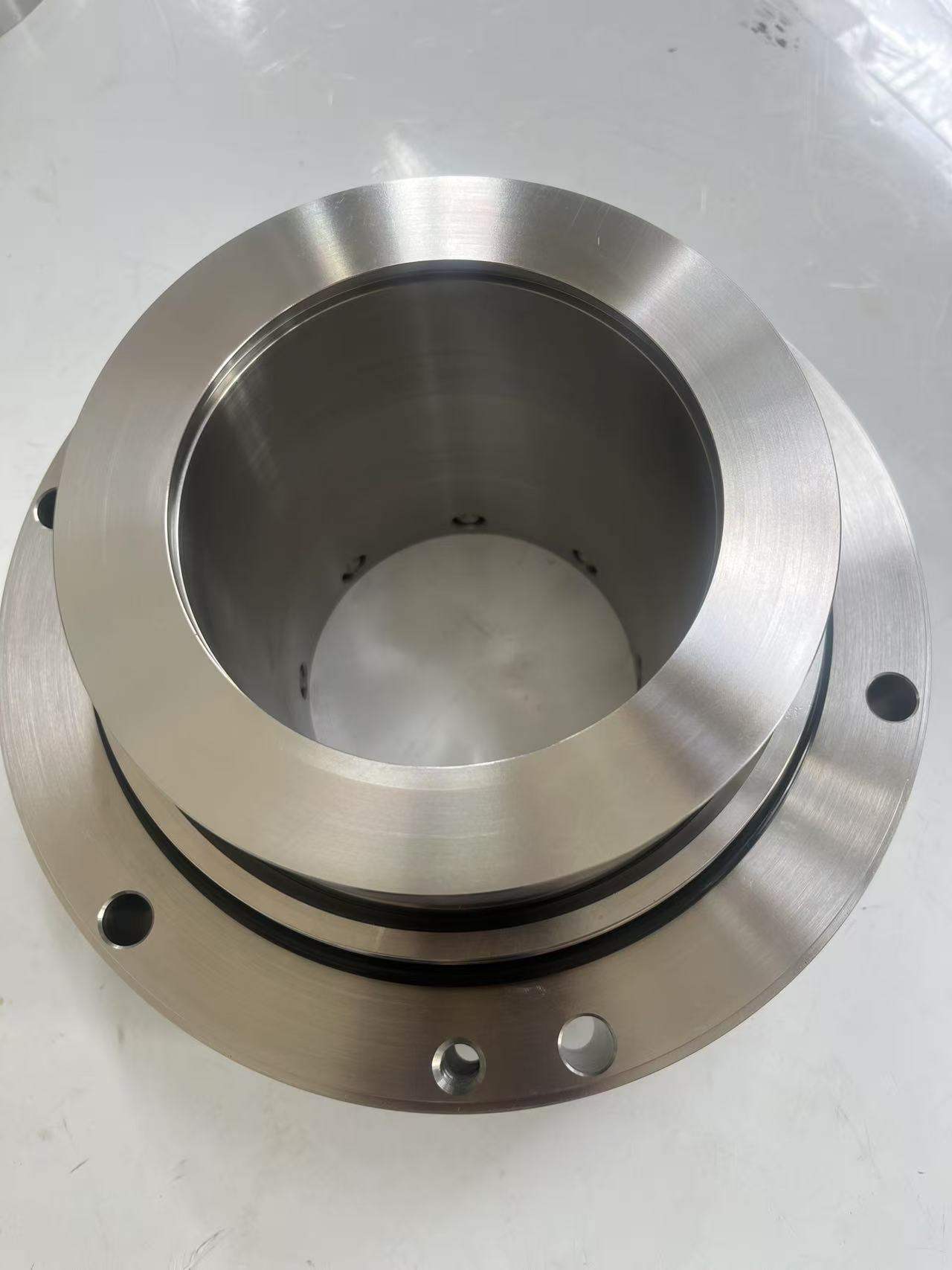

AS DESENHO-D0559478-130-00
Single cartridge seal OEM design for Weir 8/6FF-AHP pumps. Balanced, pressure ≤3.5 MPa, speed ≤960 r/min. API Plan 03/62.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Tungsten Carbide/Tungsten Carbide/Viton/HC276/SS316Ti
1 Variant
| Model | Materials | GA |
|---|---|---|
| DESENHO-D0559478-130 | Tungsten Carbide/Tungsten Carbide/Viton/HC276/SS316Ti | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Abrasive slurries, mining process fluids, heavy duty industrial applications.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
