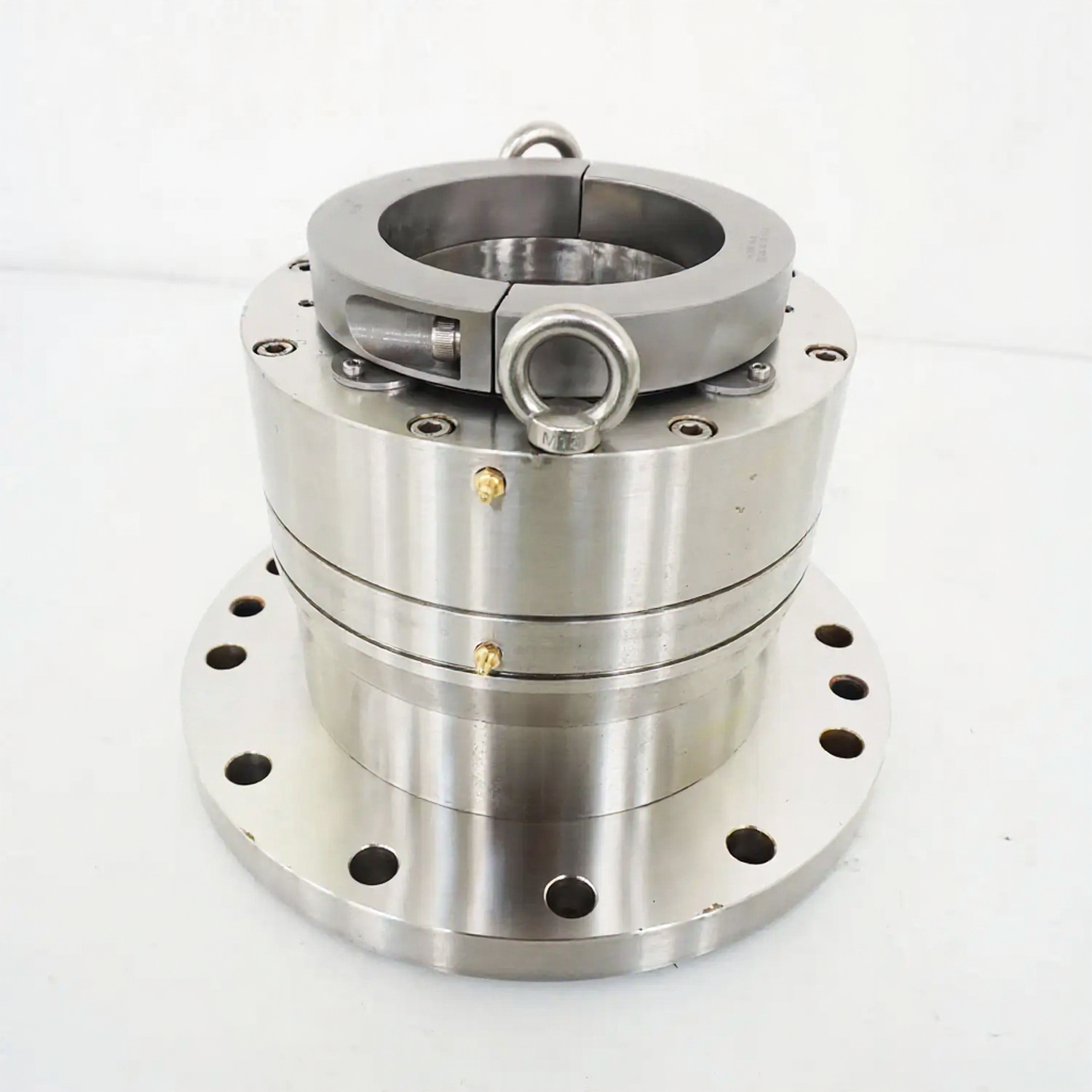

AS DGS-M2
Heavy-duty double-ended dry gas seal for large mixer and reactor applications. Split-clamp cartridge design with non-contacting gas-lubricated faces for demanding chemical and process mixing environments.
Technical Specifications
- Pressure: ≤2.5 MPa
- Temperature: -30 to 250 °C
- Rotation Speed: Up to 1200 r/min
- Medium: Hazardous chemicals, toxic gases, flammable solvents, reactor intermediates
- Shaft Diameter Range: 60–200 mm
Design Features
- Double-ended tandem arrangement with pressurized barrier gas provides dual containment for hazardous and toxic media.
- Split-clamp cartridge enables installation and removal without dismantling the mixer drive assembly.
- Designed for the high axial and radial shaft movements typical of large industrial mixers and reactors.
- Seal gas consumption monitoring enables early detection of face degradation, supporting predictive maintenance strategies.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SSiC/Carbon/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| DGS-M2 | SSiC/Carbon/Viton/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
0 ~ 2.5 MPa
Temperature
-30 ~ 250 ºC
Linear Speed
15 m/s or less
Mediums
Hazardous chemicals, toxic gases, flammable solvents, reactor intermediates. Shaft diameter range: 60–200 mm.
Customization Available
Available with split-clamp installation and custom barrier gas configurations. Contact us with your requirements.
