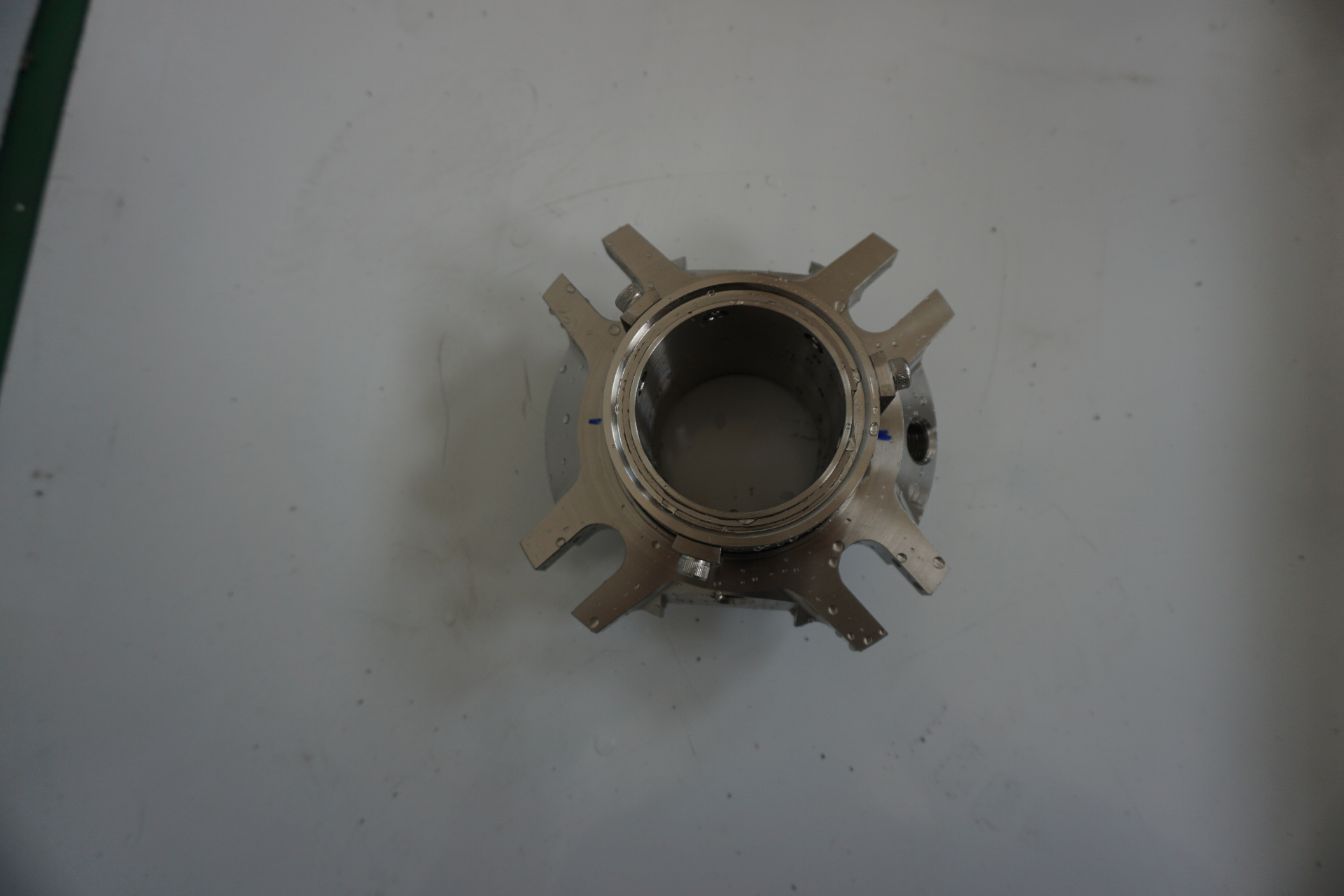

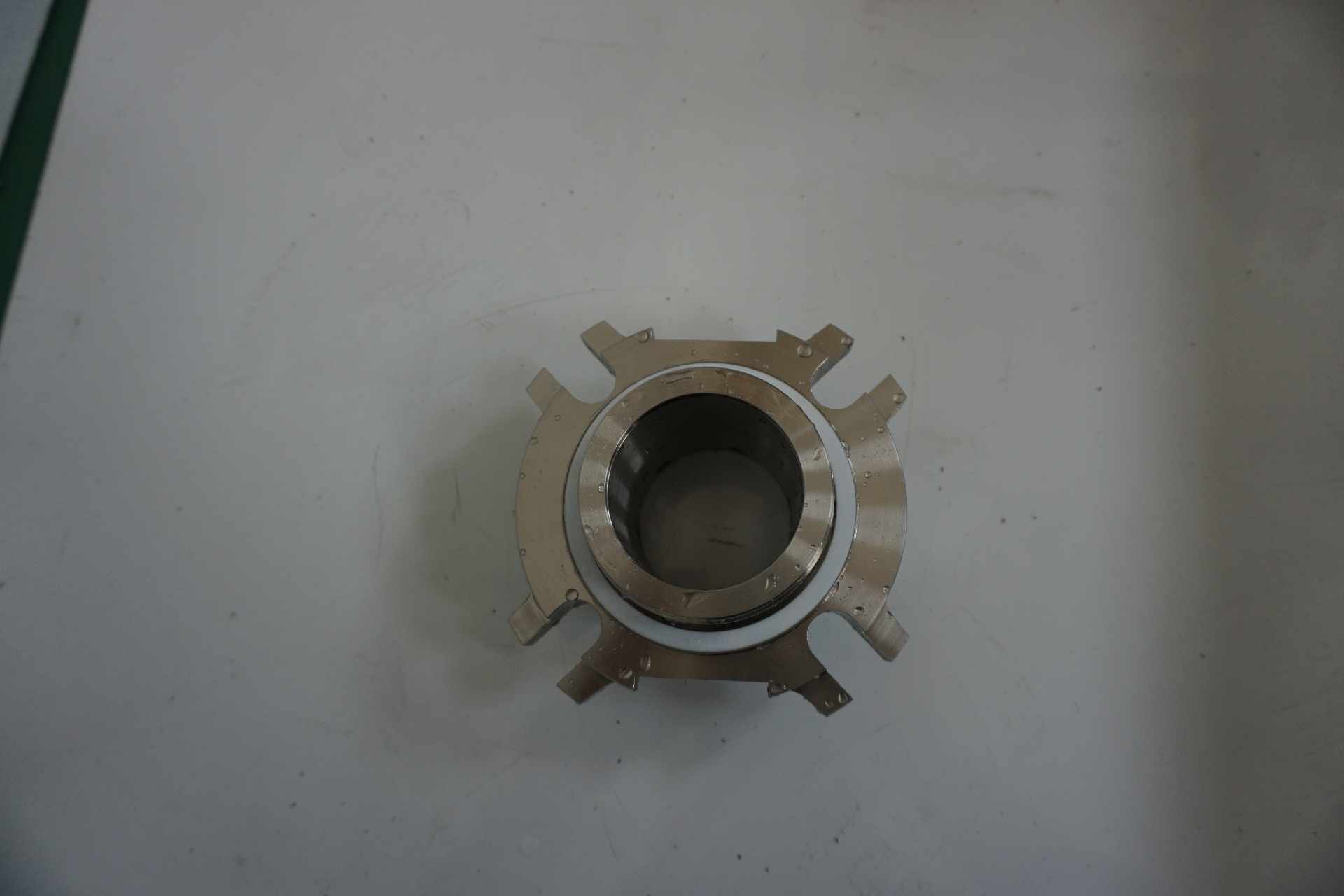

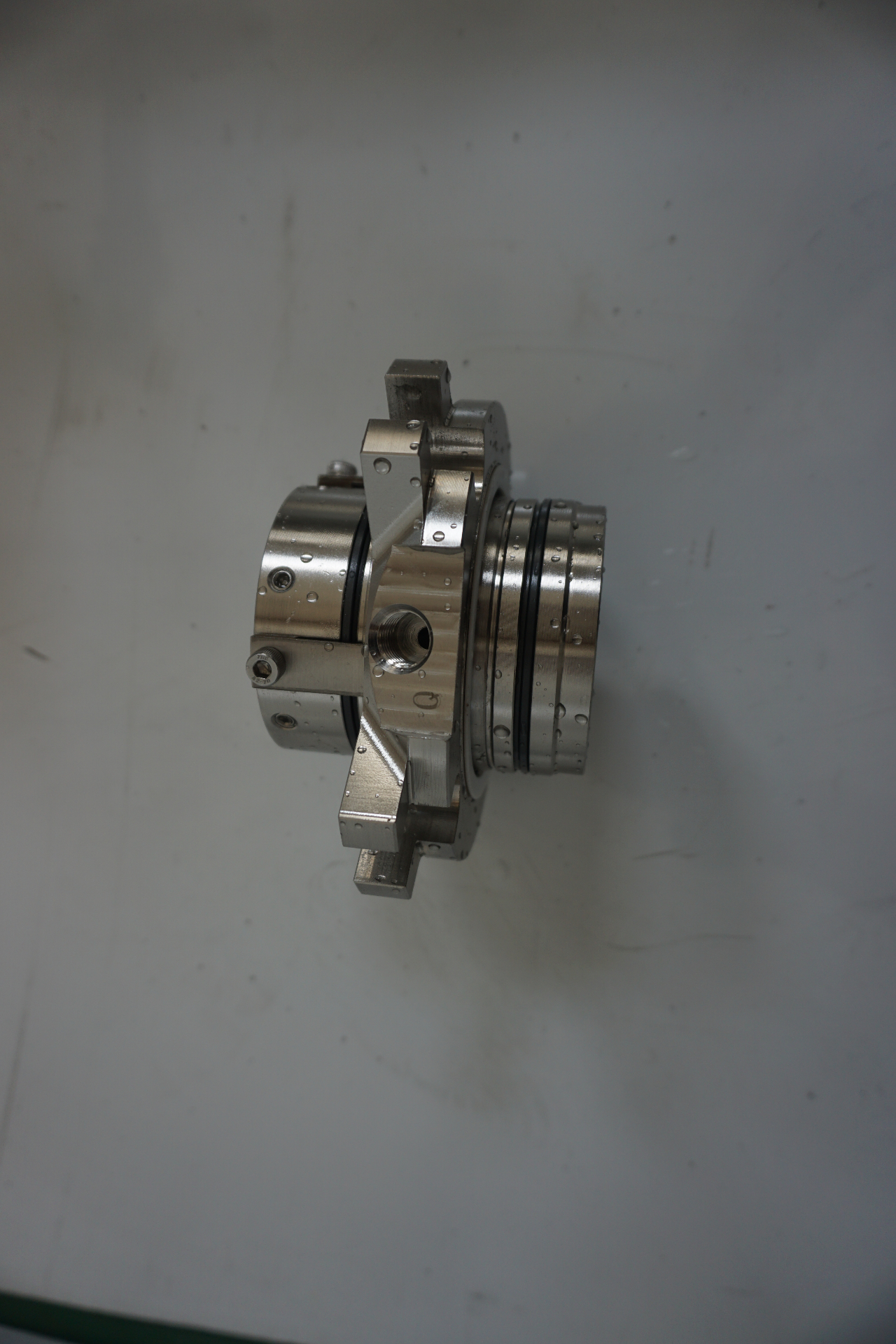

AS DISP-55
Double Stationary Seal with Pumping Scroll. Efficient bi-directional pumping circulates barrier fluid for effective seal face cooling. Thin radial faces reduce heat generation. Sizes from 24mm to 85mm.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/HC276/SS316 - SiC/Carbon/Viton
1 Variant
| Model | Materials | GA |
|---|---|---|
| DISP-55 | SiC/SiC/Viton/HC276/SS316 - SiC/Carbon/Viton | — |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Chemicals, solvents, industrial process fluids. Double-end cartridge seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
