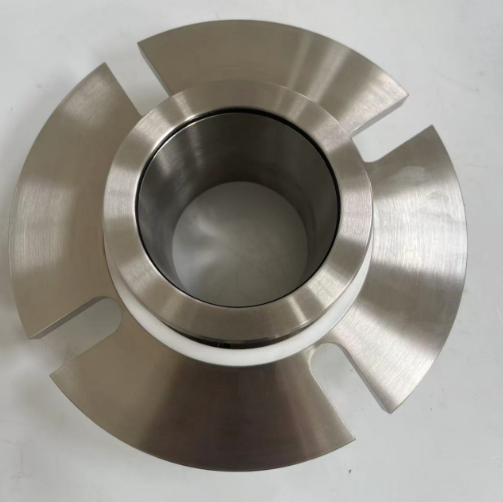

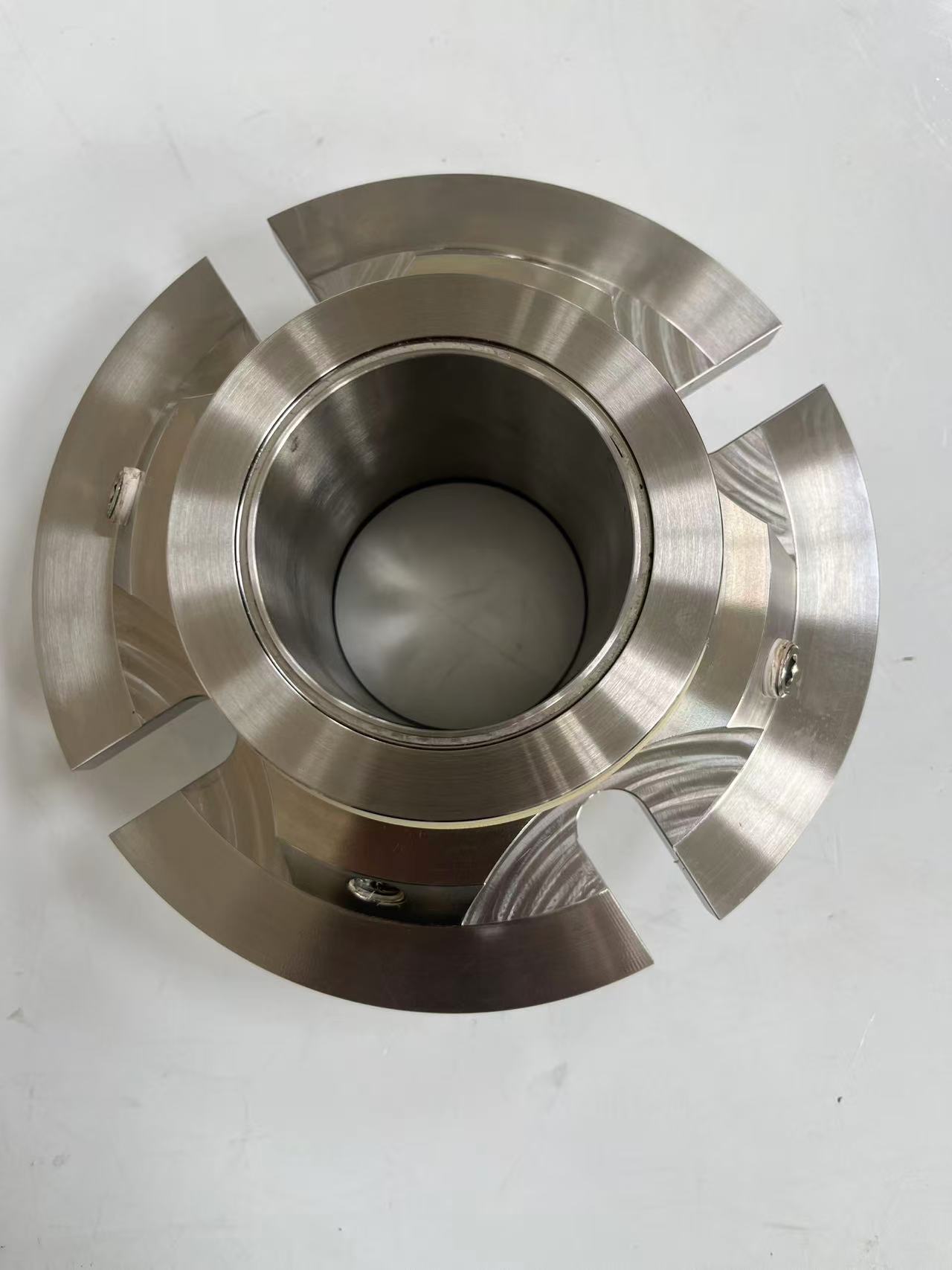

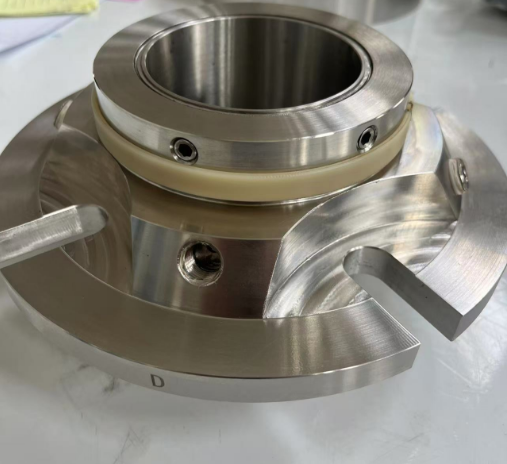

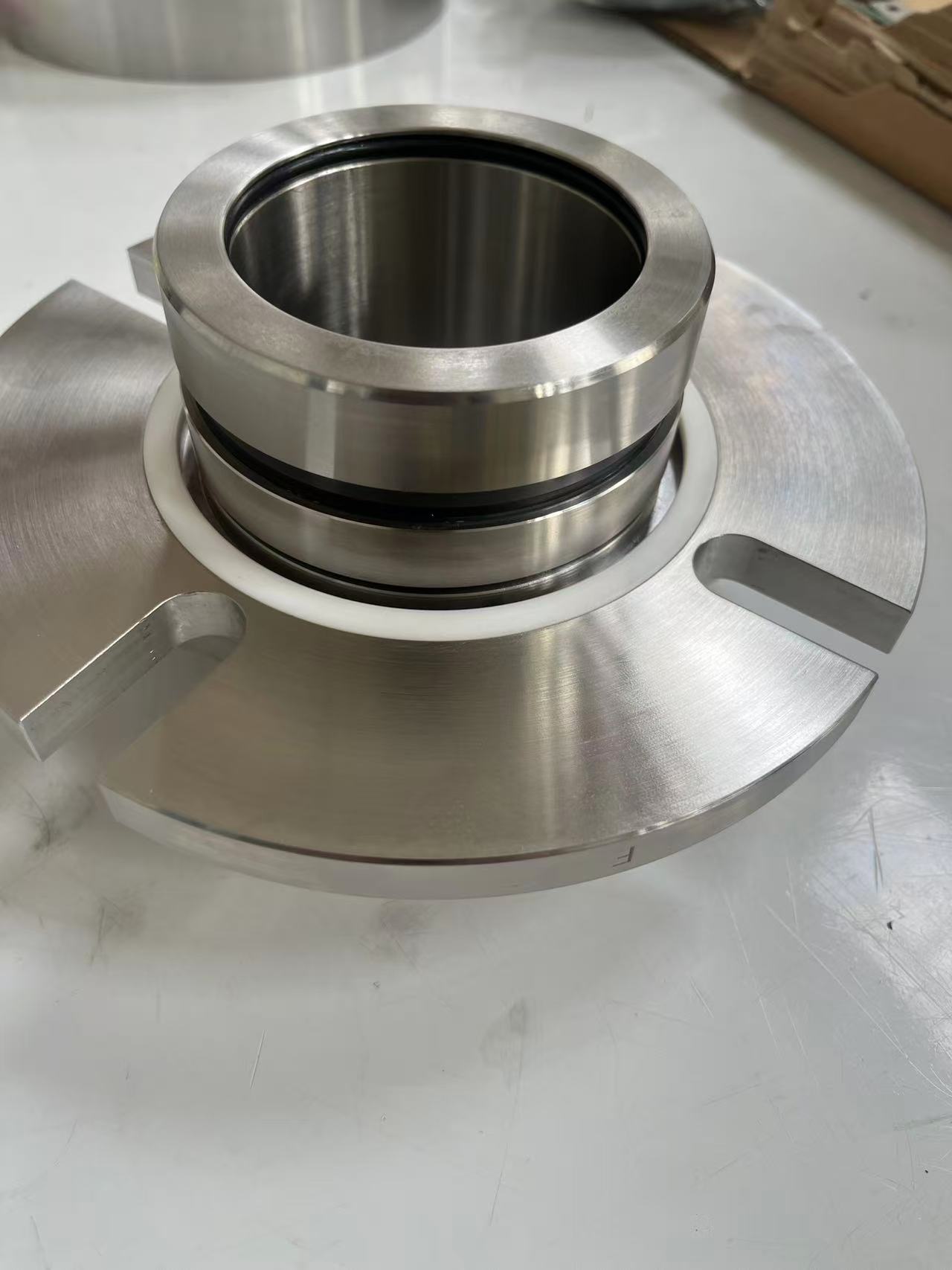

AS FFET-75
The compact FFET cartridge seal fits all ANSI and DIN stuffing boxes. Ideal upgrade from packing. Robust design for chemicals, oil, water, and abrasive/crystallizing duties. Premium seal face materials ensure low heat generation and dry-running thermal stability.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/Carbon/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| FFET-75 | SiC/Carbon/Viton/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, chemicals, process fluids.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
