AS FR-BDG

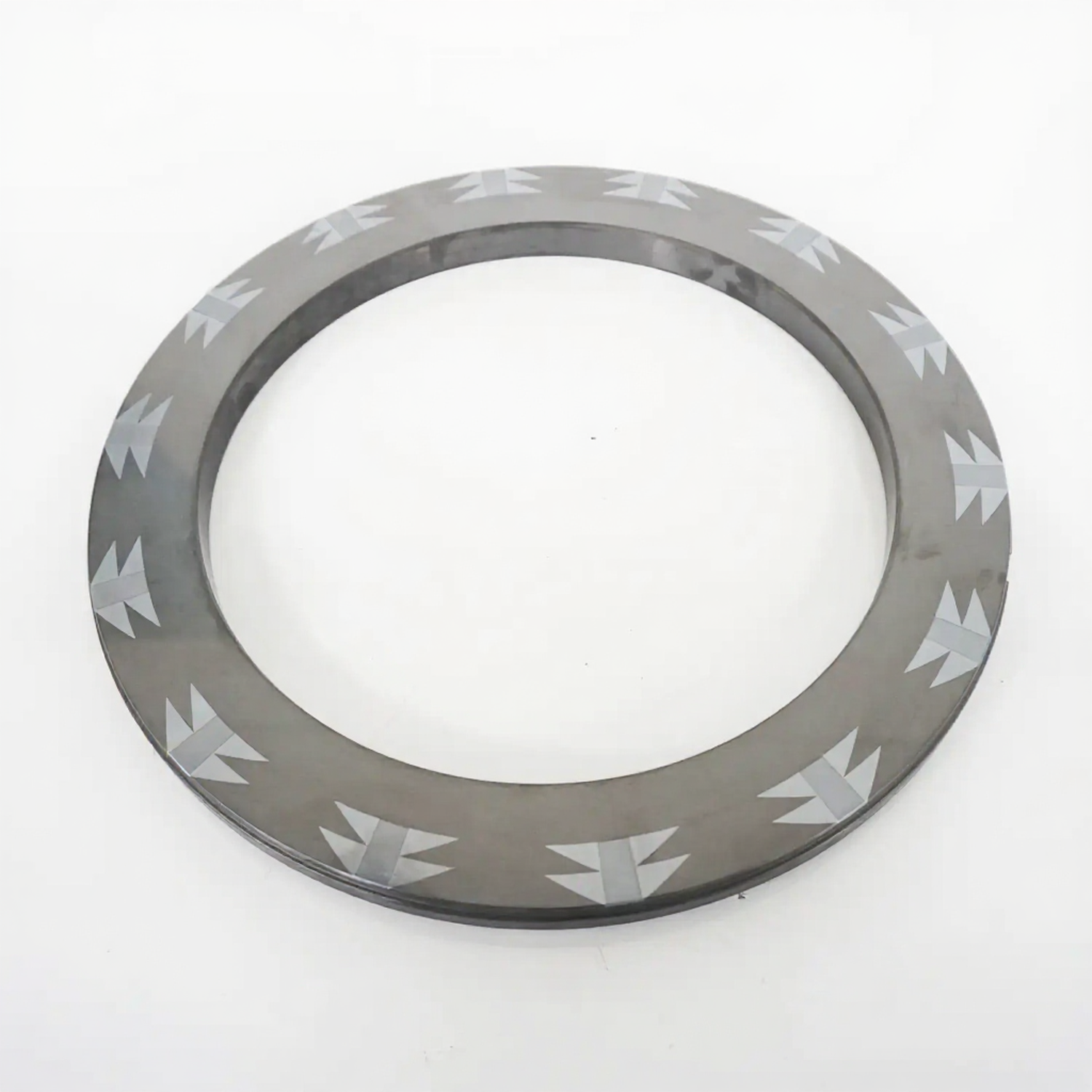

Bi-directional groove pattern face ring for dry gas seals. Precision-machined grooves enable gas film generation regardless of shaft rotation direction.
Technical Specifications
- Material: Tungsten Carbide (TC)
- Groove Pattern: Bi-directional (T-groove or herringbone)
- Surface Finish: Ra ≤0.1 μm on sealing face
- Flatness: ≤0.9 μm (2 light bands)
- Applicable Pressure: Up to 18 MPa
- Applicable Speed: Up to 150 m/s linear velocity
Design Features
- Bi-directional groove geometry generates lifting force in both clockwise and counter-clockwise rotation, eliminating the need for rotation-specific parts.
- Tungsten Carbide substrate provides maximum hardness (HRA ≥90) and wear resistance for demanding compressor services.
- Precision laser or photochemical etching ensures consistent groove depth and geometry for reliable gas film stiffness.
- Compatible with all AS DGS seal assemblies as drop-in replacement face rings.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Tungsten Carbide
1 Variant
| Model | Materials | GA |
|---|---|---|
| FR-BDG | Tungsten Carbide | — |
Operating Conditions & Materials
Pressure
0 ~ 18 MPa
Temperature
-196 ~ 315 ºC
Linear Speed
150 m/s or less
Mediums
Applicable to all dry gas seal media. Bi-directional groove pattern supports clockwise, counter-clockwise, and reversing rotation.
Customization Available
Available in custom diameters, groove depths, and material grades. Contact us with your specifications.
