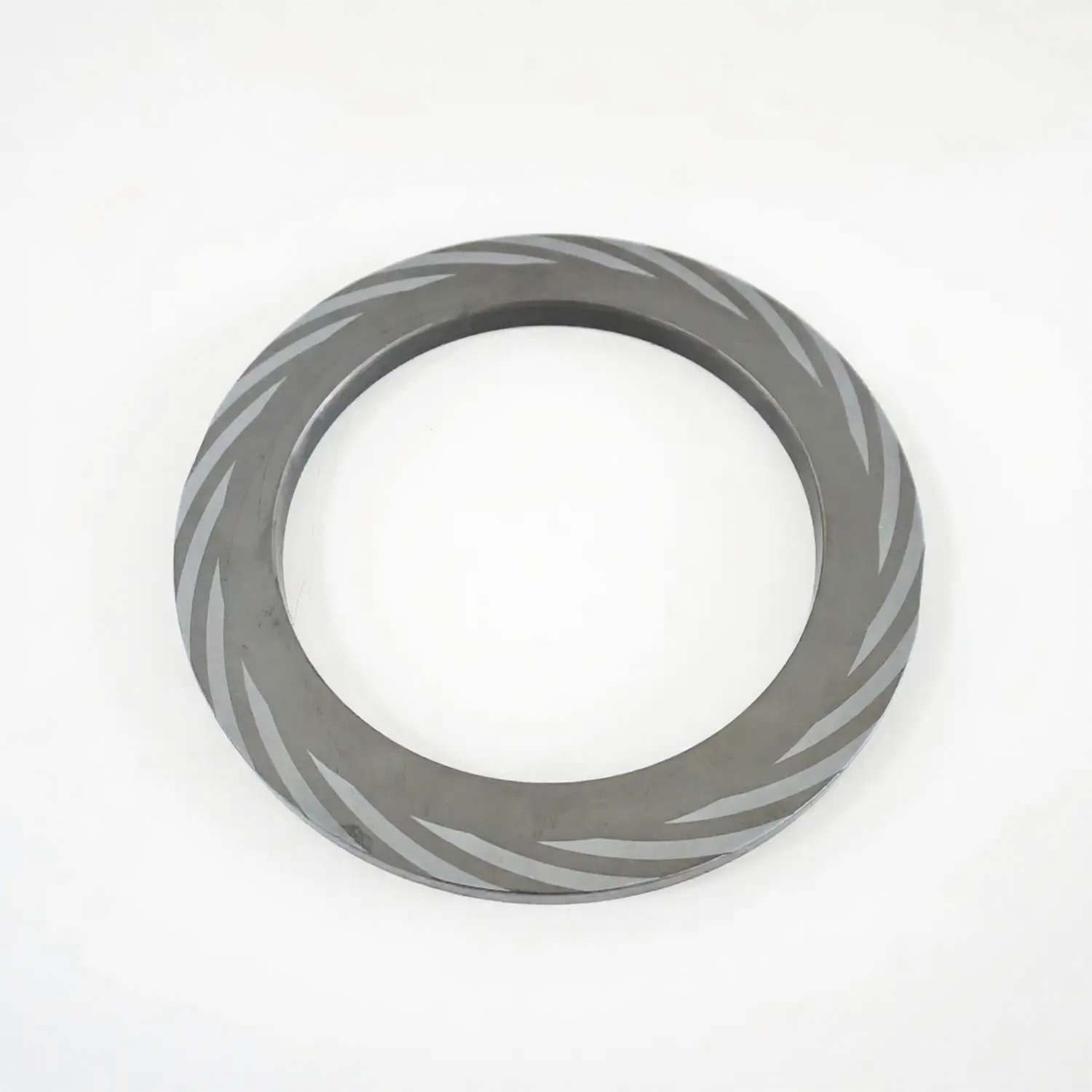

AS FR-SPG-C
Carbon spiral groove face ring for dry gas seals. Lightweight carbon construction with precision-machined spiral grooves for optimal gas film generation.
Technical Specifications
- Material: Resin-impregnated Carbon
- Groove Pattern: Logarithmic spiral
- Surface Finish: Ra ≤0.2 μm on sealing face
- Flatness: ≤0.9 μm (2 light bands)
- Applicable Pressure: Up to 10 MPa
- Applicable Speed: Up to 100 m/s linear velocity
Design Features
- Carbon's self-lubricating properties provide inherent dry-running capability during transient start-up and shutdown phases.
- Low coefficient of friction minimizes heat generation during momentary face contact events.
- Excellent thermal shock resistance — tolerates rapid temperature changes without cracking.
- Typically used as the stationary (mating) face ring paired with SSiC or TC rotating rings.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon
1 Variant
| Model | Materials | GA |
|---|---|---|
| FR-SPG-C | Carbon | — |
Operating Conditions & Materials
Pressure
0 ~ 10 MPa
Temperature
-100 ~ 250 ºC
Linear Speed
100 m/s or less
Mediums
Applicable to all dry gas seal media. Carbon face rings typically used as stationary mating rings paired with SSiC or TC rotating rings.
Customization Available
Available in custom diameters, carbon grades, and groove configurations. Contact us with your specifications.
