AS FR-SPG-TC

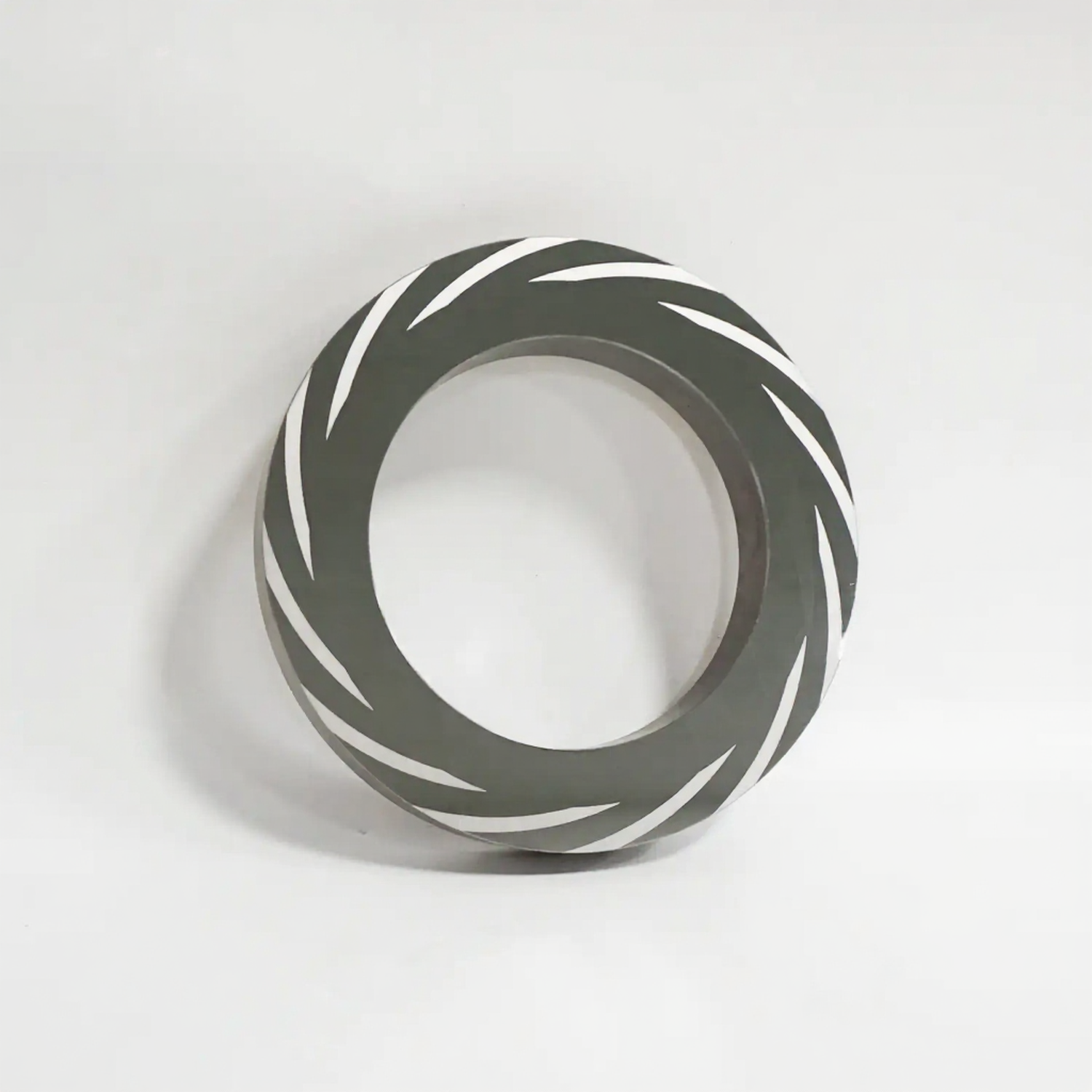

Tungsten Carbide spiral groove face ring for dry gas seals. Superior hardness and wear resistance with precision spiral grooves for demanding high-pressure applications.
Technical Specifications
- Material: Tungsten Carbide (TC)
- Groove Pattern: Logarithmic spiral
- Surface Finish: Ra ≤0.1 μm on sealing face
- Flatness: ≤0.9 μm (2 light bands)
- Applicable Pressure: Up to 18 MPa
- Applicable Speed: Up to 150 m/s linear velocity
Design Features
- Tungsten Carbide provides the highest hardness (HRA ≥90) and wear resistance among DGS face ring materials — ideal for abrasive or high-pressure gas streams.
- Spiral groove pattern precision-machined to tight tolerances for consistent gas film stiffness and optimal stiffness-to-leakage ratio.
- Superior thermal conductivity dissipates frictional heat during transient contact events.
- Preferred material for high-pressure compressor DGS applications exceeding 10 MPa.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Tungsten Carbide
1 Variant
| Model | Materials | GA |
|---|---|---|
| FR-SPG-TC | Tungsten Carbide | — |
Operating Conditions & Materials
Pressure
0 ~ 18 MPa
Temperature
-196 ~ 315 ºC
Linear Speed
150 m/s or less
Mediums
Applicable to all dry gas seal media. Preferred for high-pressure compressor applications exceeding 10 MPa.
Customization Available
Available in custom diameters, groove depths, and surface finishes. Contact us with your specifications.
