AS GF200

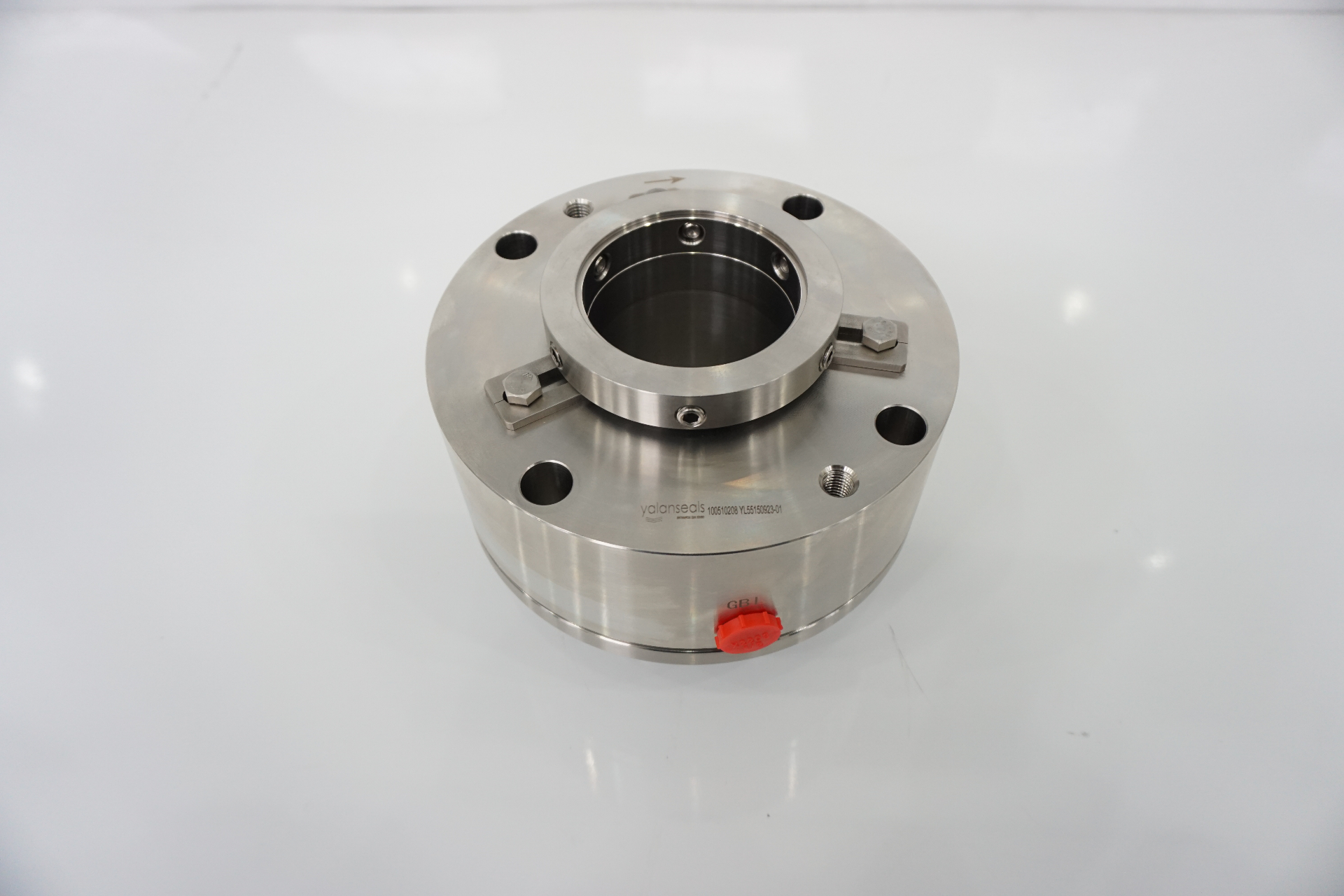

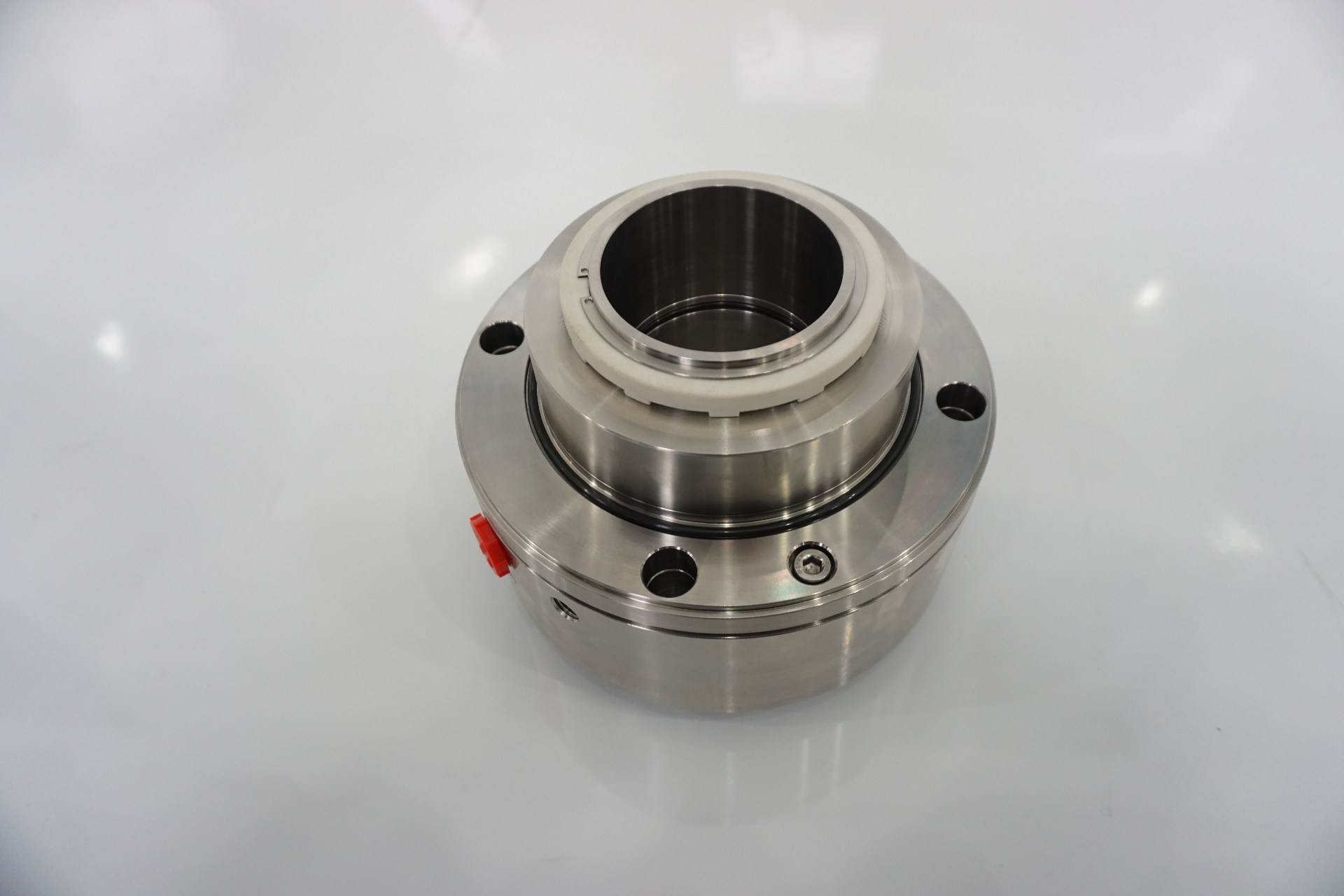

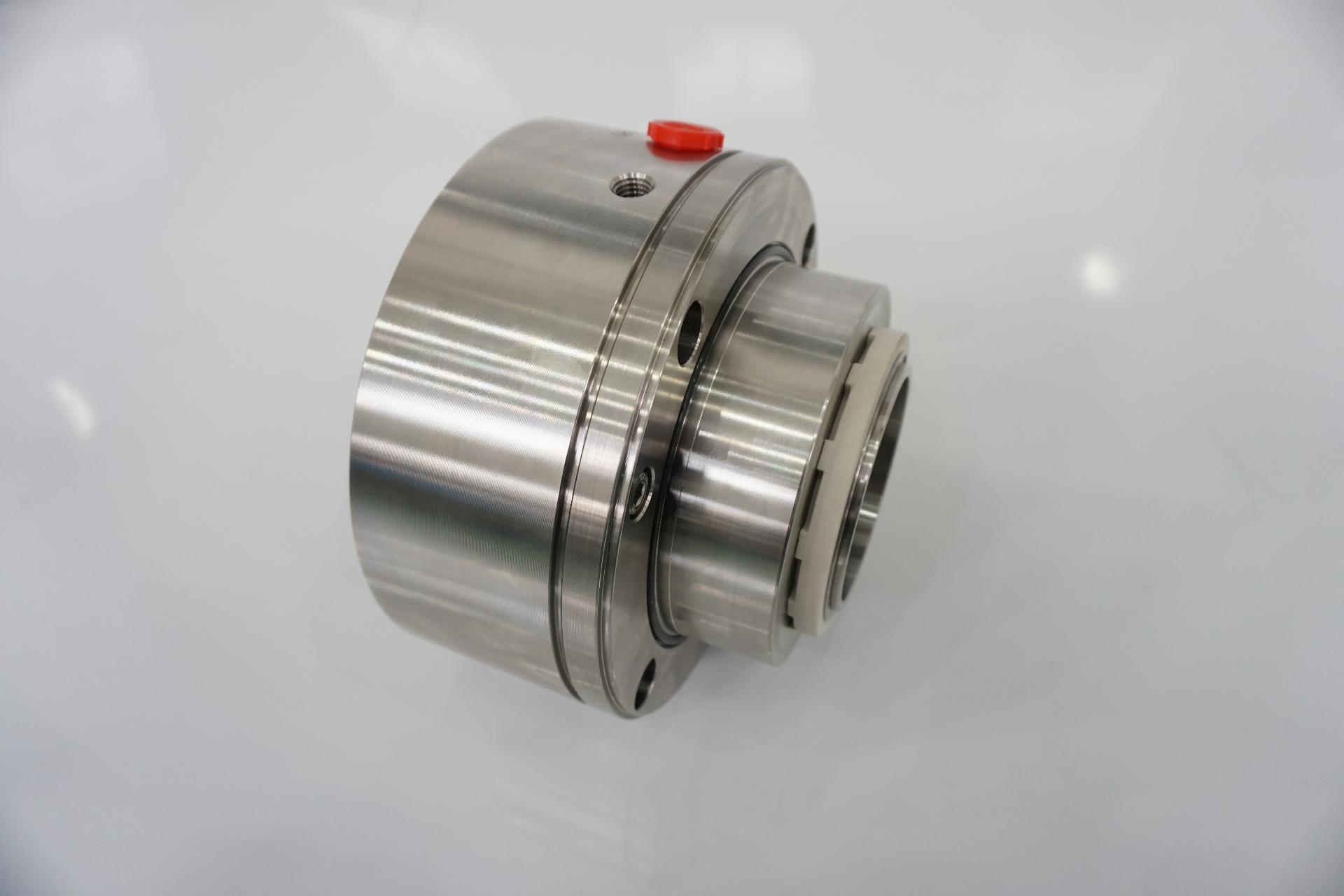

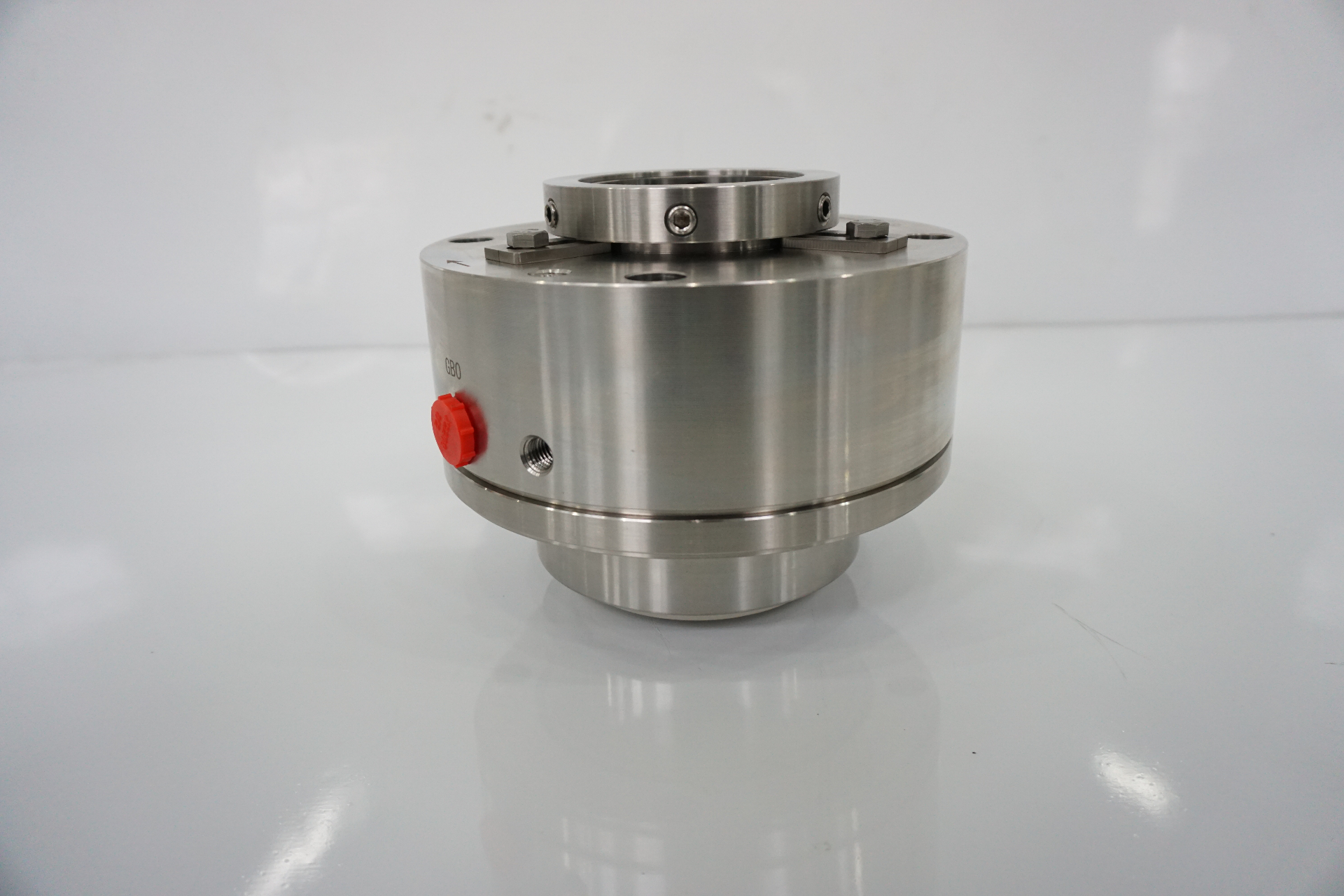

GF200 Series Double-ended DGS for Pumps — The seal adopts a cartridge structure, which can meet the installation requirements of various sealing chambers.
Technical Specifications
- Pressure: 3.45 MPa
- Temperature: 0 to 260 °C
- Rotation Speed: 250 to 5000 r/min
- Medium: Water, Methane
Design Features
- Deploys a double-balanced structure to ensure no leakage of process gas in the event of a seal malfunction.
- Compact axial dimensions of the seal, making it particularly suitable for centrifugal pumps with short seal chamber lengths.
- The seal support system adopts API Plan 74.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/Carbon/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| GF200 | SiC/Carbon/Viton/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
0 ~ 3.45 MPa
Temperature
0 ~ 260 ºC
Linear Speed
40 m/s or less
Mediums
Water, methane, light hydrocarbons and process gases. API Plan 74 seal support system.
Customization Available
Available in multiple sizes with material options for corrosive or high-temperature services. Contact us with your requirements.
Related Products

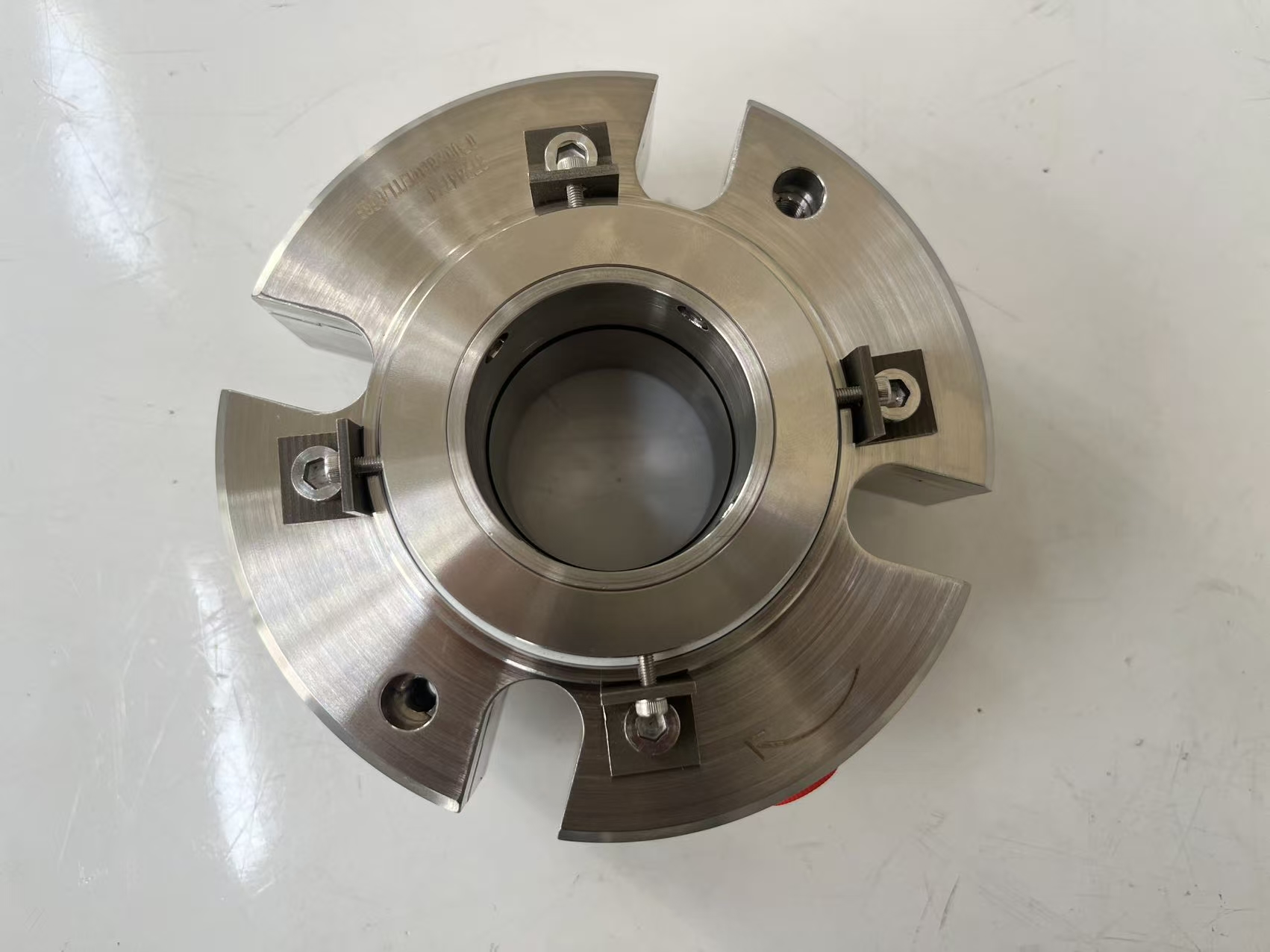

AS 2800E
The seal adopts a cartridge structure, which can meet the installation requirements of various sealing chambers.

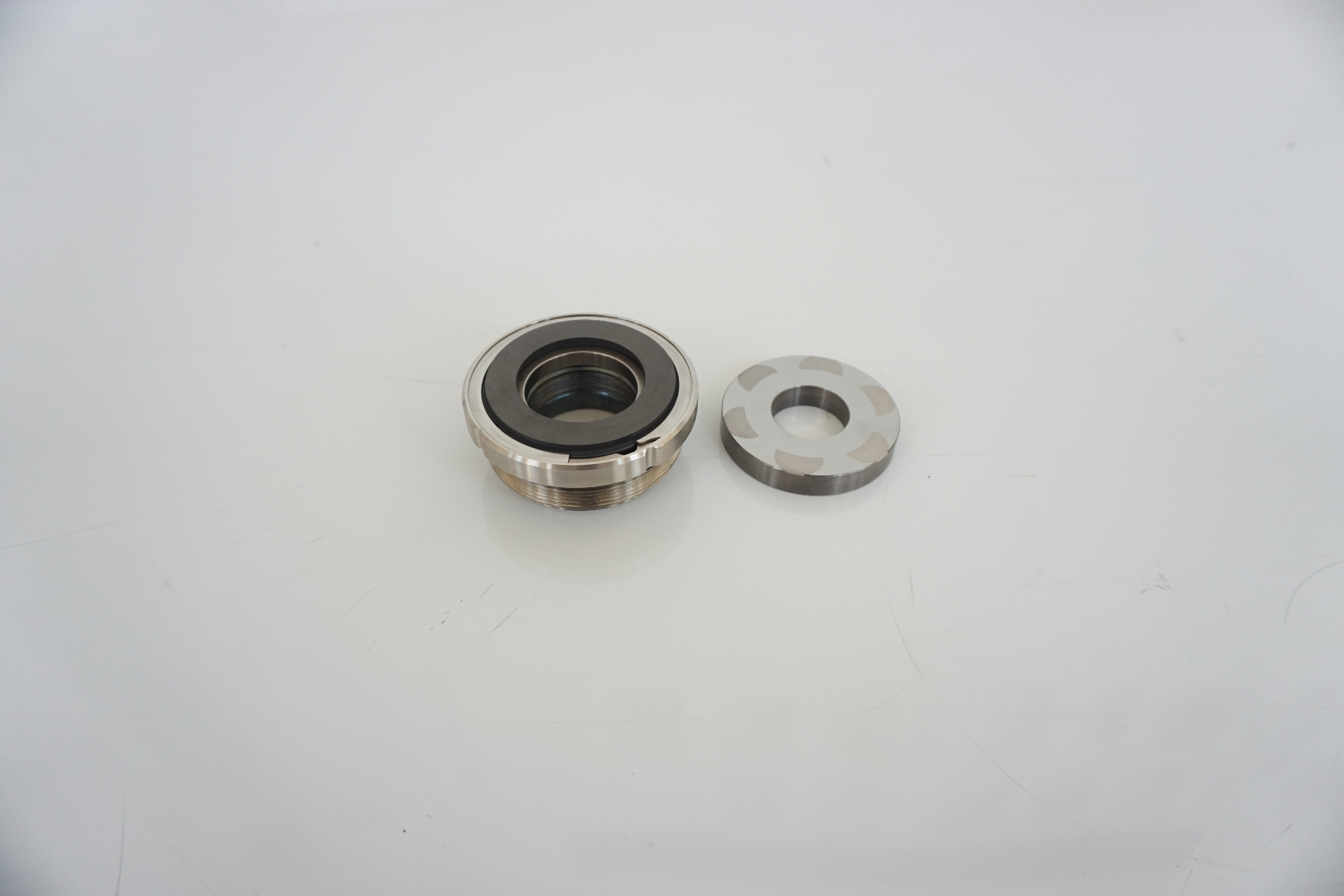

AS JC DGS B285-27
The Type 285 can safely seal the most common industrial liquid gasses, such as liquid nitrogen, oxygen, argon and carbon dioxide.

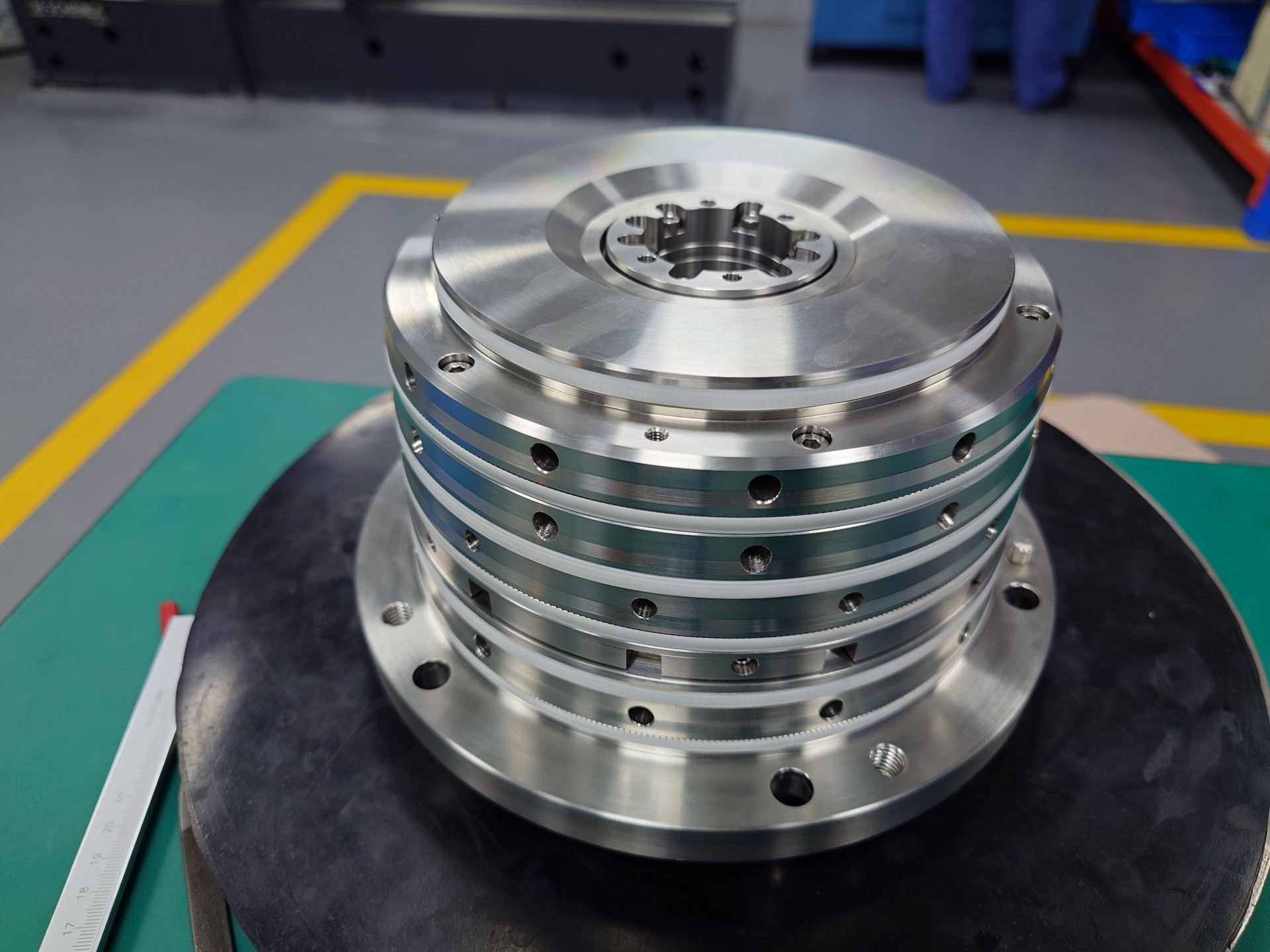

AS GASPAC-L-21
