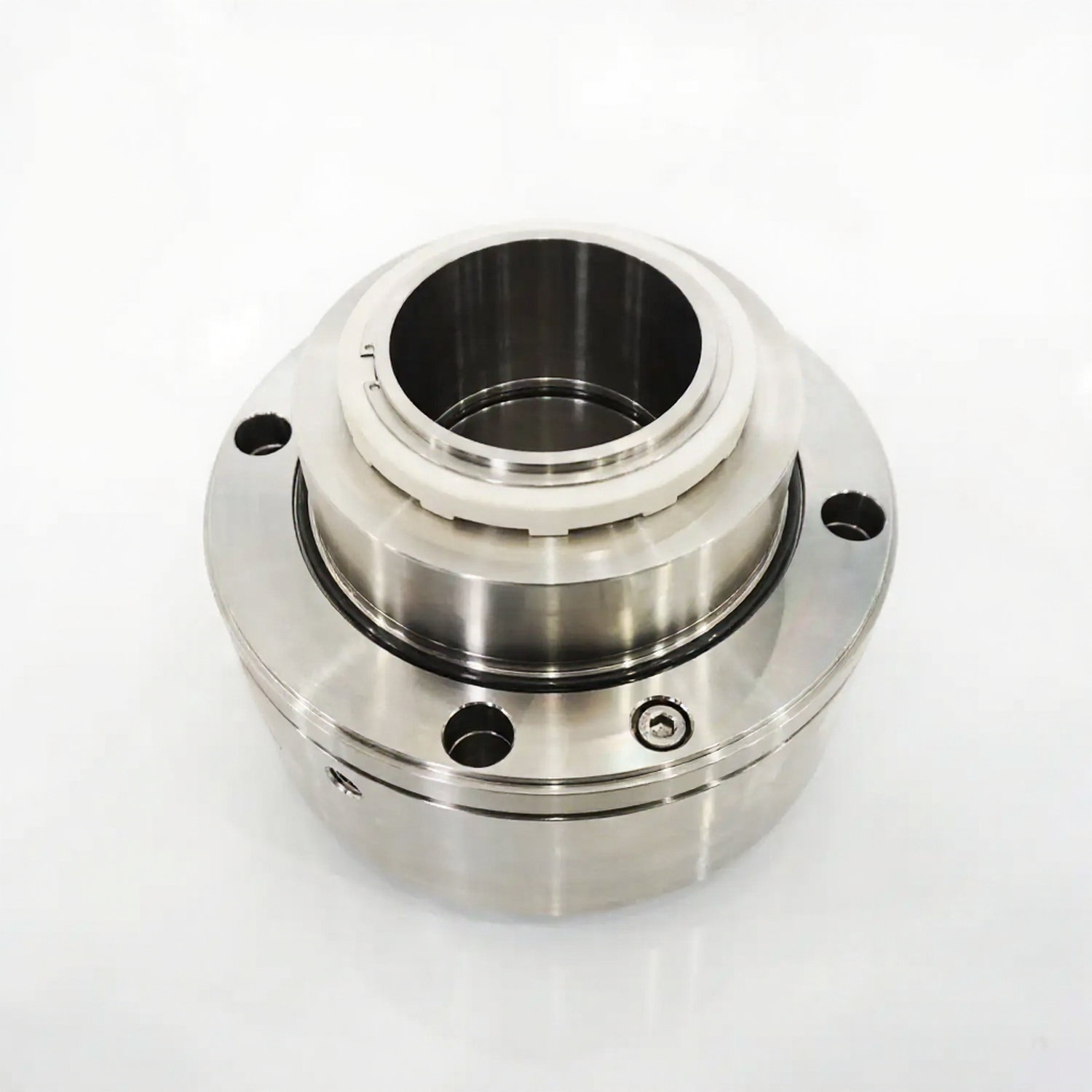

AS GF200-P
Pump-optimized variant of the GF200 dry gas seal. Cartridge design with spiral-grooved technology for non-contacting gas film operation, tailored for pump sealing requirements.
Technical Specifications
- Pressure: ≤3.45 MPa
- Temperature: 0 to 260 °C
- Rotation Speed: 250 to 5000 r/min
- Medium: Water, methane, light hydrocarbons
Design Features
- Double-balanced cartridge structure equivalent to Flowserve GF200 series.
- Spiral-grooved rotating face for reliable gas film generation across the full speed range.
- Optimized for pump seal chambers with compact axial dimensions.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/Carbon/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| GF200-P | SiC/Carbon/Viton/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
0 ~ 3.45 MPa
Temperature
0 ~ 260 ºC
Linear Speed
40 m/s or less
Mediums
Water, methane, light hydrocarbons. Pump-optimized variant of GF200 series.
Customization Available
Available in multiple sizes with material options for varied pump configurations. Contact us with your requirements.
