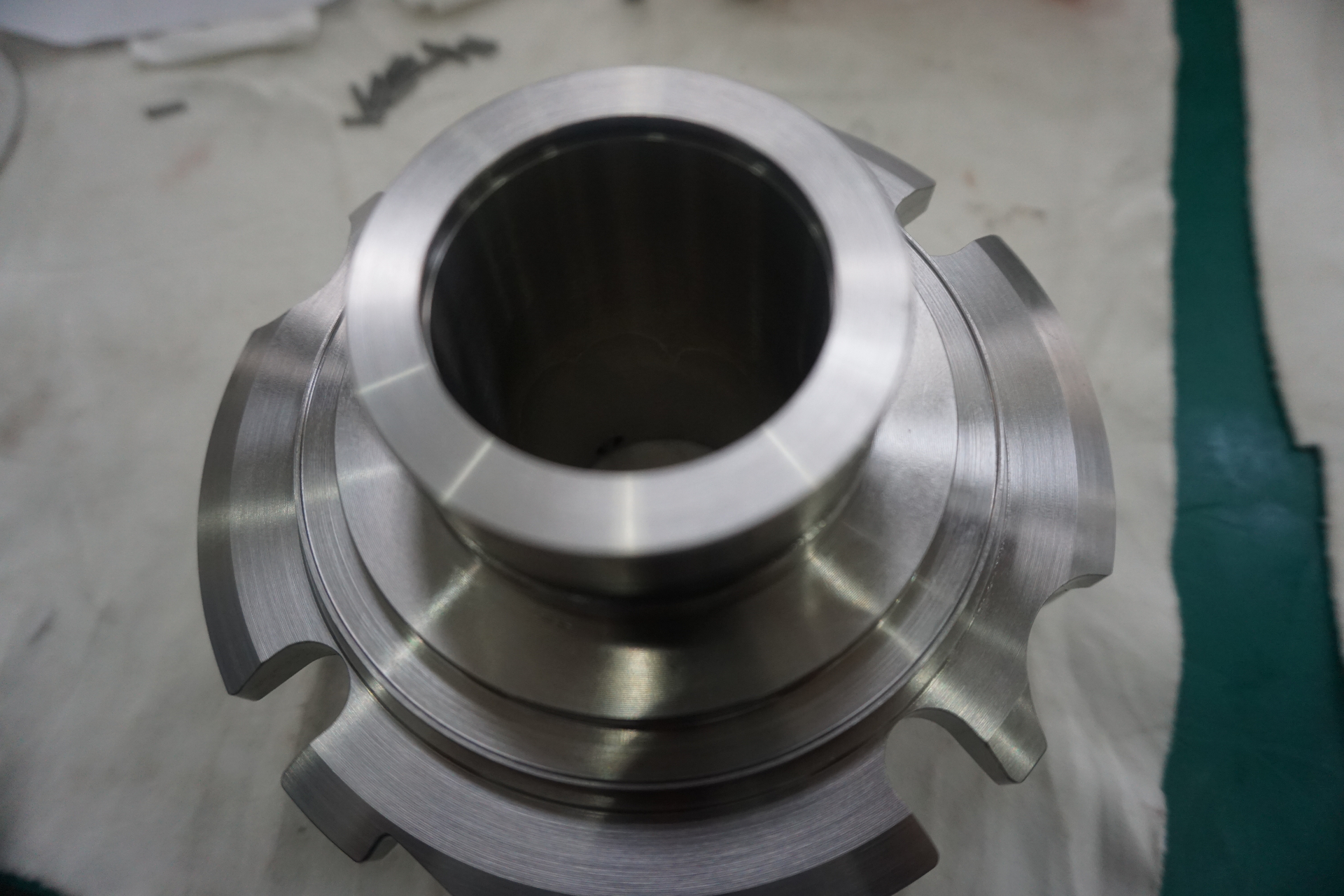

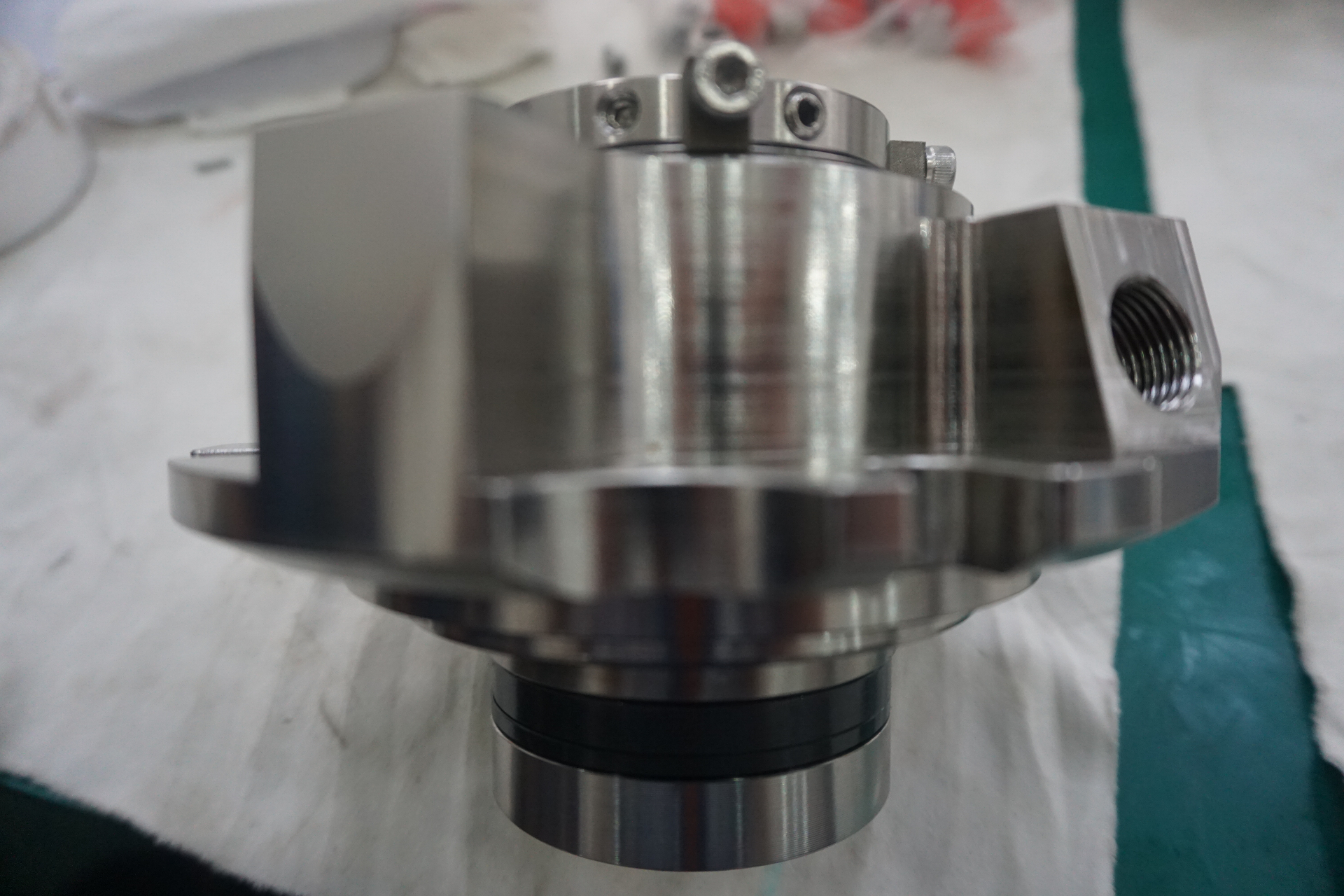

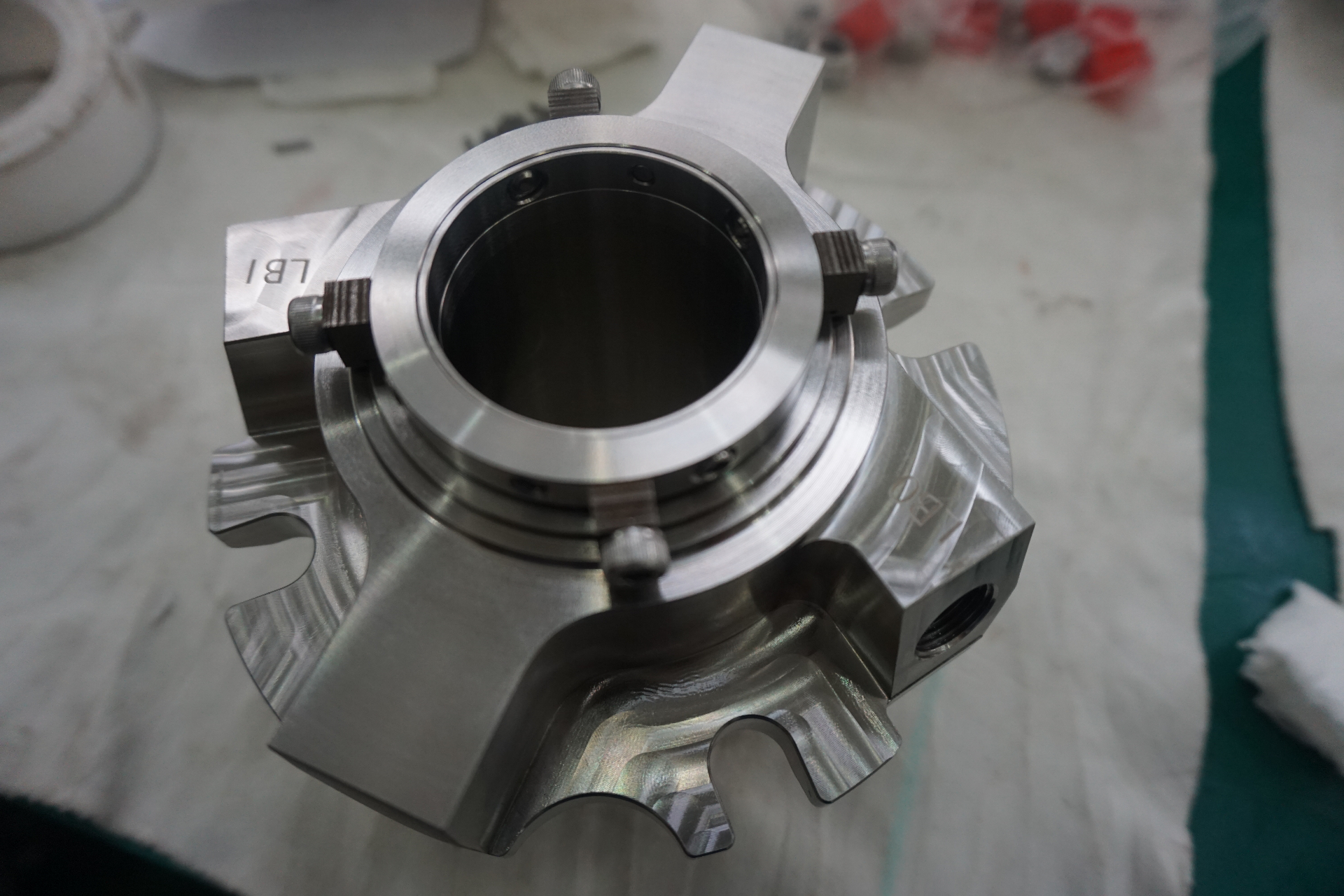

AS ISC2-PP-1.875
ISC2 Series provides exceptional reliability and standardization across industrial applications. Meets all major international standards, designed for hundreds of pump models. ISC2-PP is the double spring pusher cartridge.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM
1 Variant
| Model | Materials | GA |
|---|---|---|
| ISC2-PP-1.875 | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | — |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Paper pulp, water, sewage treatment fluids. Double-end cartridge seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
