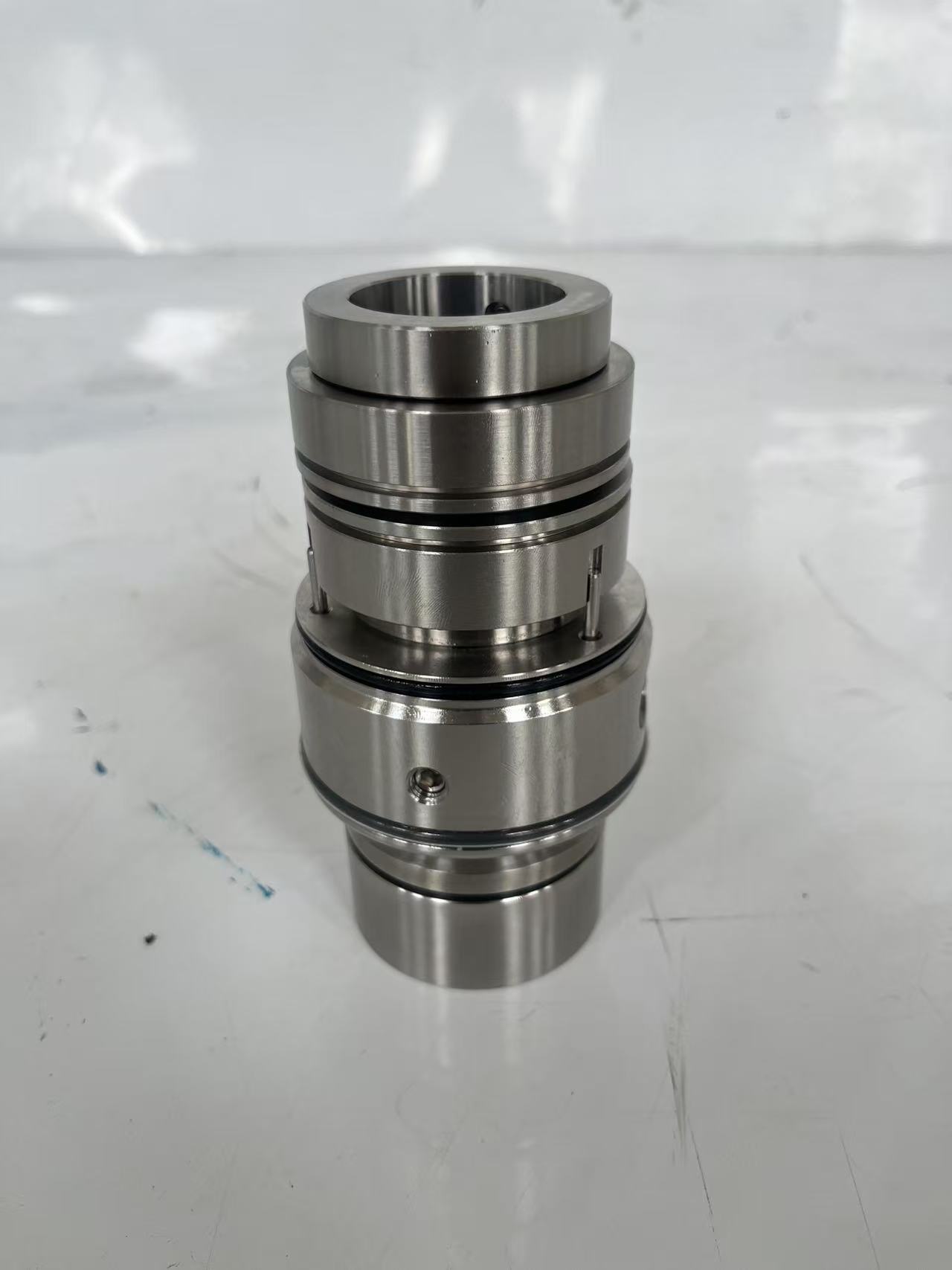

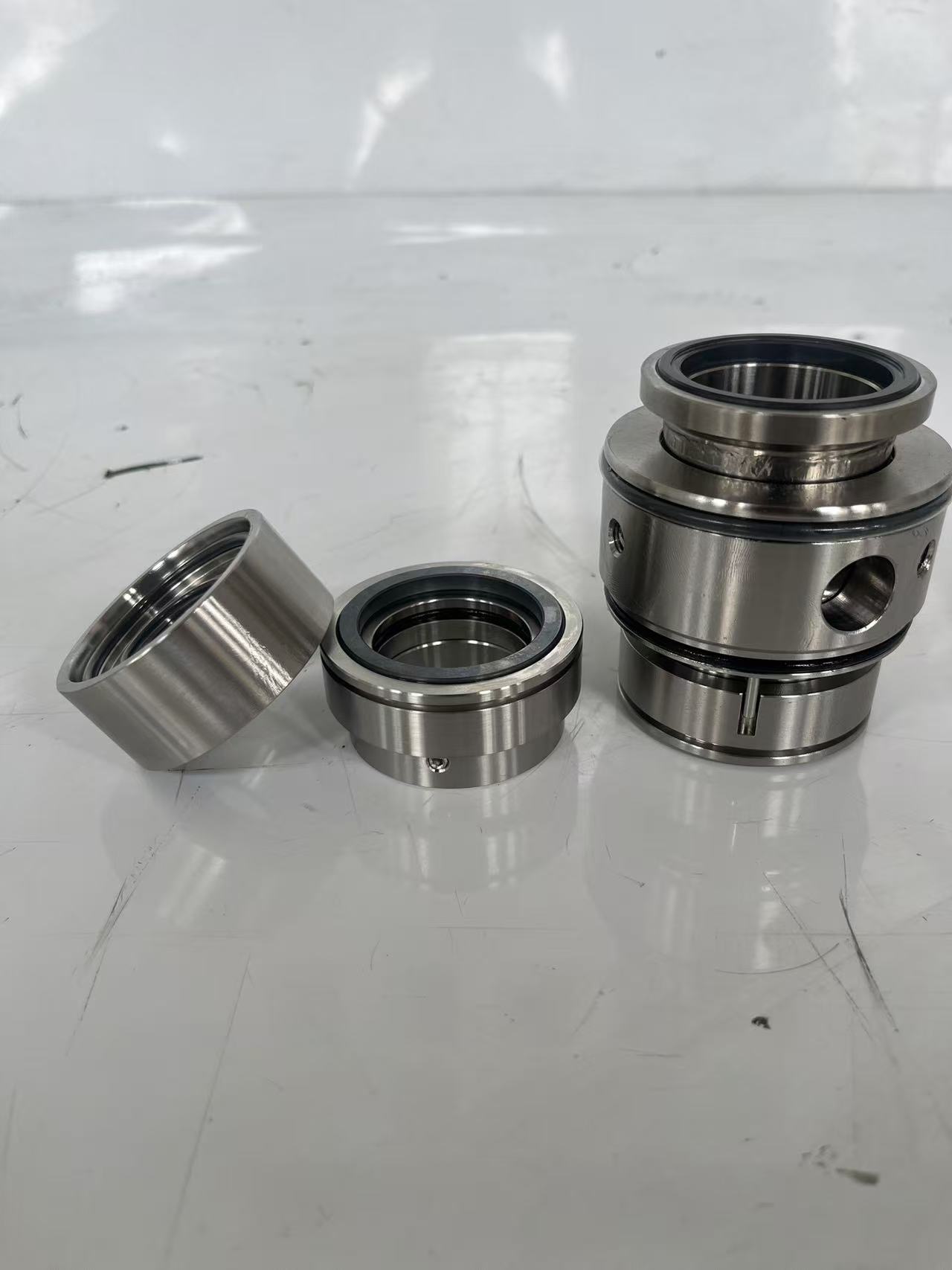

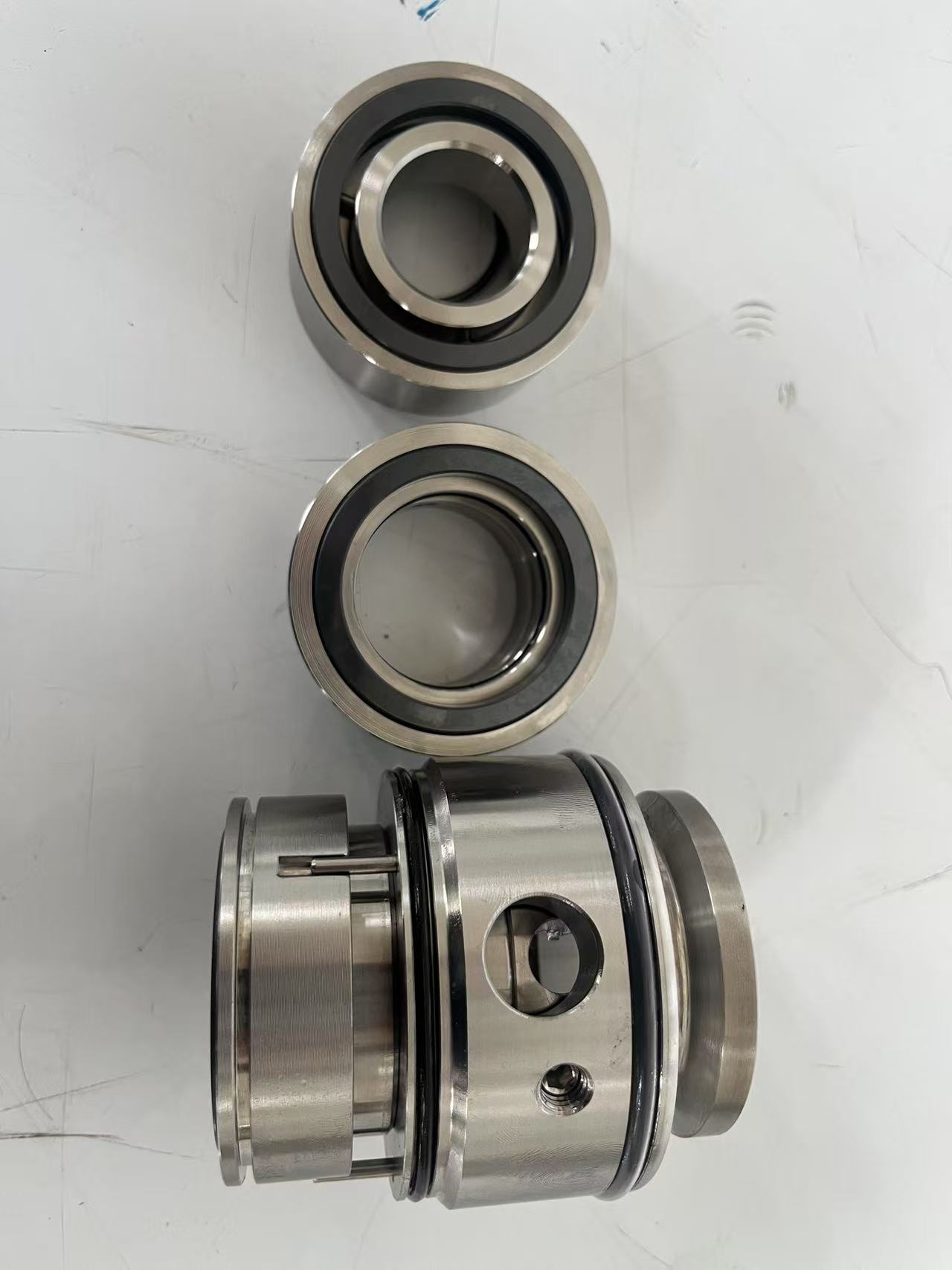

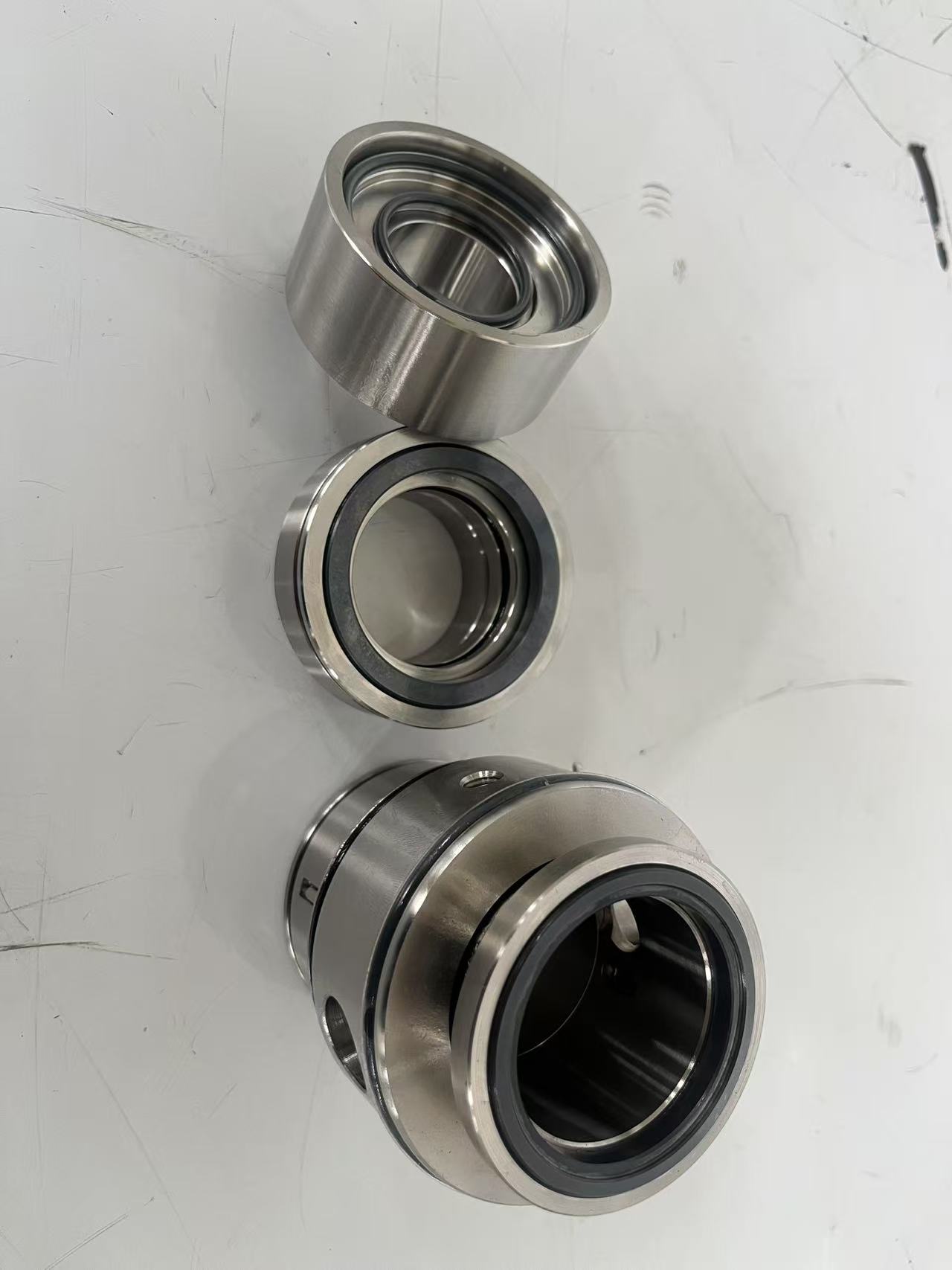

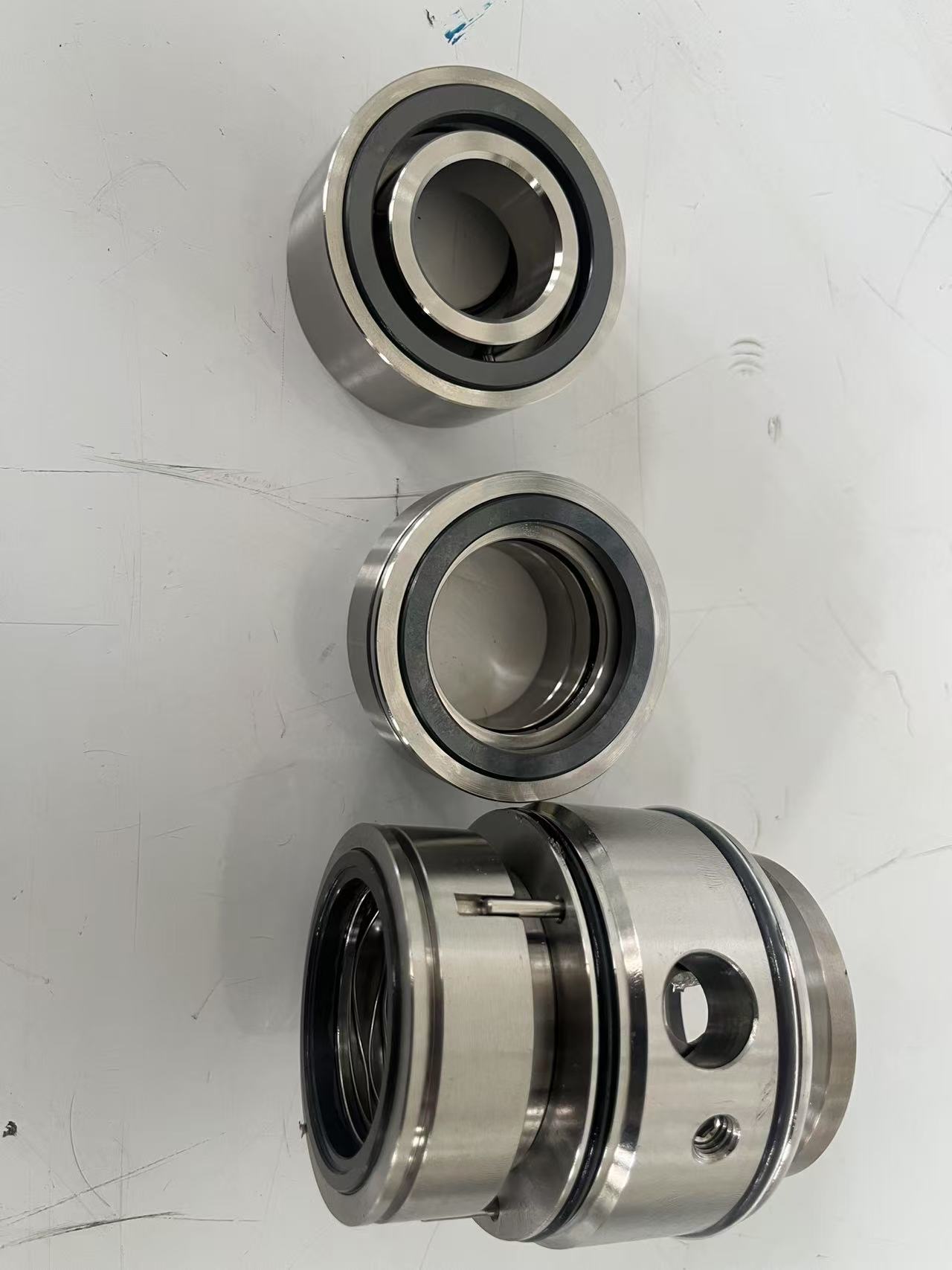

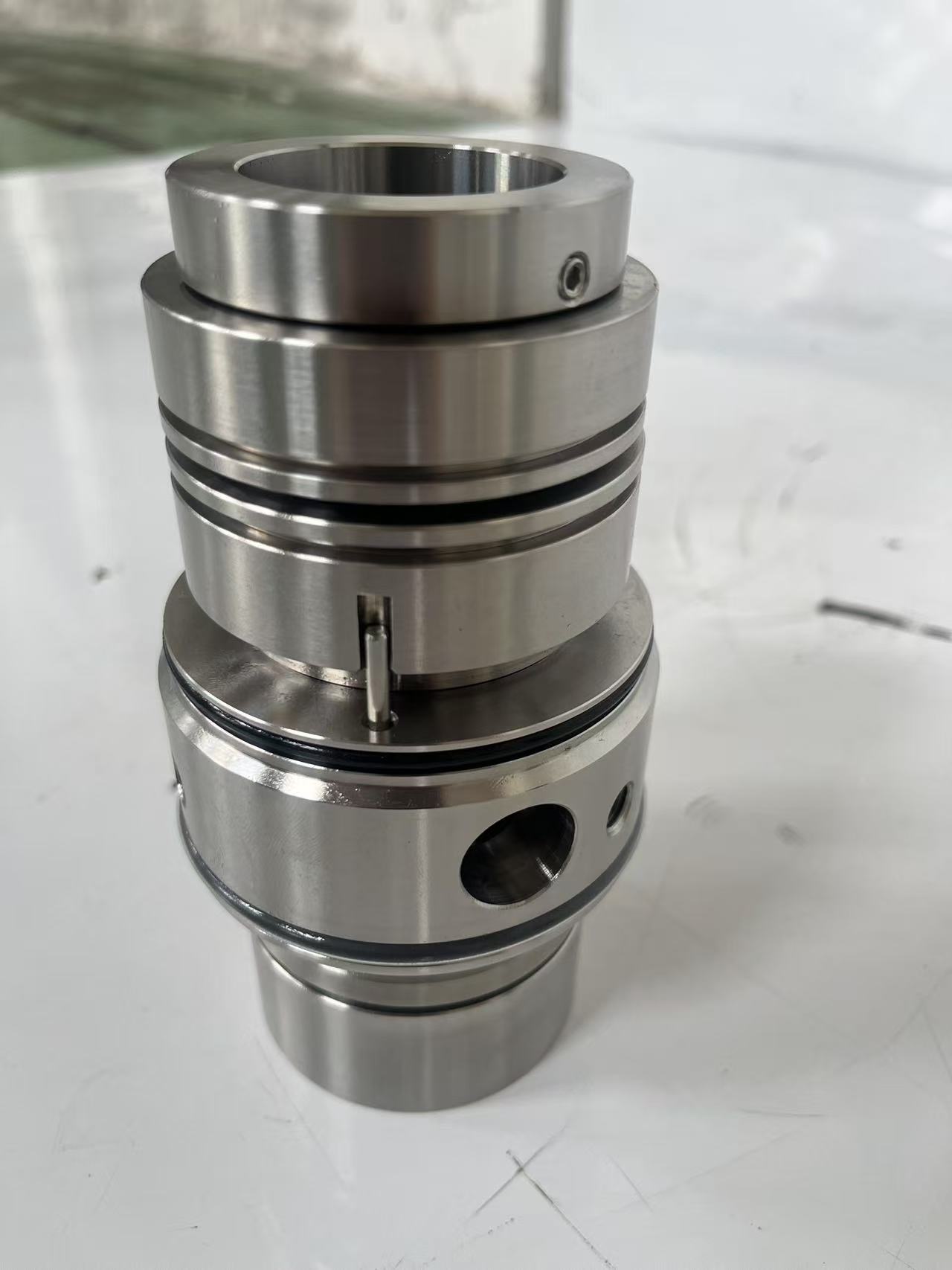

AS JCS2P-40-QRMQ-GA-309063-4-00
JCS2P — OEM engineered double external stationary spring O-ring mounted seal. Double-balanced design for both pressurized and non-pressurized sealant fluid.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/FEP/HC276/SS316 - SiC/SiC/EPDM
1 Variant
| Model | Materials | GA |
|---|---|---|
| JCS2P-40-QRMQ | SiC/SiC/FEP/HC276/SS316 - SiC/SiC/EPDM | GA-309063-4 |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Paper pulp, abrasive slurries, chemical processing fluids. Double-end pump integrated seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
