AS M3 (M37G)
Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps. Single end, unbalanced, conical spring, fixed direction of rotation, spring transmission. Simple structure, high compatibility and stable performance with great spring compensation. Inner diameter: 8 mm to 100 mm. Pressure: ≤1.0 MPa, Temperature: -20~180°C, Linear Speed: ≤10 m/s. Standards: DIN24960, ISO3069, GB6556.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/TC (Rotary) / Carbon/SiC/TC (Stationary) / NBR/Viton/EPDM/PTFE/FFKM (Elastomers) / SS304/SS316 (Springs) / 410S/SS304/SS316/SS316L (Metal Parts)
1 Variant
| Model | Materials | GA |
|---|---|---|
| M3 (M37G) | Carbon/SiC/TC (Rotary) / Carbon/SiC/TC (Stationary) / NBR/Viton/EPDM/PTFE/FFKM (Elastomers) / SS304/SS316 (Springs) / 410S/SS304/SS316/SS316L (Metal Parts) | — |
Operating Conditions & Materials
Pressure
1.0 MPa or less
Temperature
-20 ~ 180 ºC
Linear Speed
10 m/s or less
Mediums
Oil, water, amorphism acid, alkali, salt, and organic solvents.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

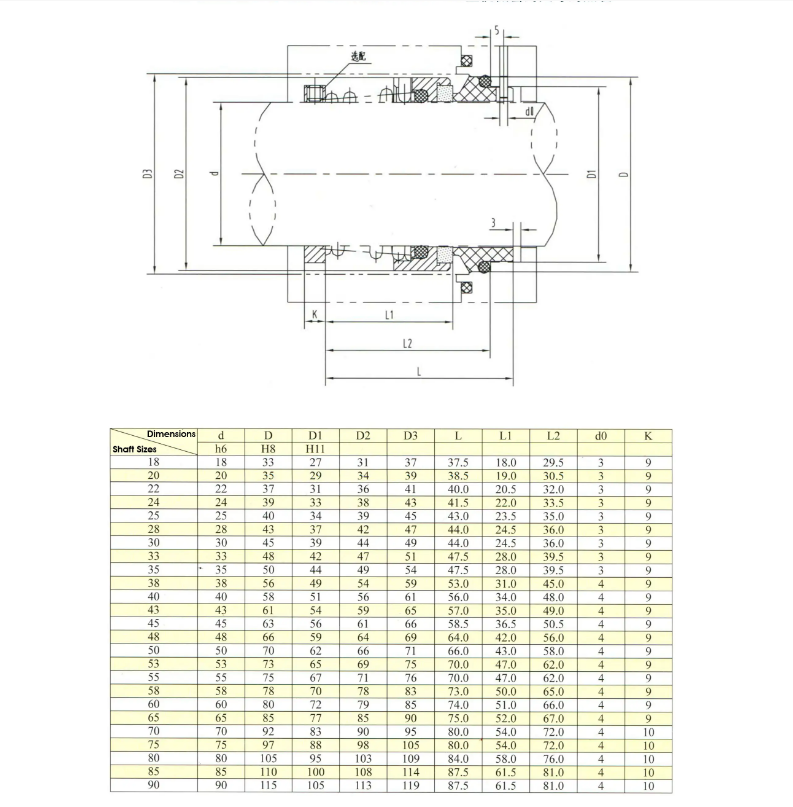

Installation Dimensions
