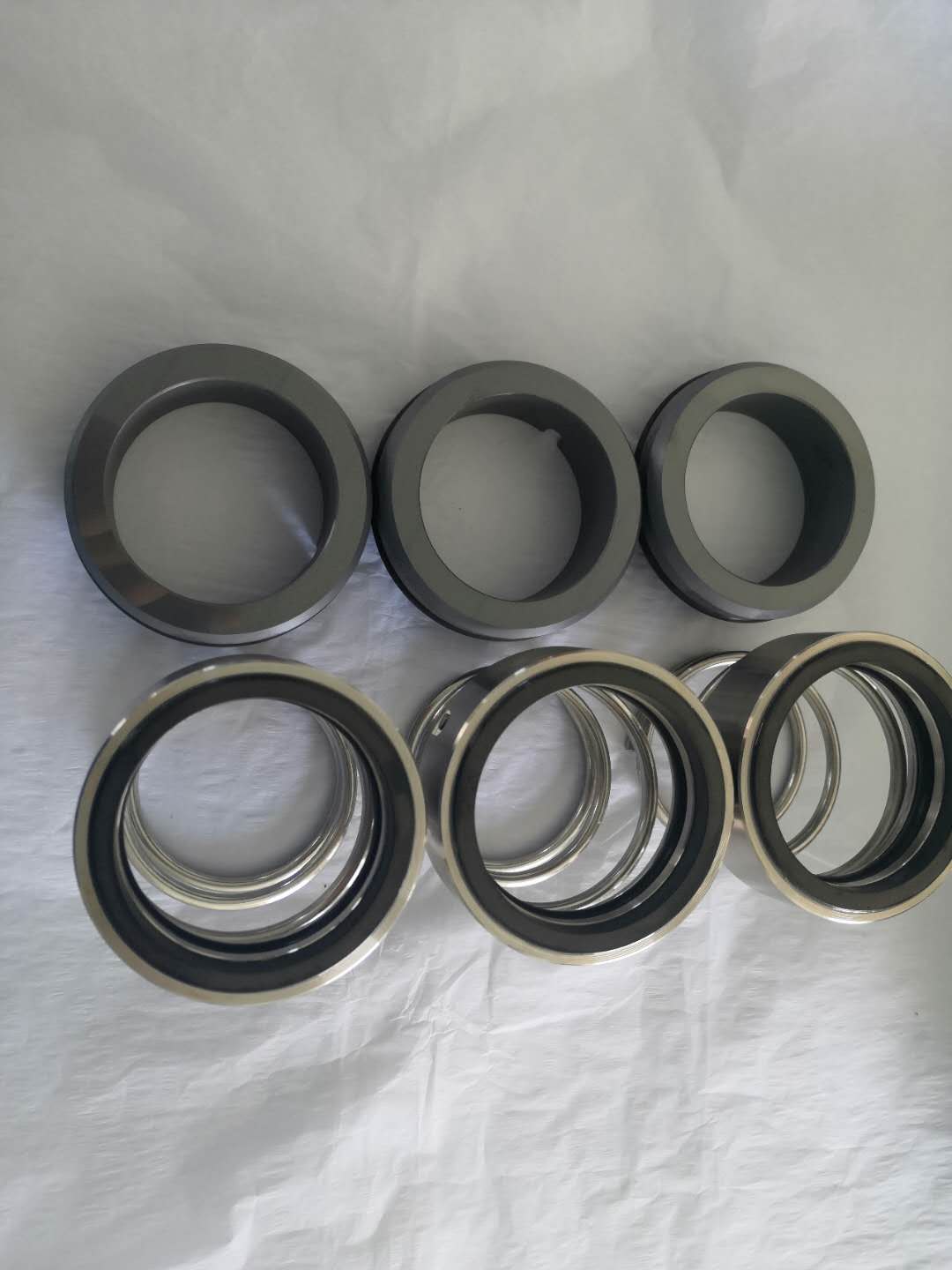

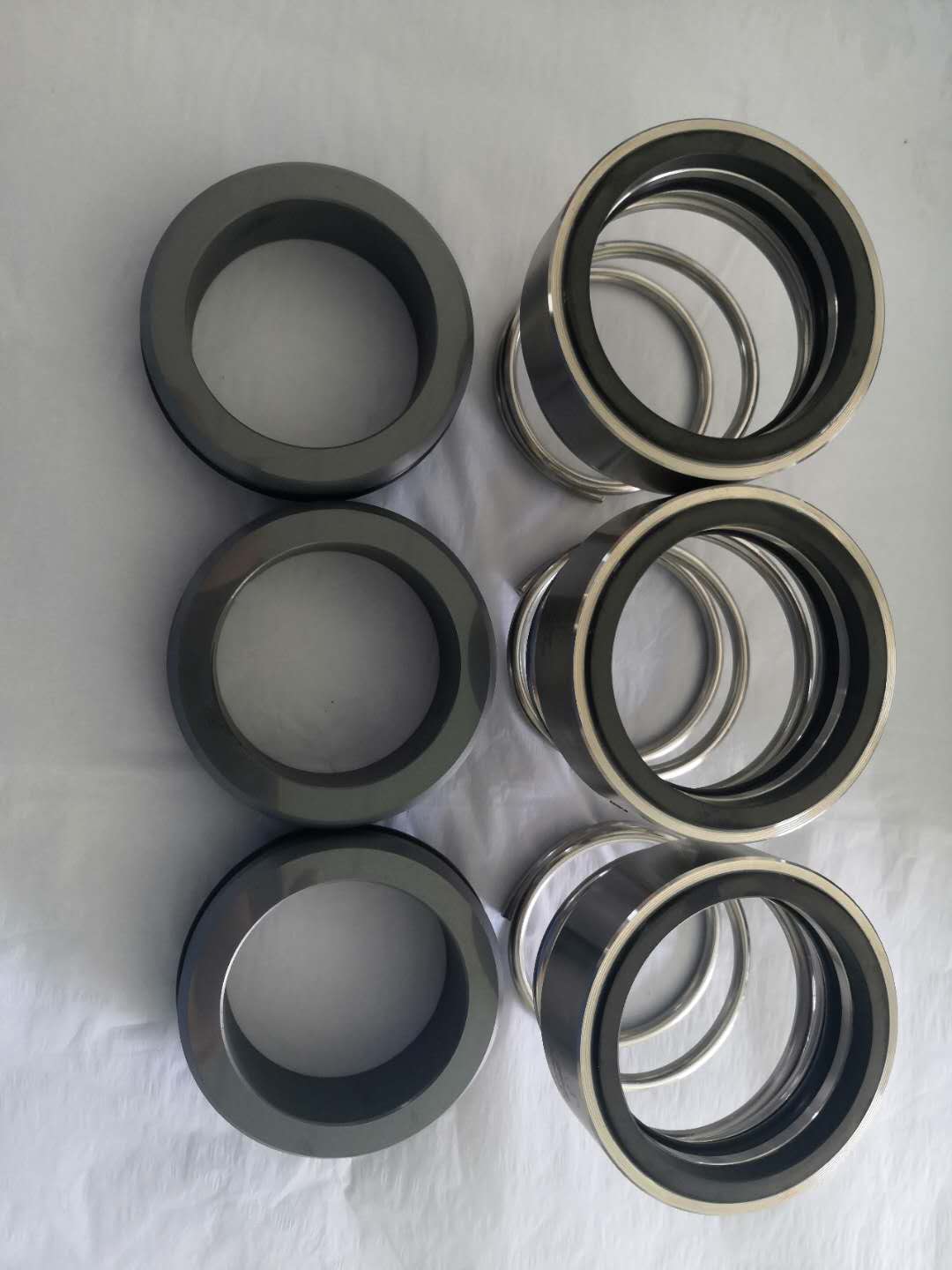

AS M32
Conical Spring Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps. Single end, unbalanced, conical spring, dependent direction of rotation, spring transmission (conical spring drove by both side hook). Simple structure, high compatibility and stable performance with great spring compensation. Stationary ring standard G60 or G4. Inner diameter: 8 mm to 100 mm. Pressure: ≤1.0 MPa, Temperature: -30 to 180°C, Linear Speed: ≤15 m/s. Standards: DIN24960, ISO3069, GB6556. Suitable for oil, water, amorphism acid, alkali, salt, and organic solvents. Widely used in oil refining, chemical engineering, water treatment and chemical fiber industry. Materials can be customized for different operating parameters.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/TC (Rotary) / Carbon/SiC/TC (Stationary) / NBR/Viton/EPDM/PTFE/FFKM / SS304/SS316 (Springs) / 410S/SS304/SS316/SS316L (Metal Parts)
1 Variant
| Model | Materials | GA |
|---|---|---|
| M32 | Carbon/SiC/TC (Rotary) / Carbon/SiC/TC (Stationary) / NBR/Viton/EPDM/PTFE/FFKM / SS304/SS316 (Springs) / 410S/SS304/SS316/SS316L (Metal Parts) | — |
Operating Conditions & Materials
Pressure
1.0 MPa or less
Temperature
-20 ~ 180 ºC
Linear Speed
10 m/s or less
Mediums
Oil, water, amorphism acid, alkali, salt, and organic solvents.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
