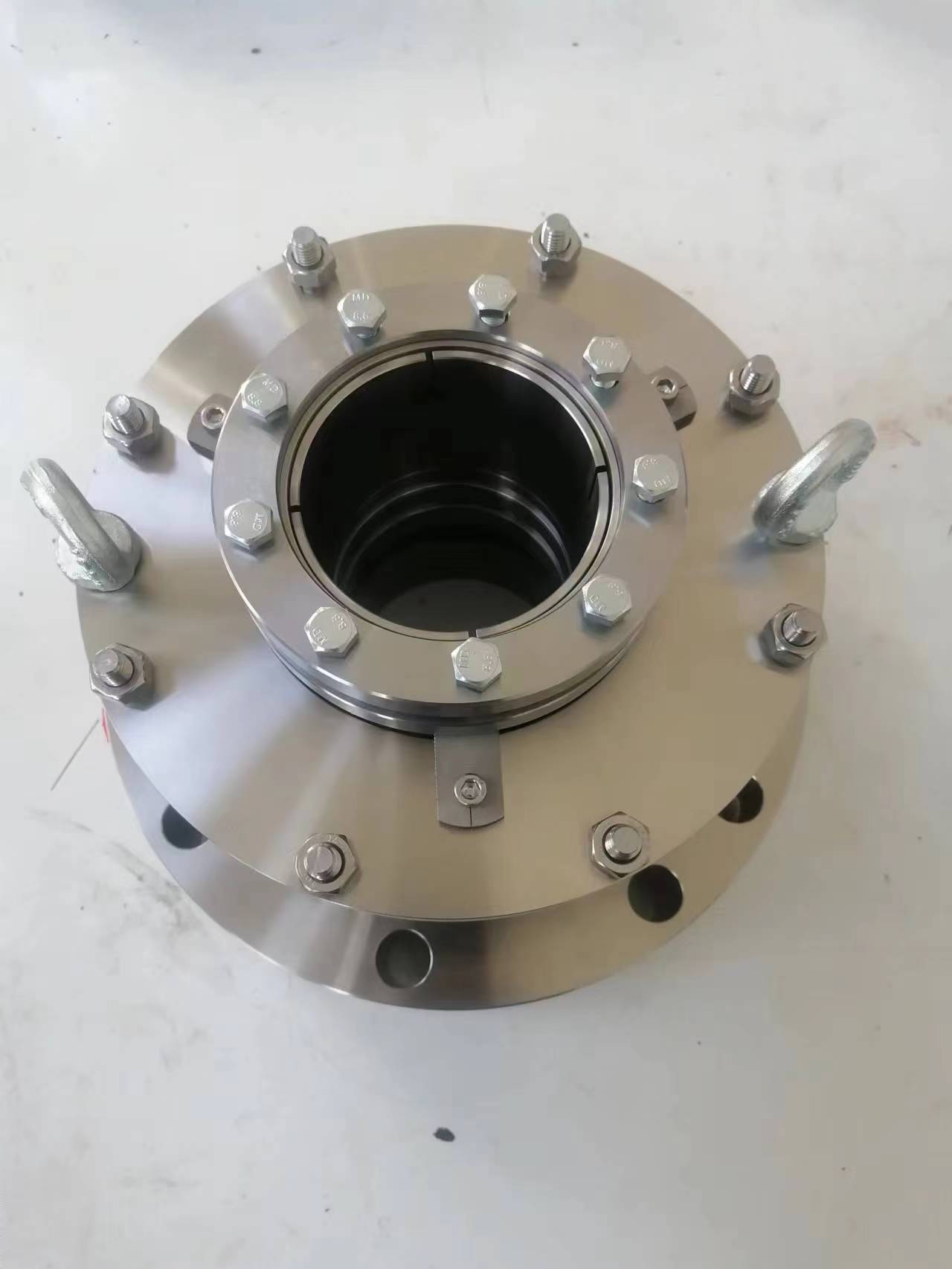

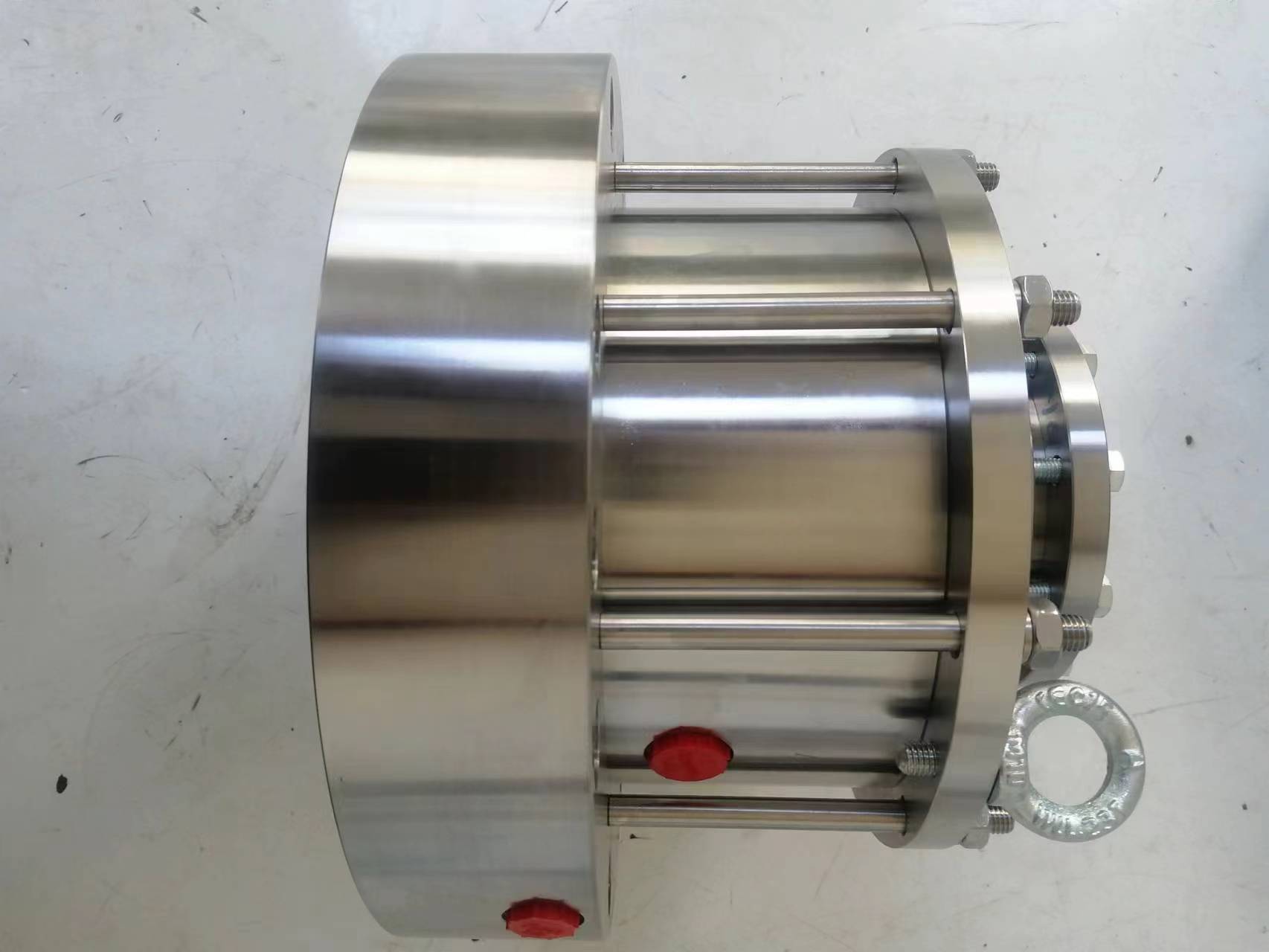

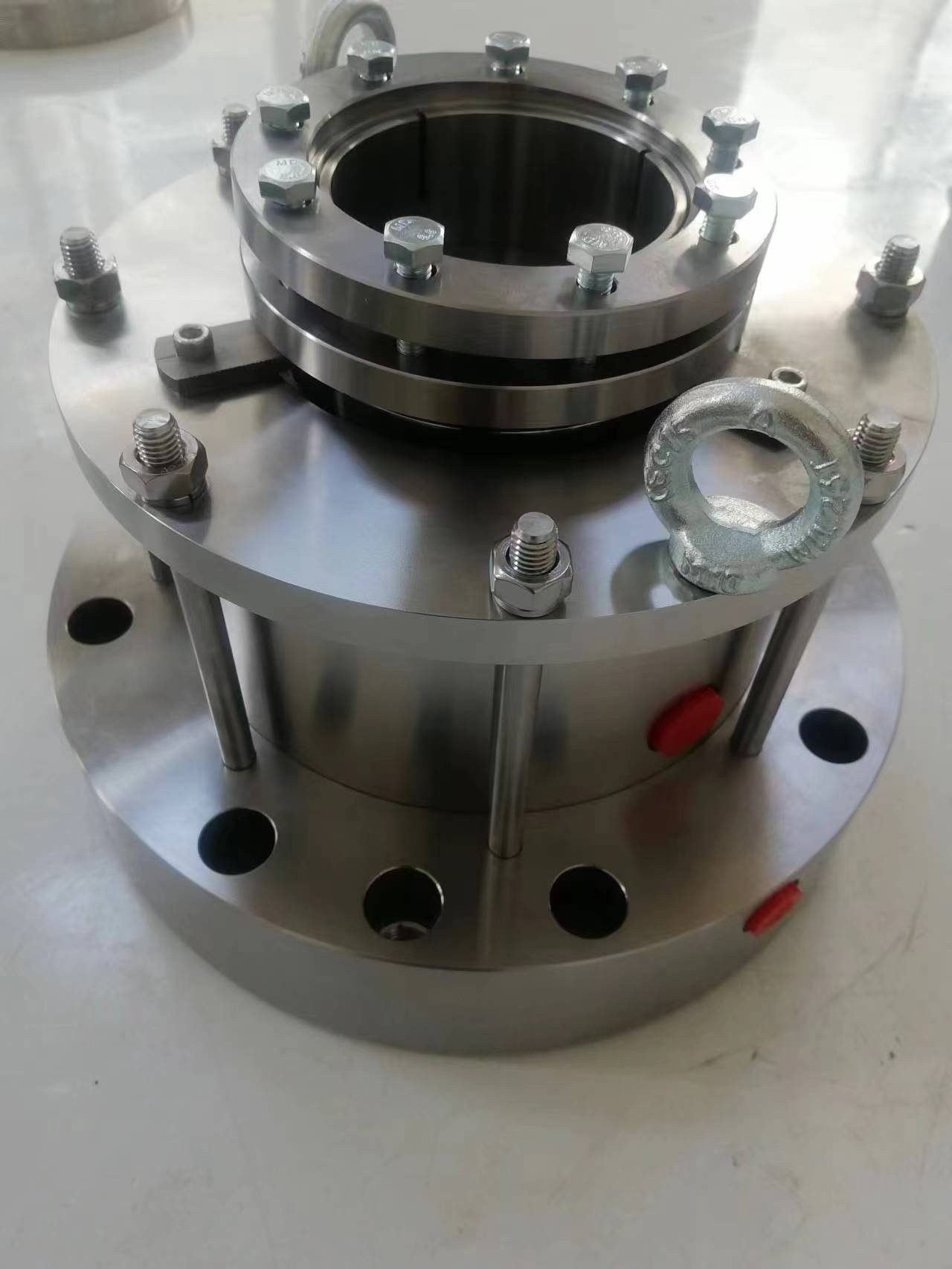

AS M481K-D22-90-E01

For: Top Entry Vertical Mixers and Agitators

Double balanced cartridge seal with integrated bearing kit and cooling water jacket, independent rotary direction, multiple spring rotating. Can be applied at higher pressure and rotating speed than specified by DIN.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

SiC/SiC/Viton/SS316/SS316 - Carbon/SiC/Viton

1 Variant

Model	Materials	GA
M481K-D22-90-E01	SiC/SiC/Viton/SS316/SS316 - Carbon/SiC/Viton	—

Operating Conditions & Materials

Pressure

Vacuum ~ 2.5 MPa

Temperature

-20 ~ 200 ºC

Linear Speed

5 m/s or less

Mediums

Oil, acid, alkali, and polymer suspensions. For top entry vertical mixers and agitators.

Customization Available

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
