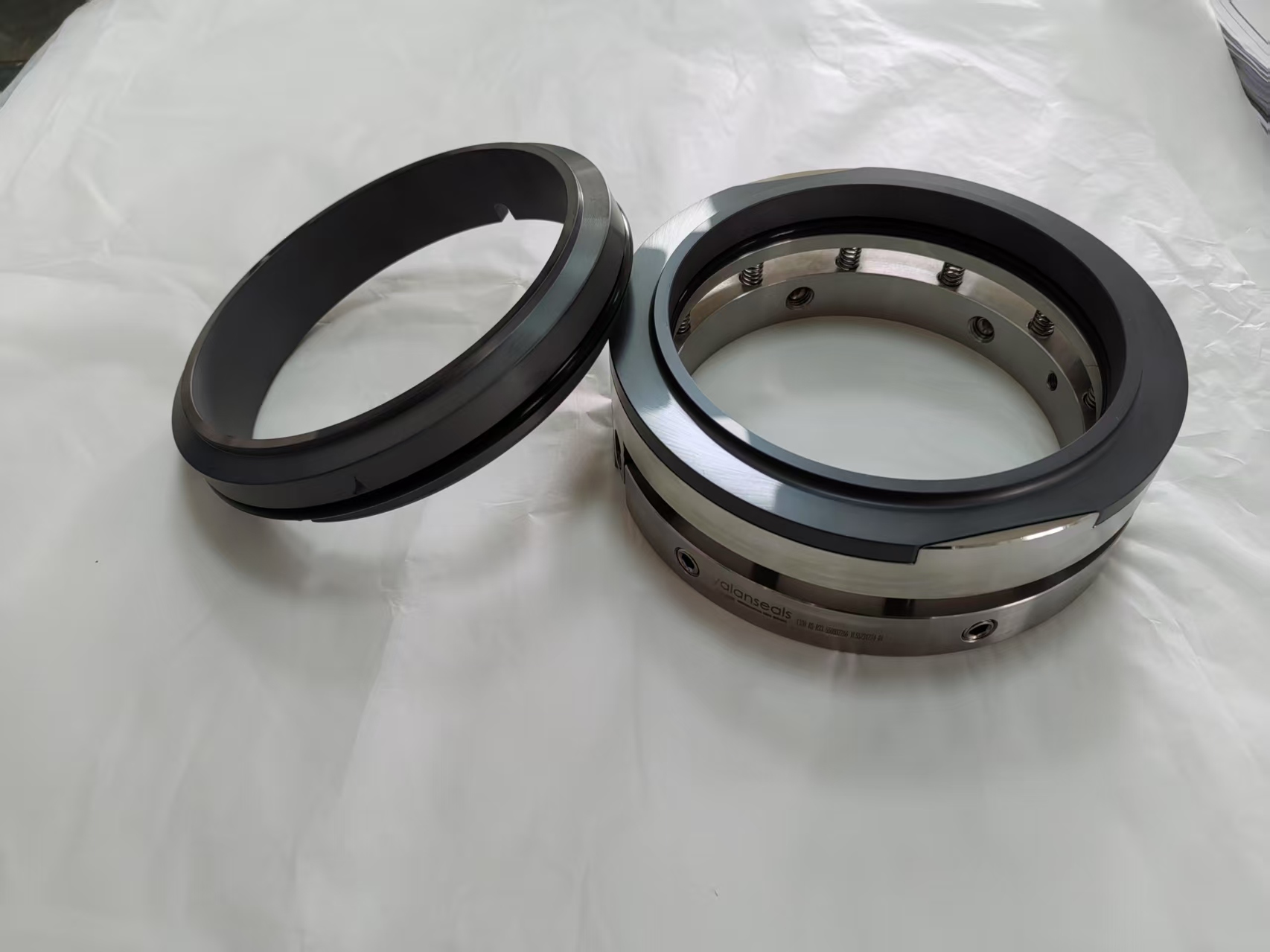

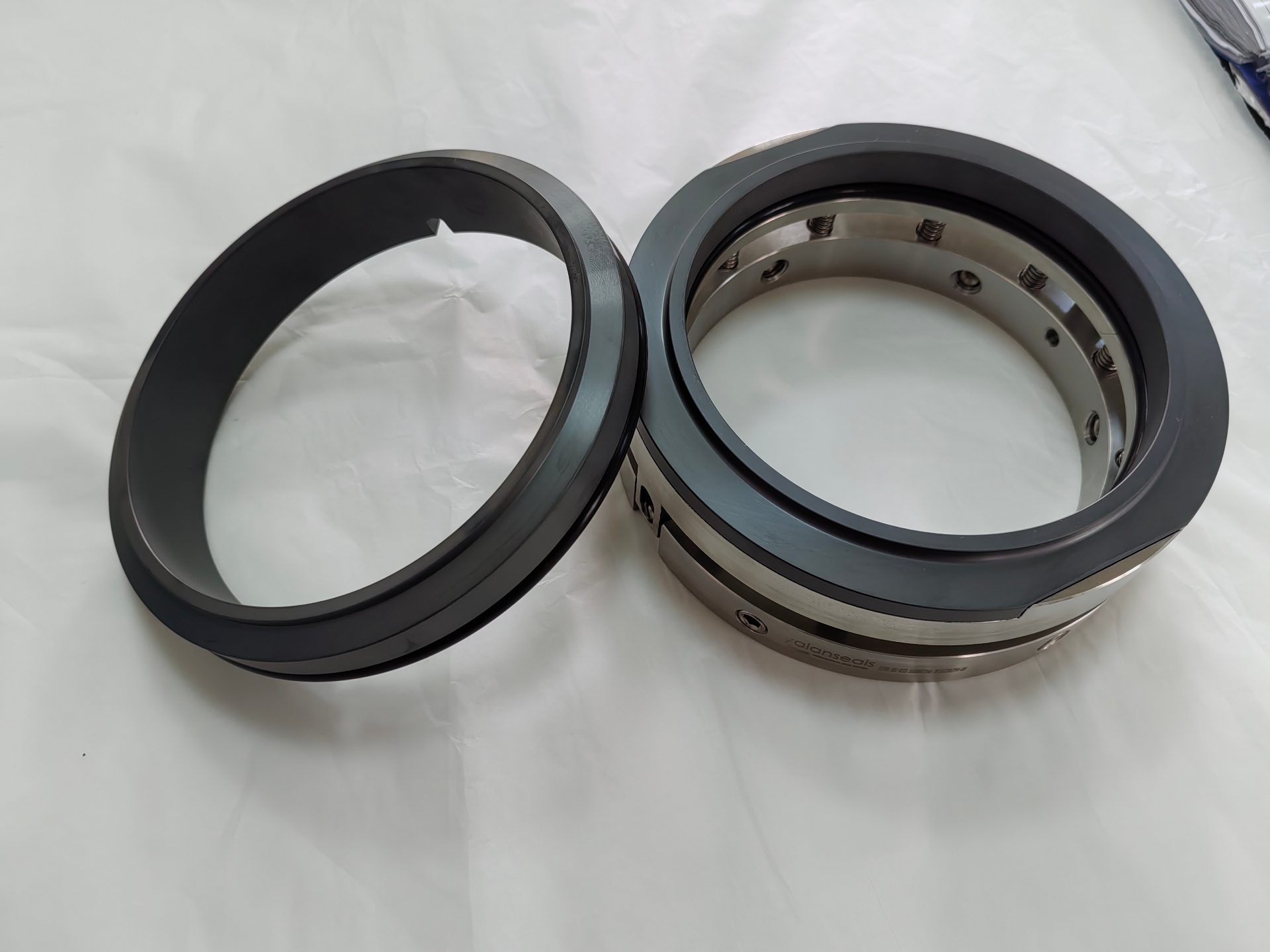

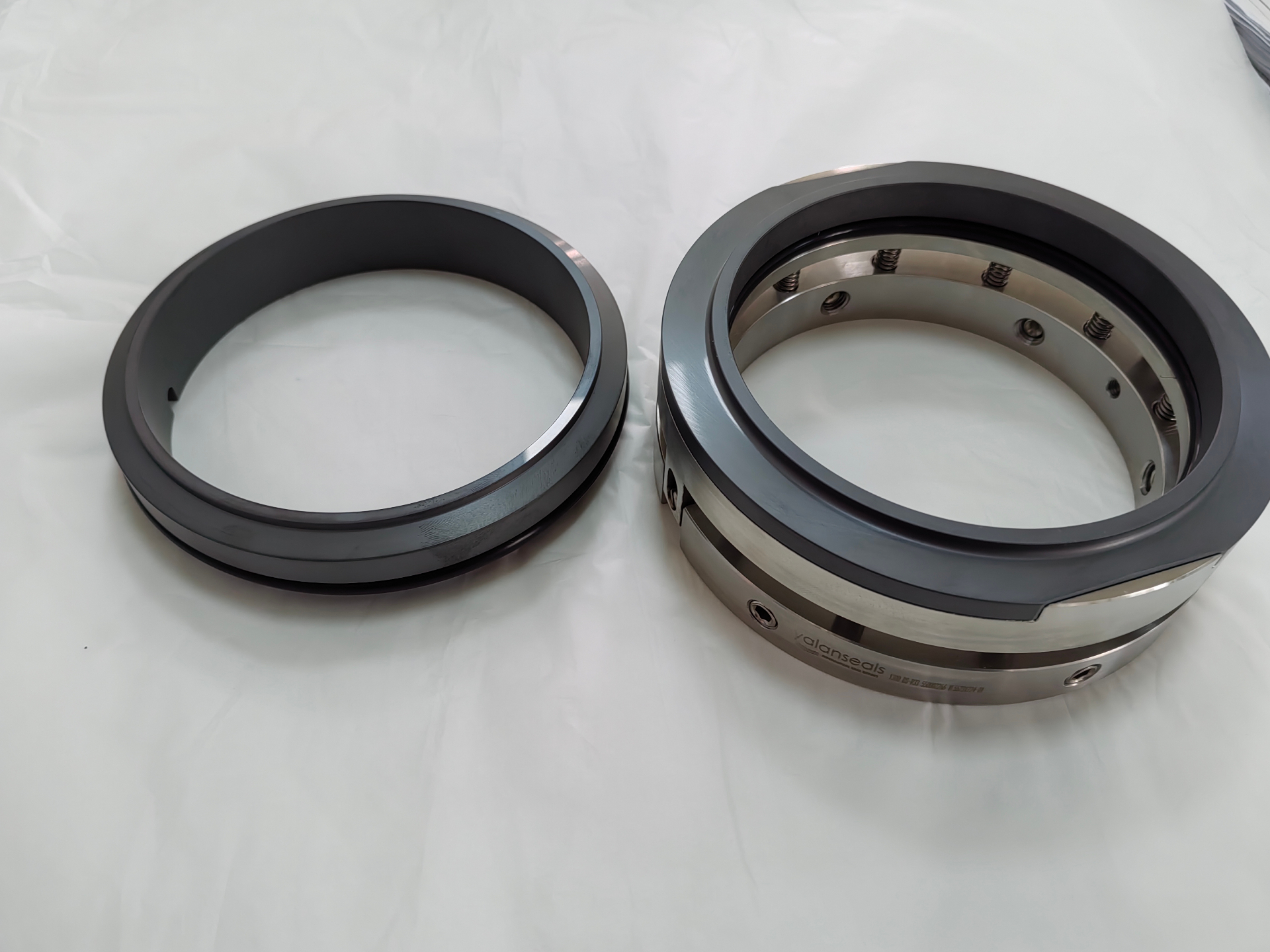

AS R33-130
R33 is a short DIN seal for general duties in processing, refinery and petrochemical industries. Wave spring design complying with EN 12756, DIN 24960, ISO 3069 and API 610.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/HC276/904L
1 Variant
| Model | Materials | GA |
|---|---|---|
| R33-130 | SiC/SiC/Viton/HC276/904L | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Corrosive acids, chemicals, industrial process fluids. High-alloy construction for severe corrosion resistance.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
