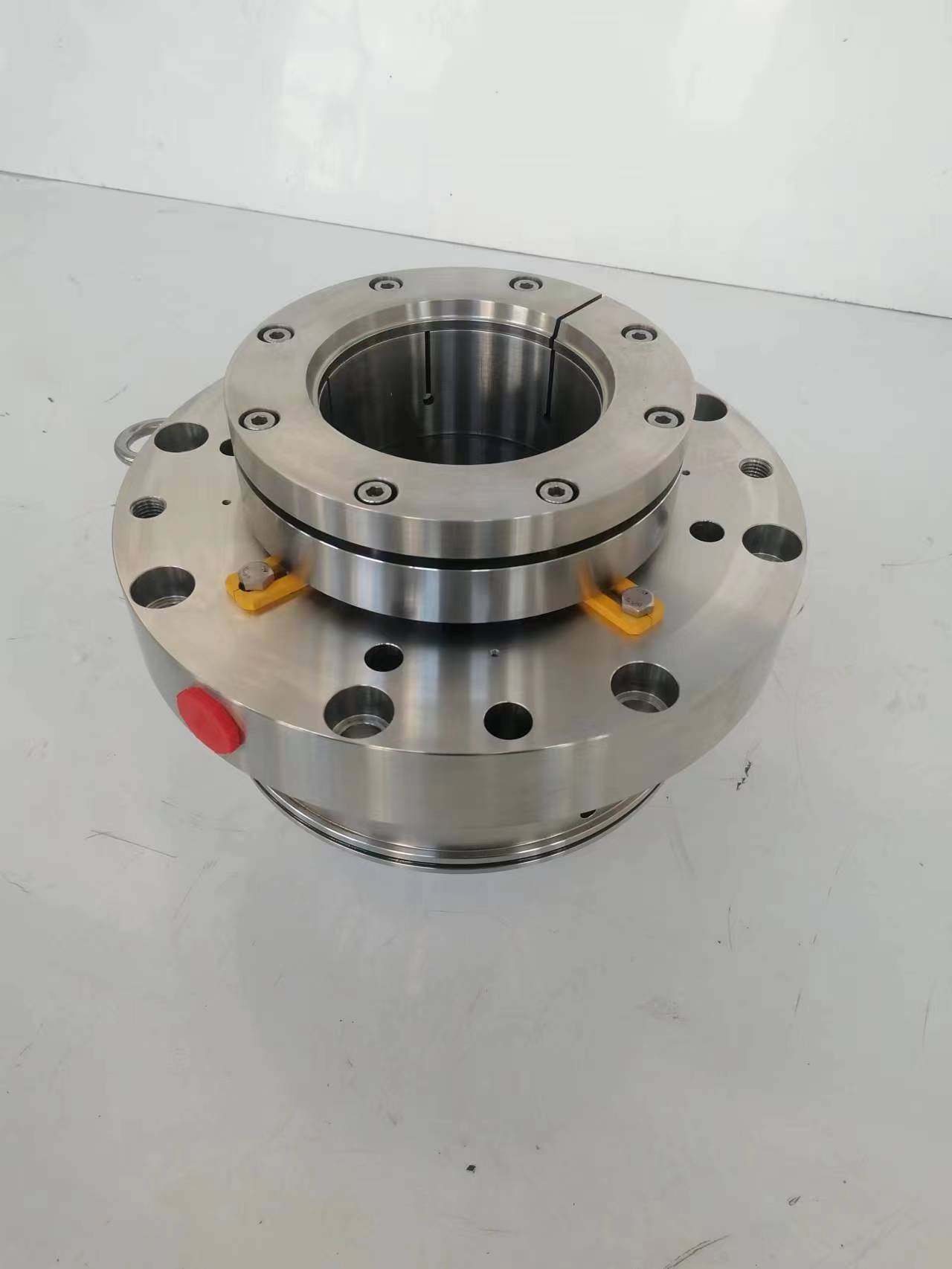

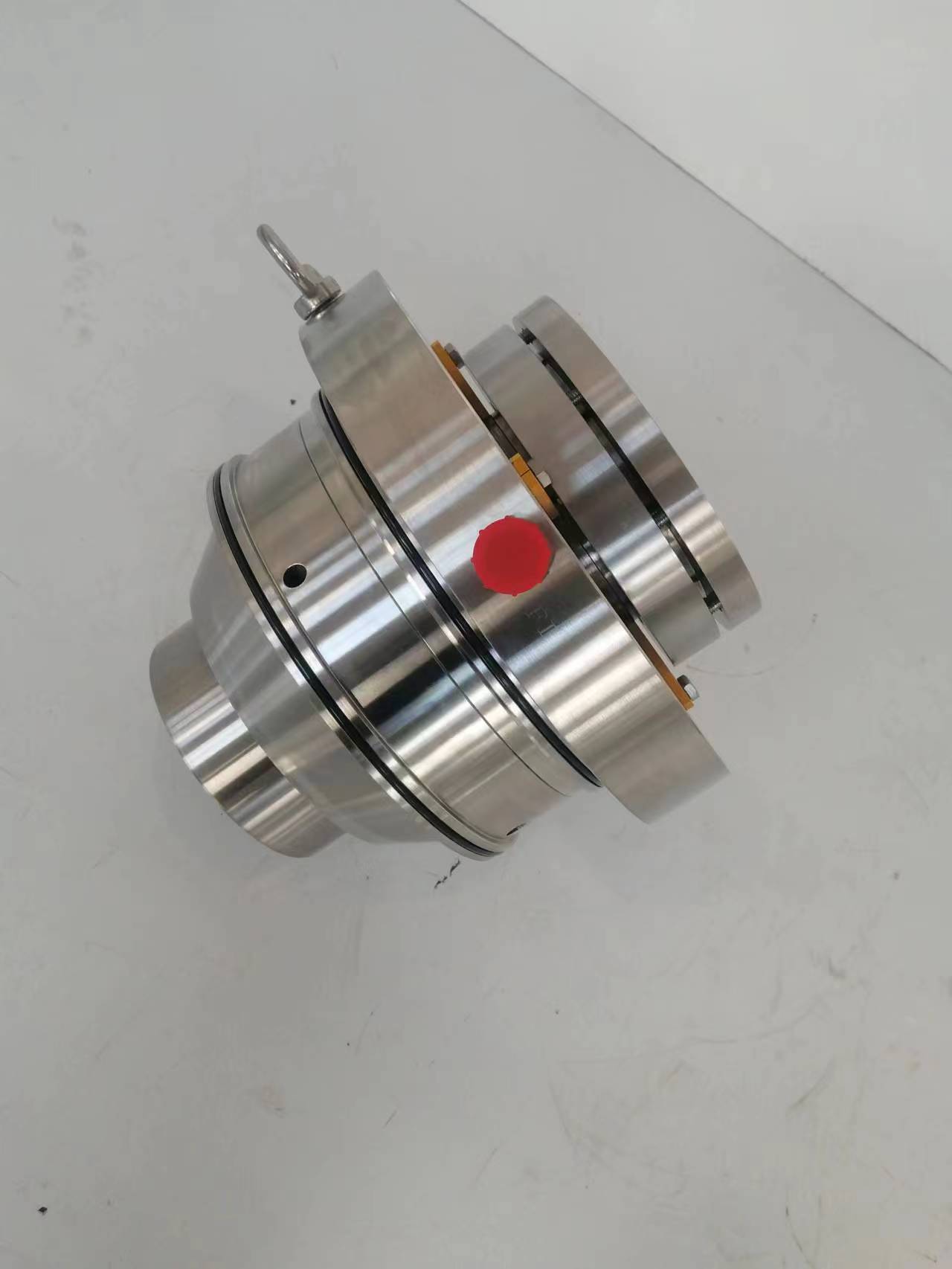

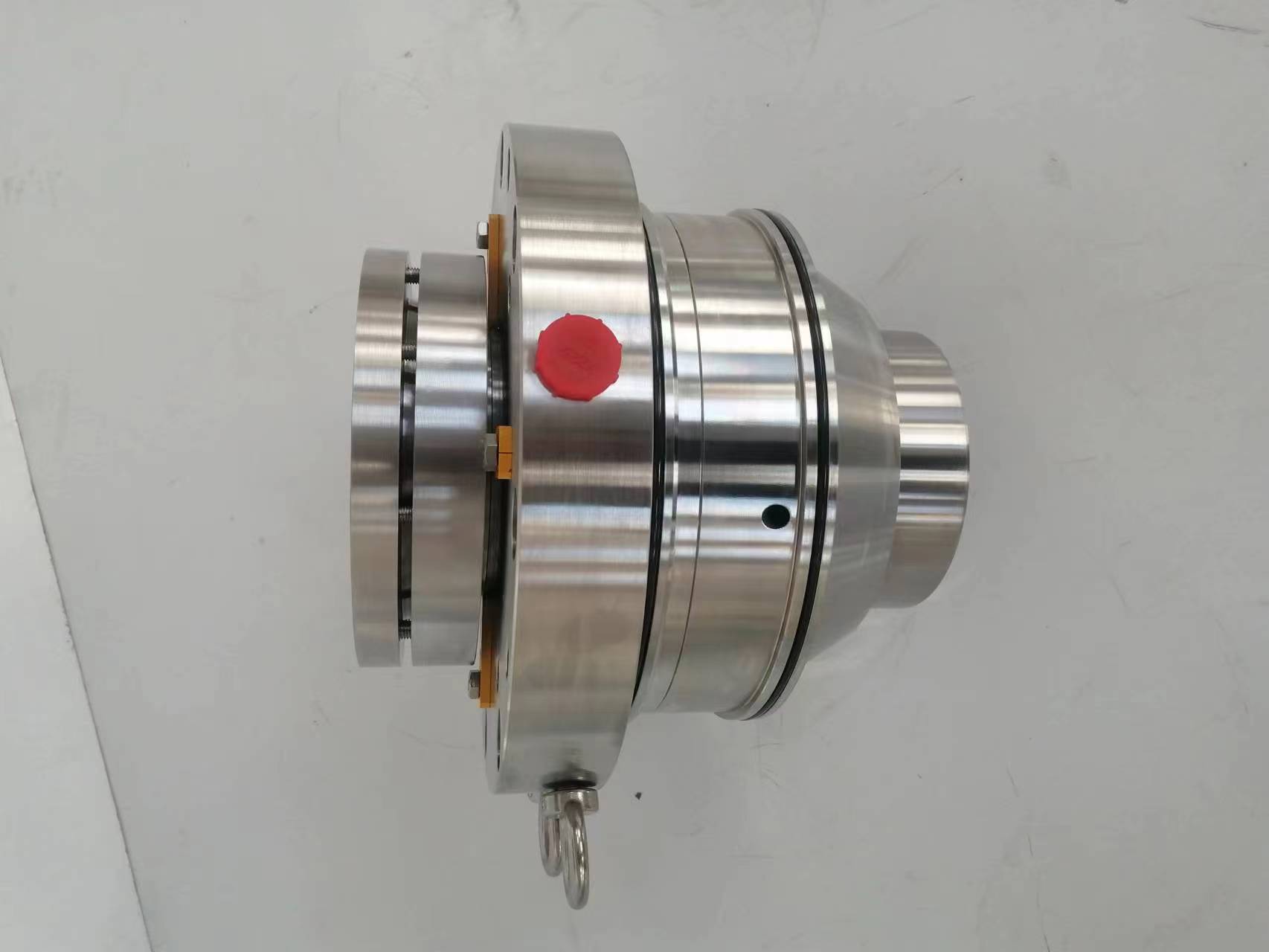

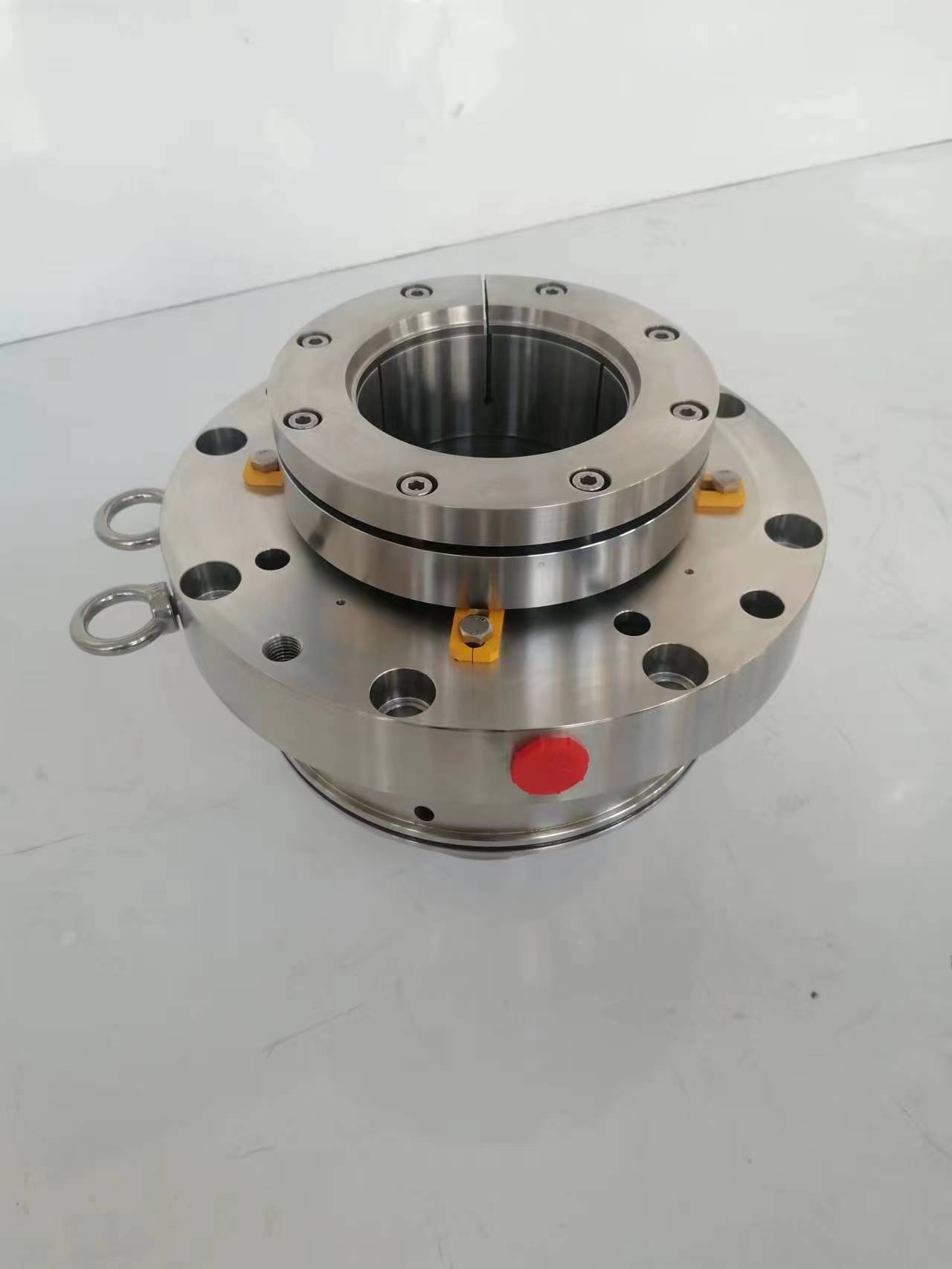

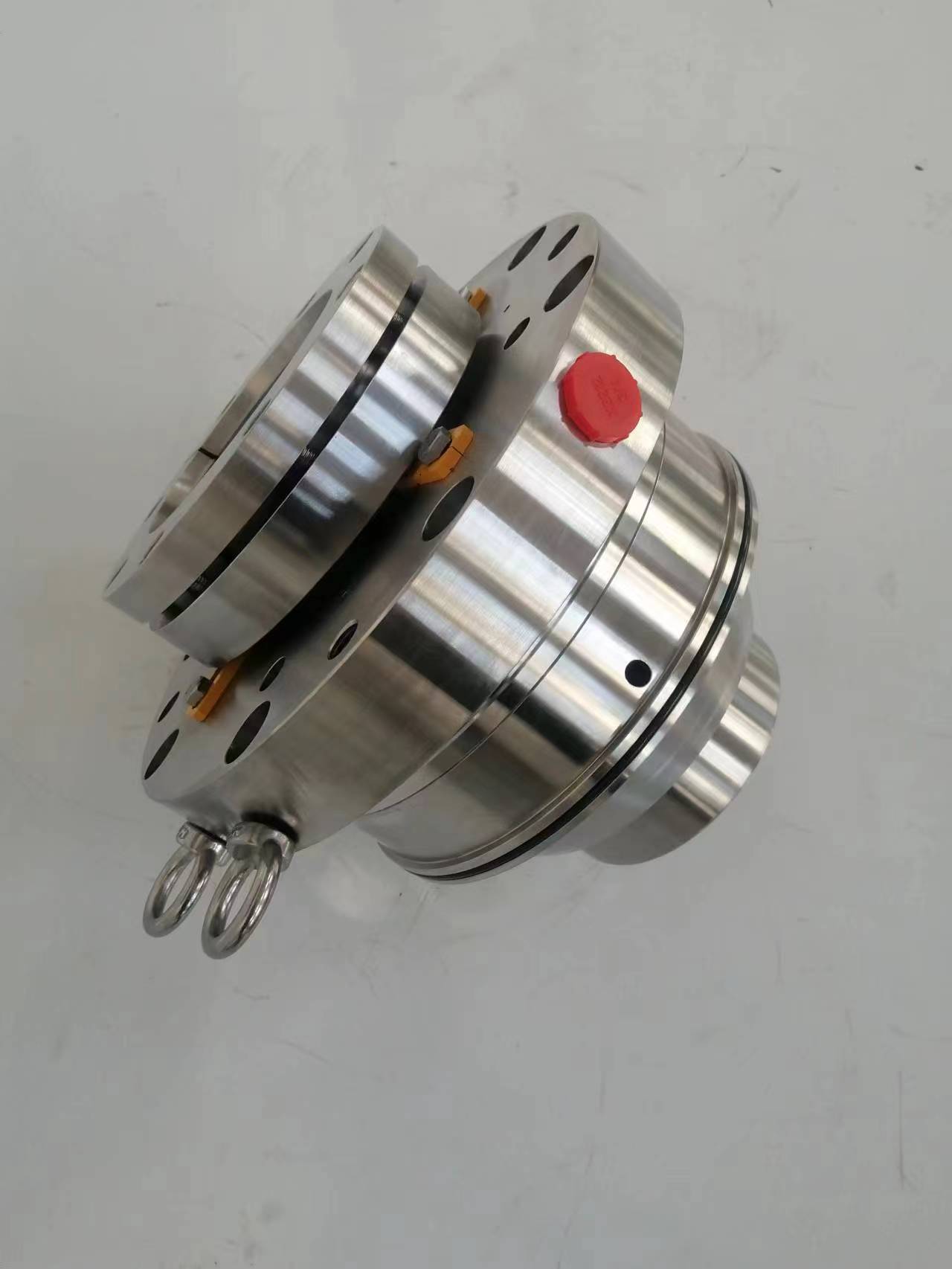

AS RRSP
RRSP is a variant of the RREP high-performance multiple spring seal. Designed for high-pressure and high-speed applications in refinery and process industries. Ideal for offshore, pipeline, injection duties and power generation.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/Antimony Filled Carbon/EPDM and PTFE/Inconel 750X/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| RRSP-130 | SiC/Antimony Filled Carbon/EPDM and PTFE/Inconel 750X/SS316 | GA-129574 |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Reactor feed pumps, high temperature chemical applications.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
