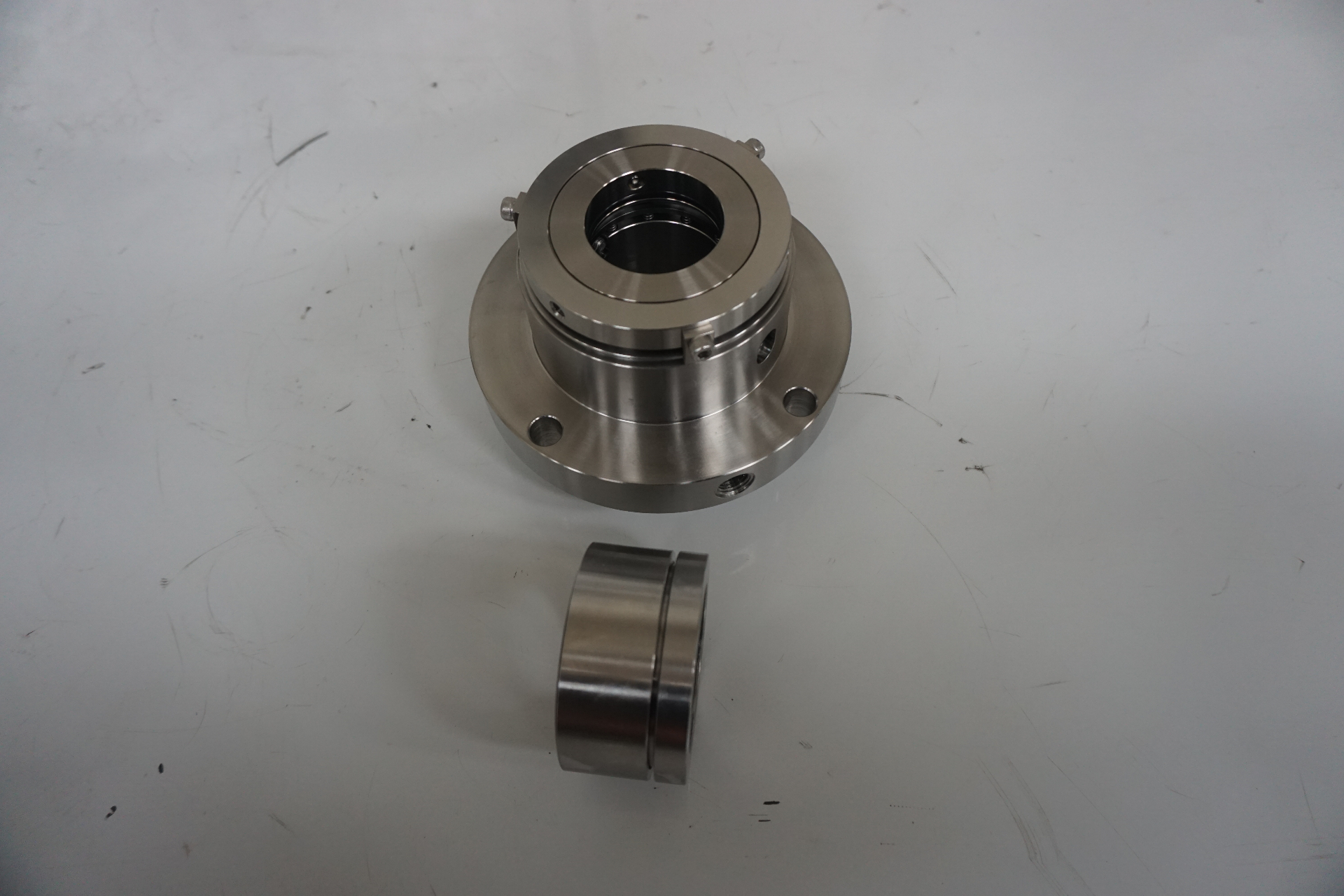

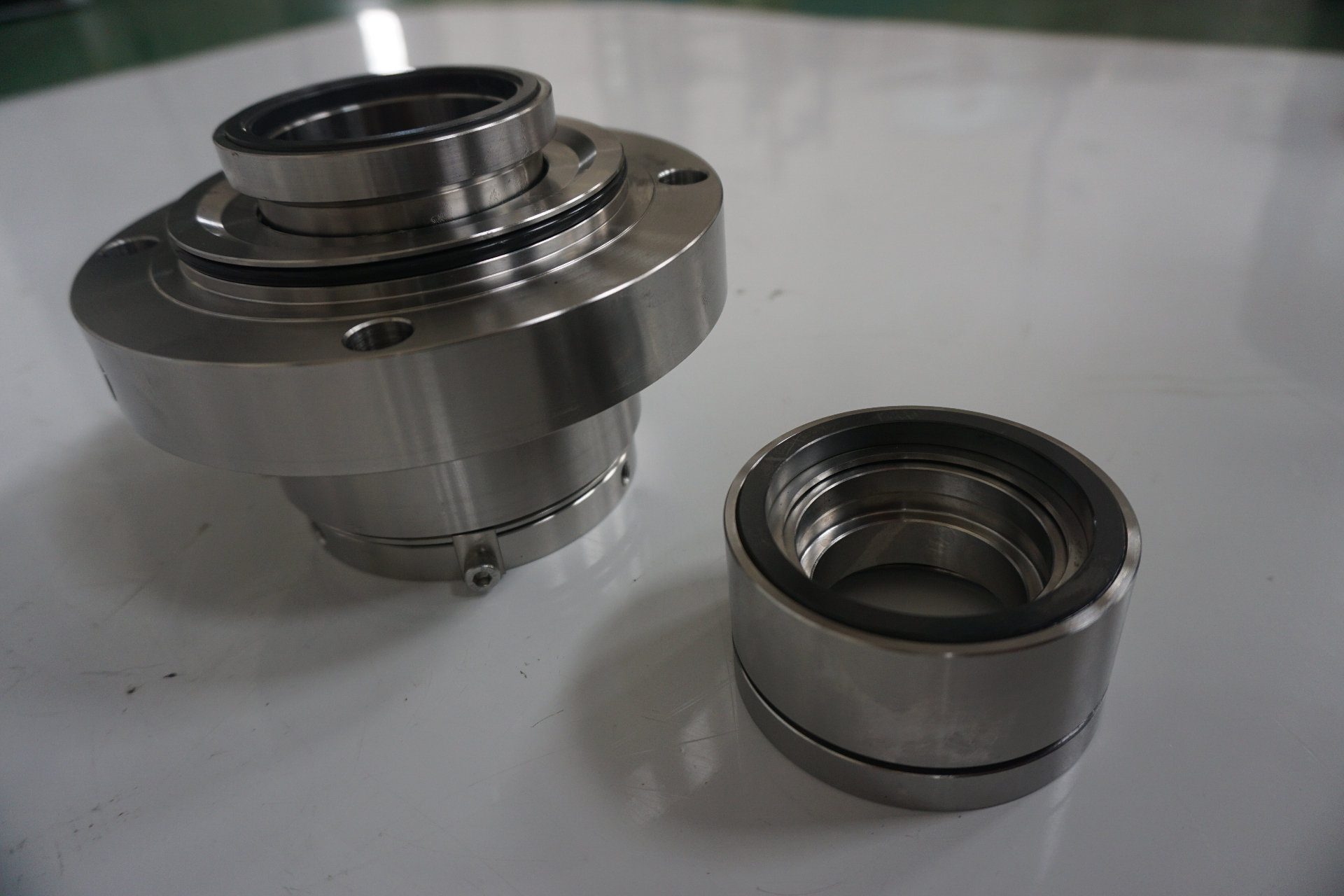

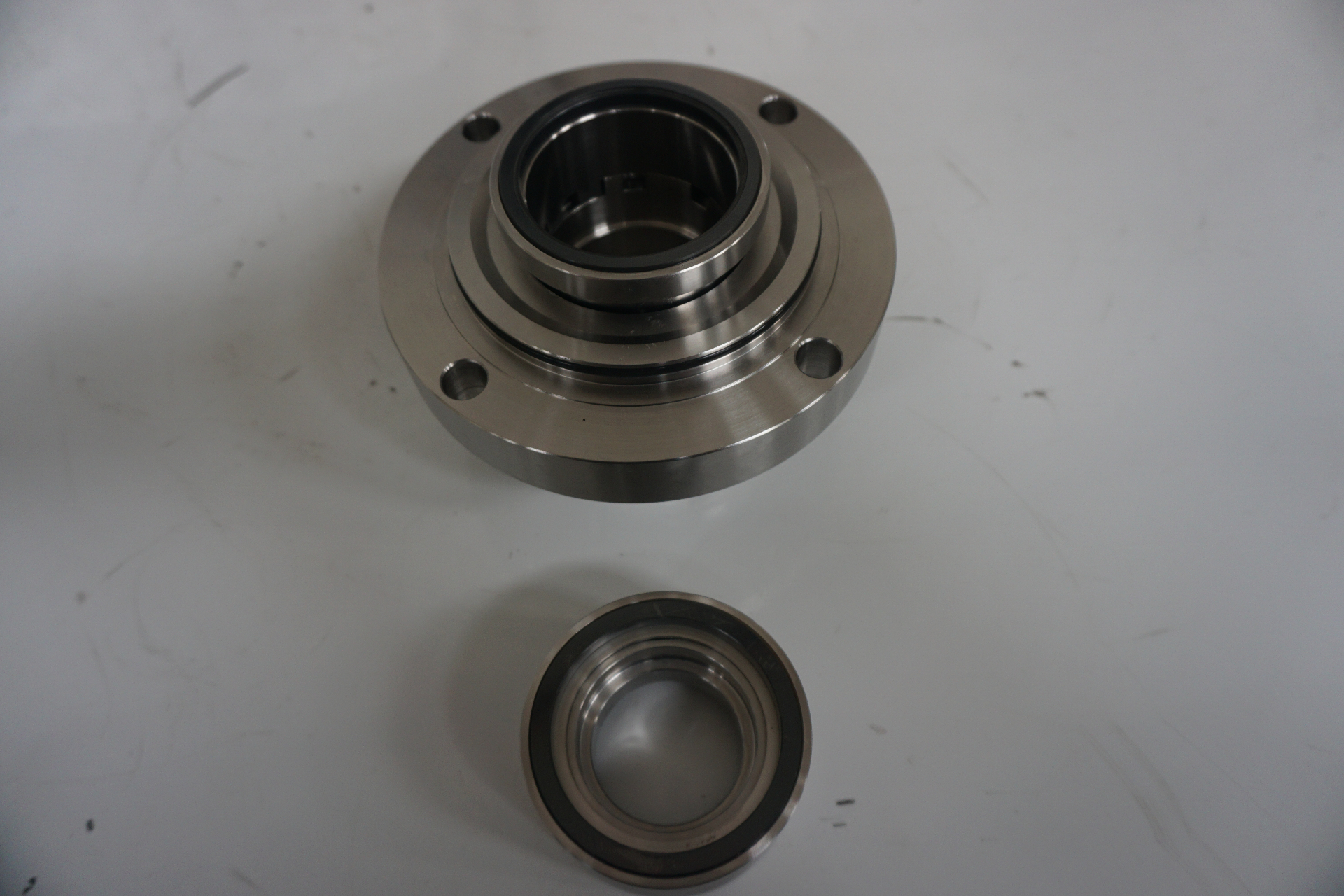

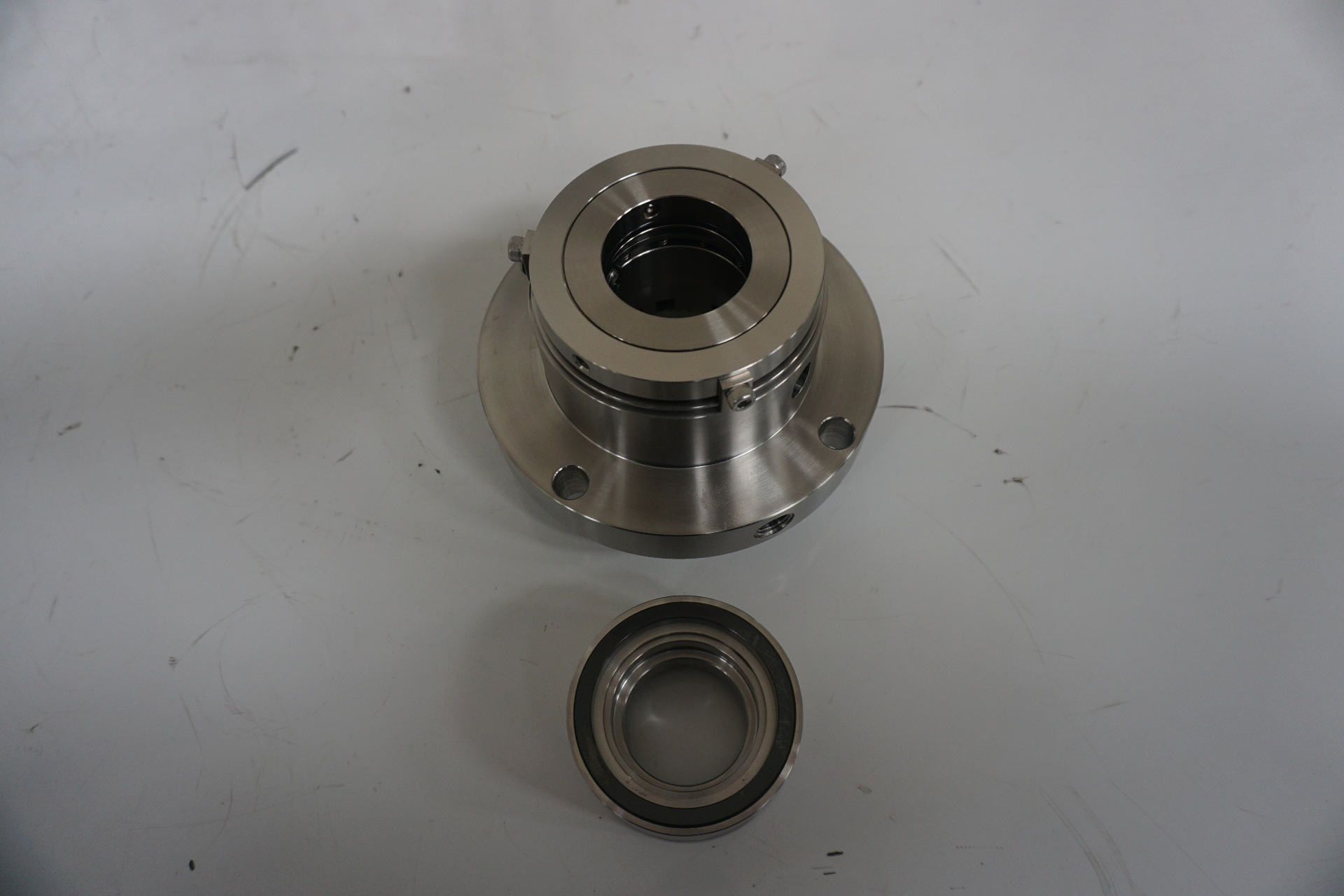

AS SE2-CP-1.875-QXVN-4T
Type SE2 dual, balanced cartridge seal for severe pulp and paper industry applications. Patented double-balance feature for both pressurized and unpressurized dual seal arrangements.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/FFKM/HC276/Duplex 2205 - SiC/SiC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| SE2-CP-1.875-QXVN-4T | SiC/SiC/FFKM/HC276/Duplex 2205 - SiC/SiC/Viton/HC276/SS316 | GA-306076 |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Paper pulp, aggressive slurries, chemical processing fluids. Double-end cartridge seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
