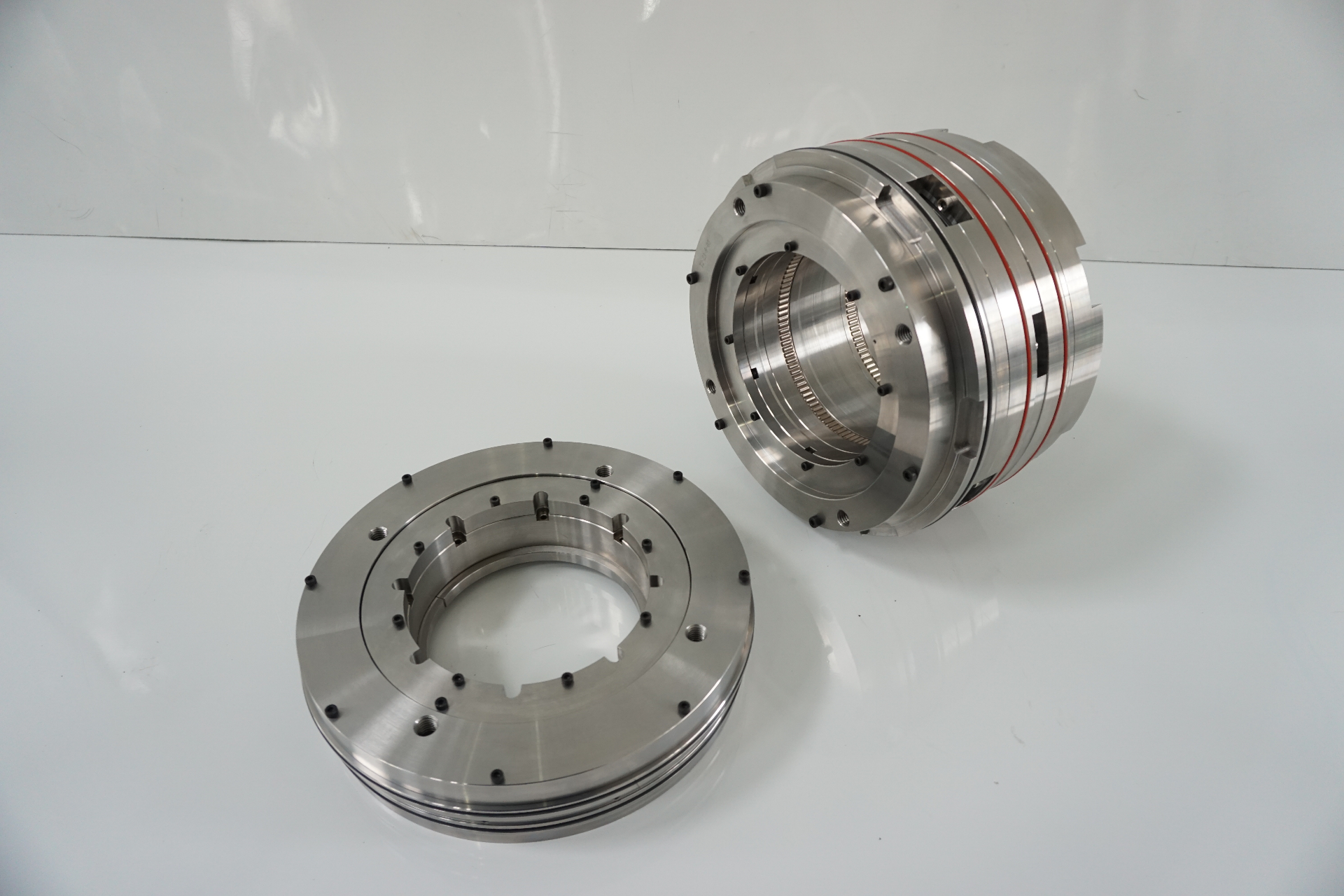

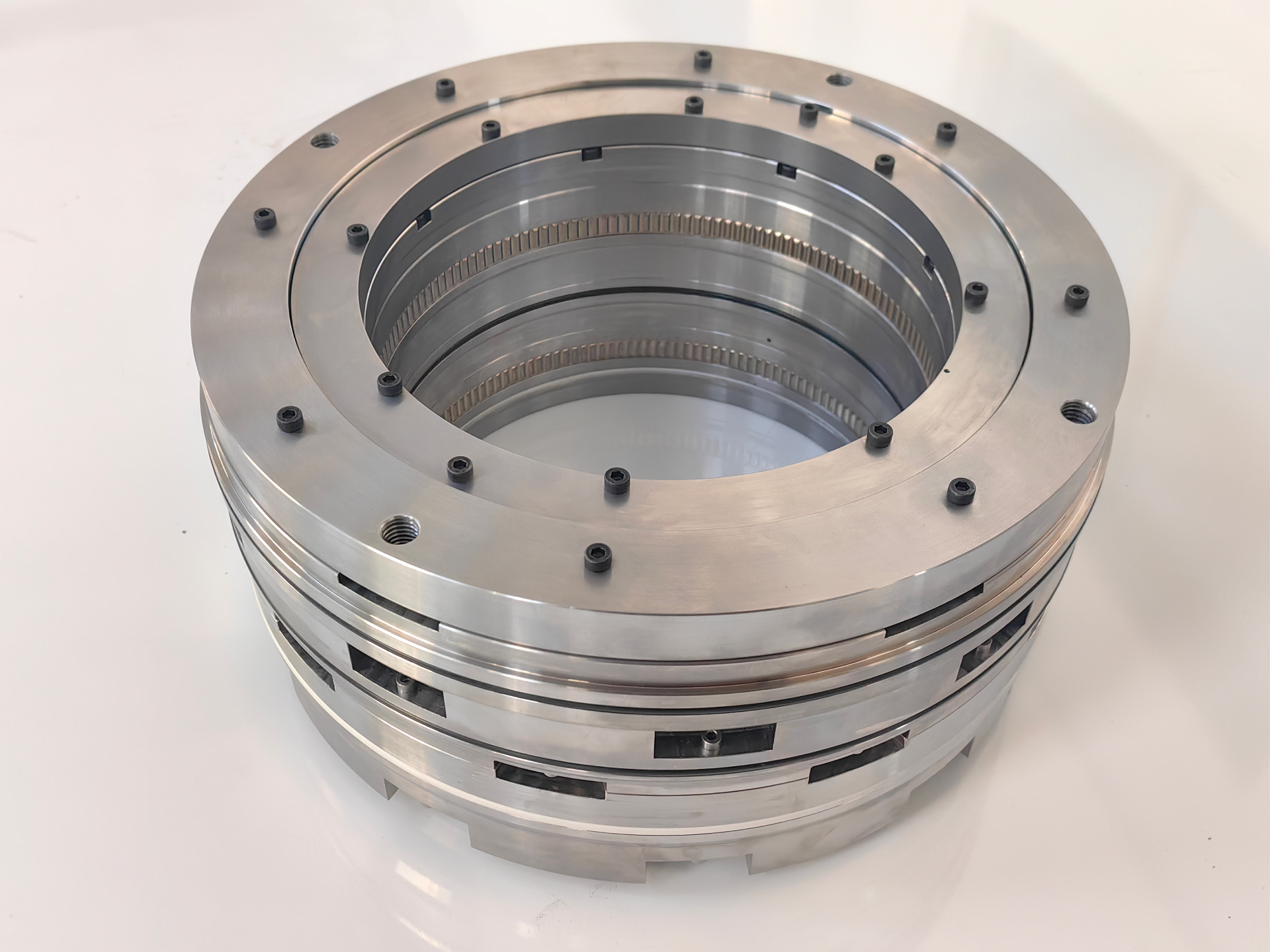

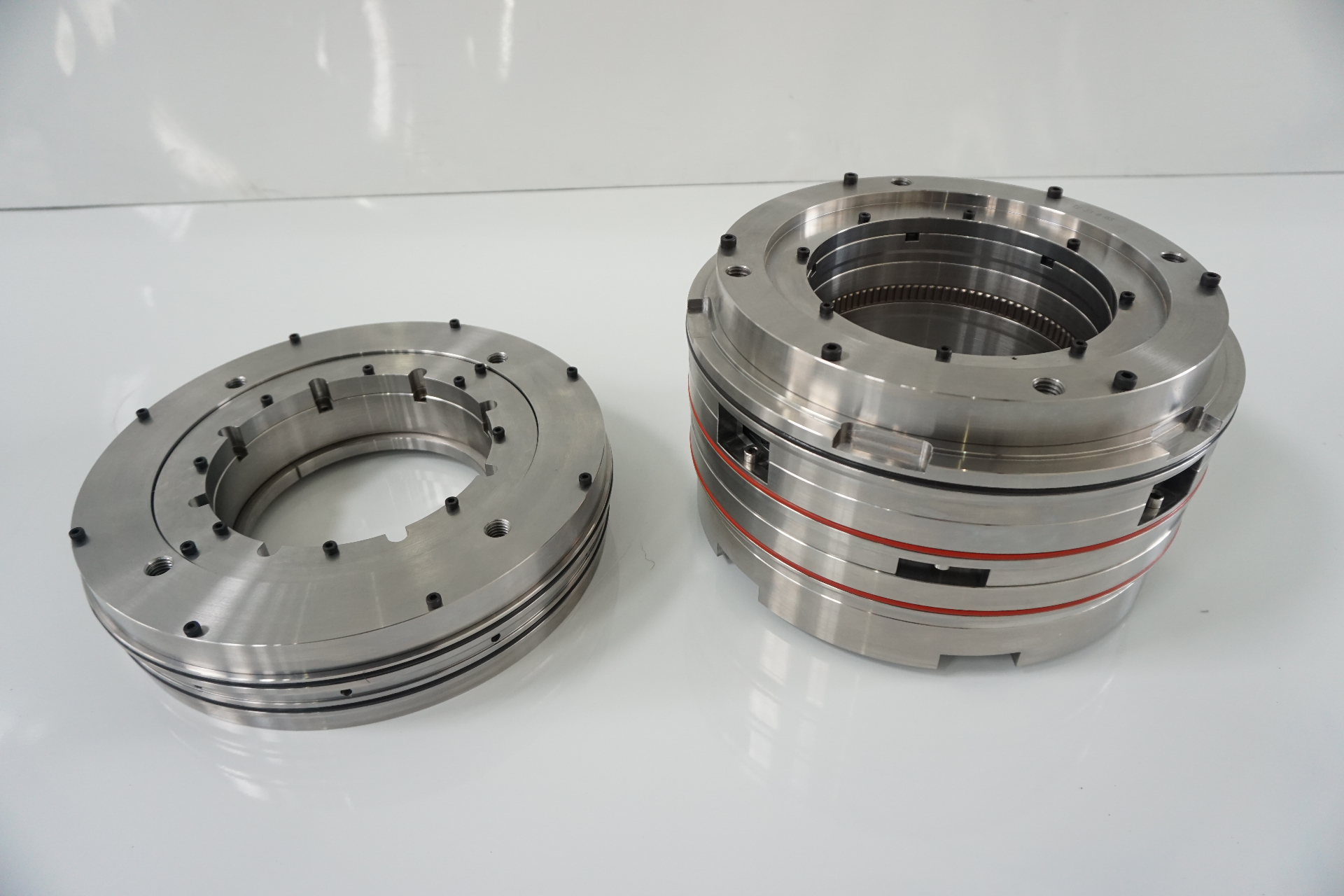

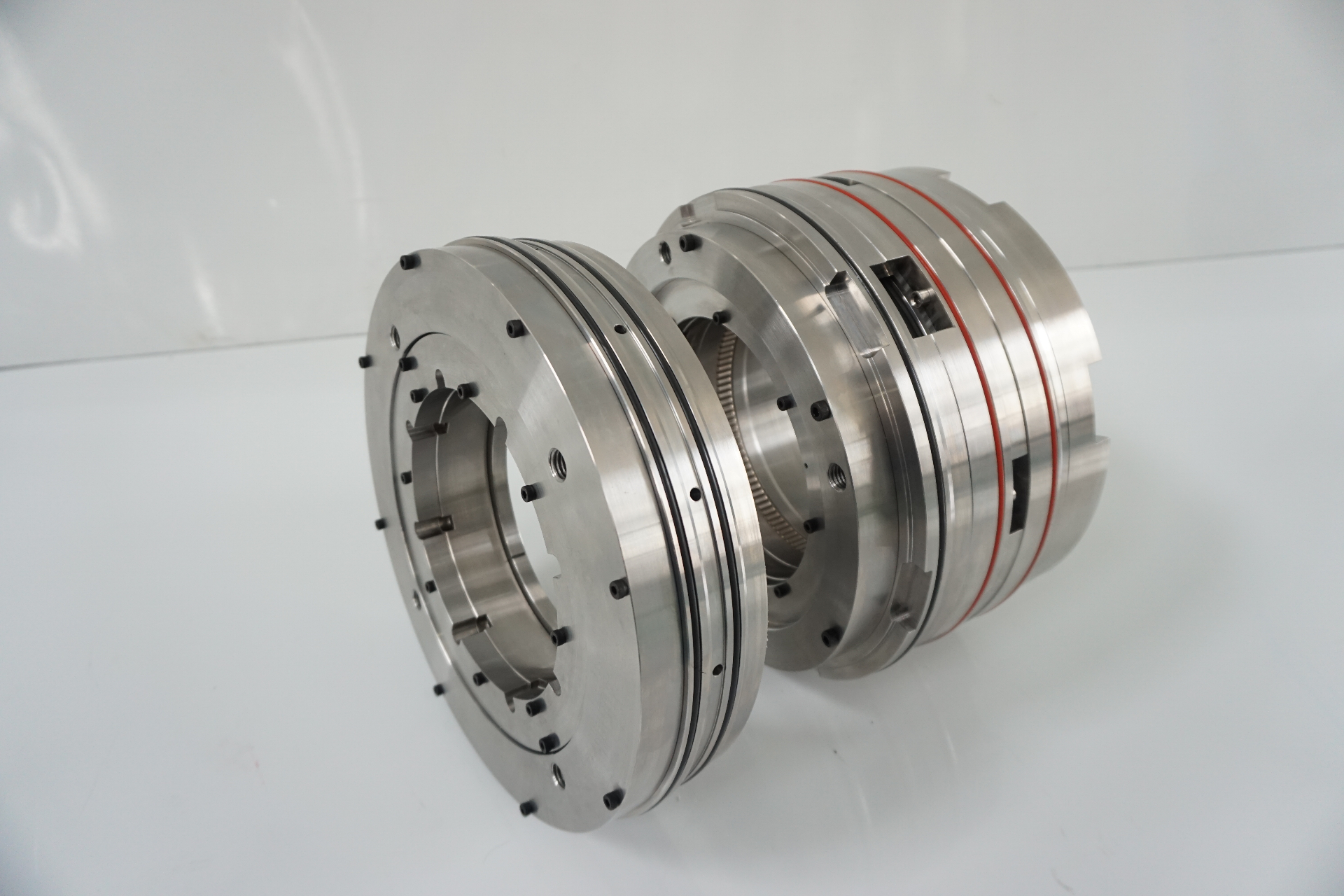

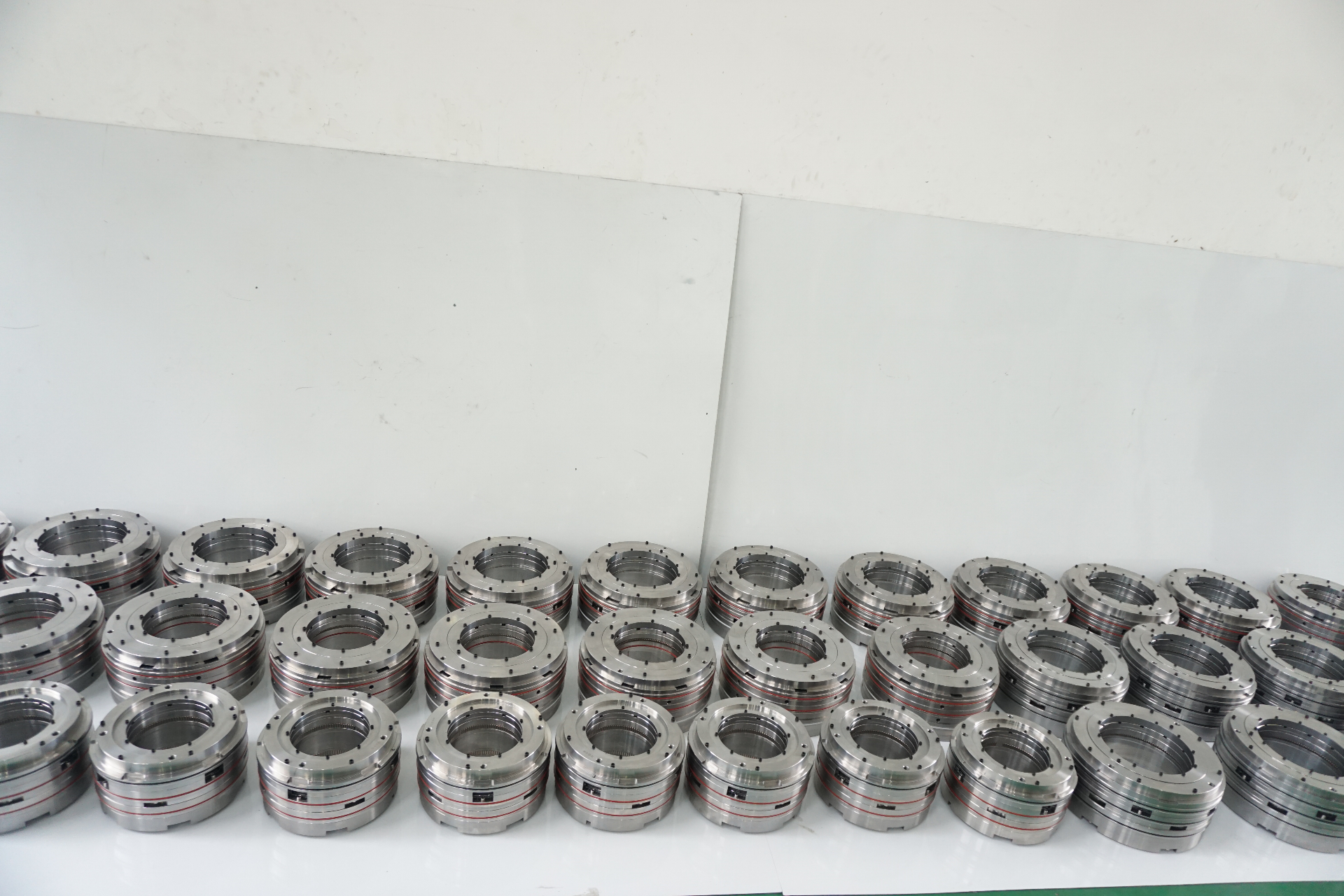

AS T28XP
T28XP + F93R Series DGS with Barrier Seal — High-Temperature, High-Pressure Dry Gas Seals for Ebara Turbine Compressors.
Design Parameters
- Tandem dry gas seal
- Medium Temperature: -40 to 150 °C
- Static Pressure: 8.618 MPa
- Dynamic Pressure: 5.869 MPa
- Rotary Speed: 14643 r/min
Actual Operating Conditions
- Operating Pressure: 4.647 MPa
- Operating Temperature: 140 °C
- Rotary Speed: 13312 r/min
- Medium: 97.56% CH₄, 1.5007% N₂, H₂S, etc.
Design Features
- For high-pressure, high-temperature turbine compressors, only explosion-proof "spring energized seals" can be selected as auxiliary sealing rings.
- Structural component design must undergo rigorous static analysis and optimization.
- The stability of the dynamic pressure effect generated by the dynamic pressure groove and the stiffness-to-leakage ratio must undergo rigorous dynamic analysis and verification tests.
- The isolation sealing structure requires special design and testing to ensure accurate control of nitrogen consumption.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/Carbon/Viton/HC276/SS316
6 Variants
| Model | Materials | GA |
|---|---|---|
| T28XP-5.437 | SiC/Carbon/Viton/HC276/SS316 | — |
| T28XP-5.687 | SiC/Carbon/Viton/HC276/SS316 | — |
| T28XP-7.625 | SiC/Carbon/Viton/HC276/SS316 | — |
| T28XP-8.625 | SiC/Carbon/Viton/HC276/SS316 | — |
| T28XP-9.625 | SiC/Carbon/Viton/HC276/SS316 | — |
| T28XP-10.625XP | SiC/Carbon/Viton/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
0 ~ 18 MPa
Temperature
- 140 ~ 315 ºC
Linear Speed
200 m/s or less
Mediums
Dry gas sealing for compressor applications. Shaft Diameters: 7.625", 8.625", 9.625", 10.625", 11.875", up to 13.75". Rotary Direction Options: clockwise, counter-clockwise and bi-directions.
Customization Available
Available in multiple shaft sizes and rotary direction configurations. Contact us with your requirements.
