AS Type 103
Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps. Single end, unbalanced, fixed direction of rotation, touched coil spring transmission. Pay attention to the shaft rotating direction. Inner diameter: 20 mm to 120 mm. Pressure: ≤0.8 MPa, Temperature: -20~220°C, Linear Speed: ≤15 m/s. Standards: DIN24960, ISO3069, GB6556-94. Widely used in many types of chemical pumps and clean water pumps.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/TC (Rotary) / SiC/TC (Stationary) / NBR/EPDM/Viton/Aflas/PTFE/FFKM (Elastomers) / SS304/SS316 (Springs) / 410S/SS304/SS316/SS316L (Metal Parts)
1 Variant
| Model | Materials | GA |
|---|---|---|
| Type 103 | Carbon/SiC/TC (Rotary) / SiC/TC (Stationary) / NBR/EPDM/Viton/Aflas/PTFE/FFKM (Elastomers) / SS304/SS316 (Springs) / 410S/SS304/SS316/SS316L (Metal Parts) | — |
Operating Conditions & Materials
Pressure
0.8 MPa or less
Temperature
-20 ~ 220 ºC
Linear Speed
15 m/s or less
Mediums
Weak acid, weak alkalis, water and solvents.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

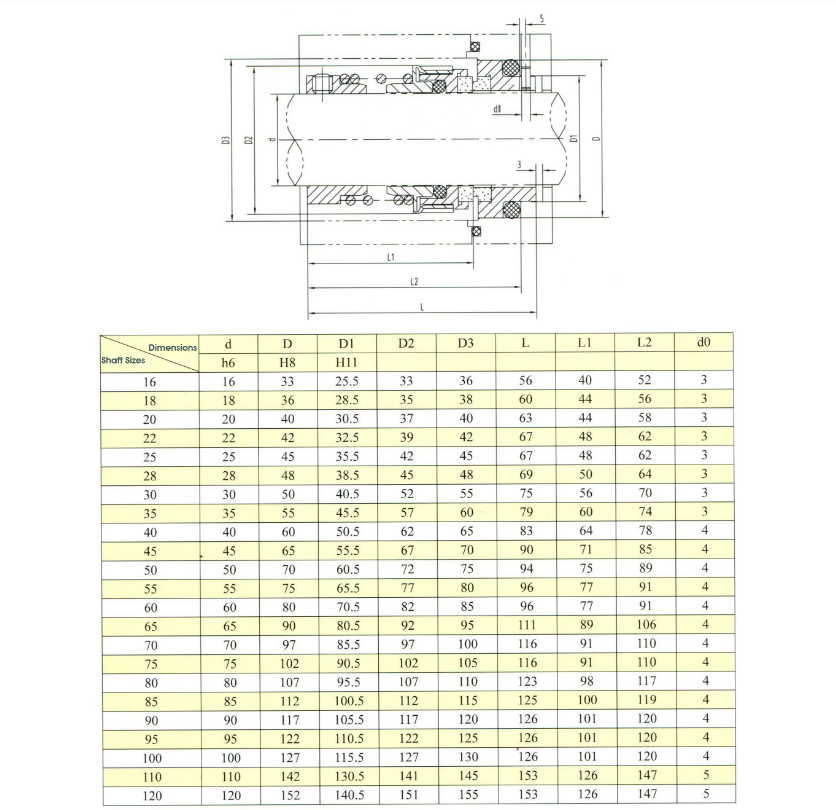

Installation Dimensions
