AS Type 108U
Single Spring Mechanical Seal for Water Pumps, Circulating Pumps and Vacuum Pumps. Single end, single spring, unbalanced, fixed rotary direction, spring coil driven. Simple structure, low cost, wide usage, stable and reliable. Inner diameter: 35 mm to 100 mm. Pressure: ≤0.8 MPa, Temperature: -20~150°C, Linear Speed: ≤15 m/s. Standards: ISO3069, GB6556, DIN24960.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/TC (Rotary) / Carbon/SiC/TC (Stationary) / NBR/EPDM/FFKM/Aflas/PTFE (Elastomers) / SS304/SS316 (Springs) / 2Cr13/SS304/SS316 (Metal Parts)
1 Variant
| Model | Materials | GA |
|---|---|---|
| Type 108U | SiC/TC (Rotary) / Carbon/SiC/TC (Stationary) / NBR/EPDM/FFKM/Aflas/PTFE (Elastomers) / SS304/SS316 (Springs) / 2Cr13/SS304/SS316 (Metal Parts) | — |
Operating Conditions & Materials
Pressure
0.8 MPa or less
Temperature
-20 ~ 150 ºC
Linear Speed
15 m/s or less
Mediums
Oil, water, amorphism acid, alkali, and organic solvents.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

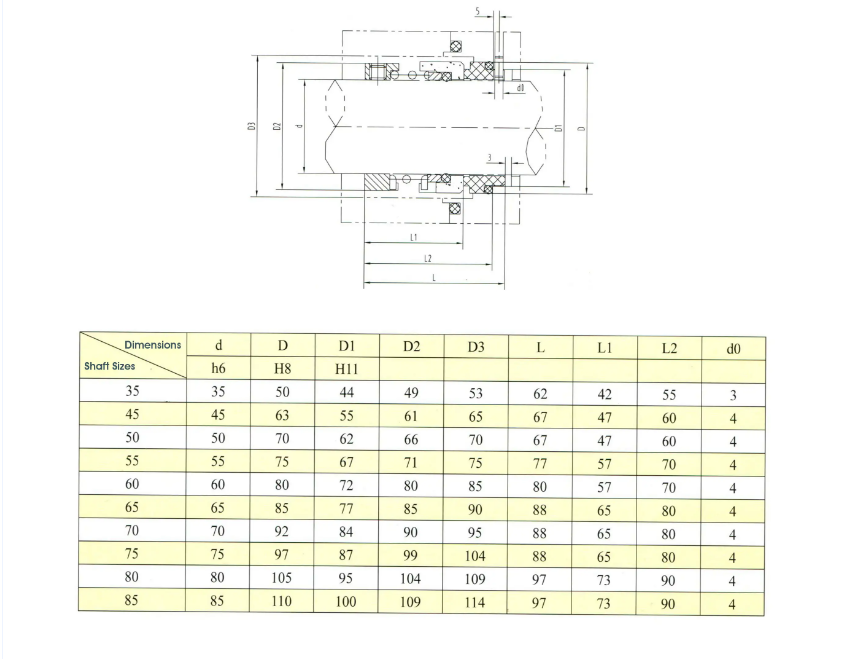

Installation Dimensions
