AS Type 202
AS 202 and 202F Multiple Spring Mechanical Seal for Vertical Mixers.
Structural Features: single end, multiple springs, unbalanced mechanical seal for kettles, mixers and agitators. This component has a simple structure and high reliability. The 202F has a split design of the stationary ring so it is easy to install, especially for big shaft diameter conditions, without uninstalling the decelerators and shafts the stationary ring can be easily installed.
Industrial Standards: HG5-752-78
Scopes of Application: mainly used in vertical mixers that does not have strict leakage requirements, such as fermentation cylinders, seeding tanks and reaction kettles.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SS316/Carbon/FKM/SS304/SS304
1 Variant
| Model | Materials | GA |
|---|---|---|
| Type 202 | SS316/Carbon/FKM/SS304/SS304 | — |
Operating Conditions & Materials
Pressure
0.1 to 0.25 MPa
Temperature
-20 ºC to 150 ºC (when the temperature is higher than 150 ºC, the cooling tank is required. This will increase the installation height by 100 mm)
Linear Speed
2 m/s or less
Mediums
Acid, alkali, oil and polymer suspensions.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Related Products

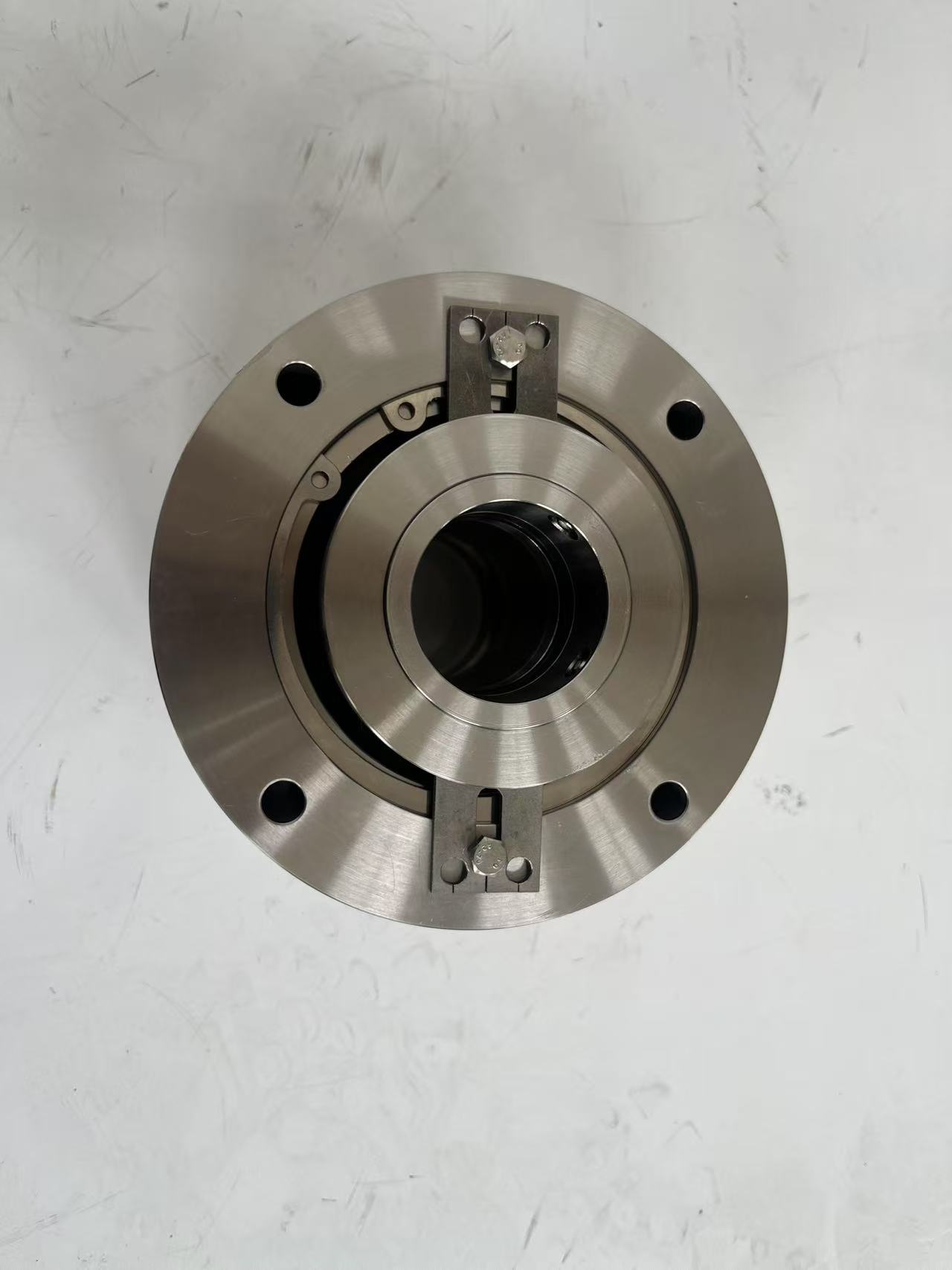

AS 32i
The costefficient Type 32 vessel seal is an outsidemounted balanced singlecomponent seal with selflubricating seal faces. Neither external cooling nor lubrication equipment or a supply system is required. Excellent for undemanding mixer applications and vacuum conditions.
AS 204B
204B Mechanical Seal for Top Driven Vertical Type Agitation Equipment, Fermentation Tanks, Seeding Tanks, Reaction Kettles and Sewage Treatment Devices.

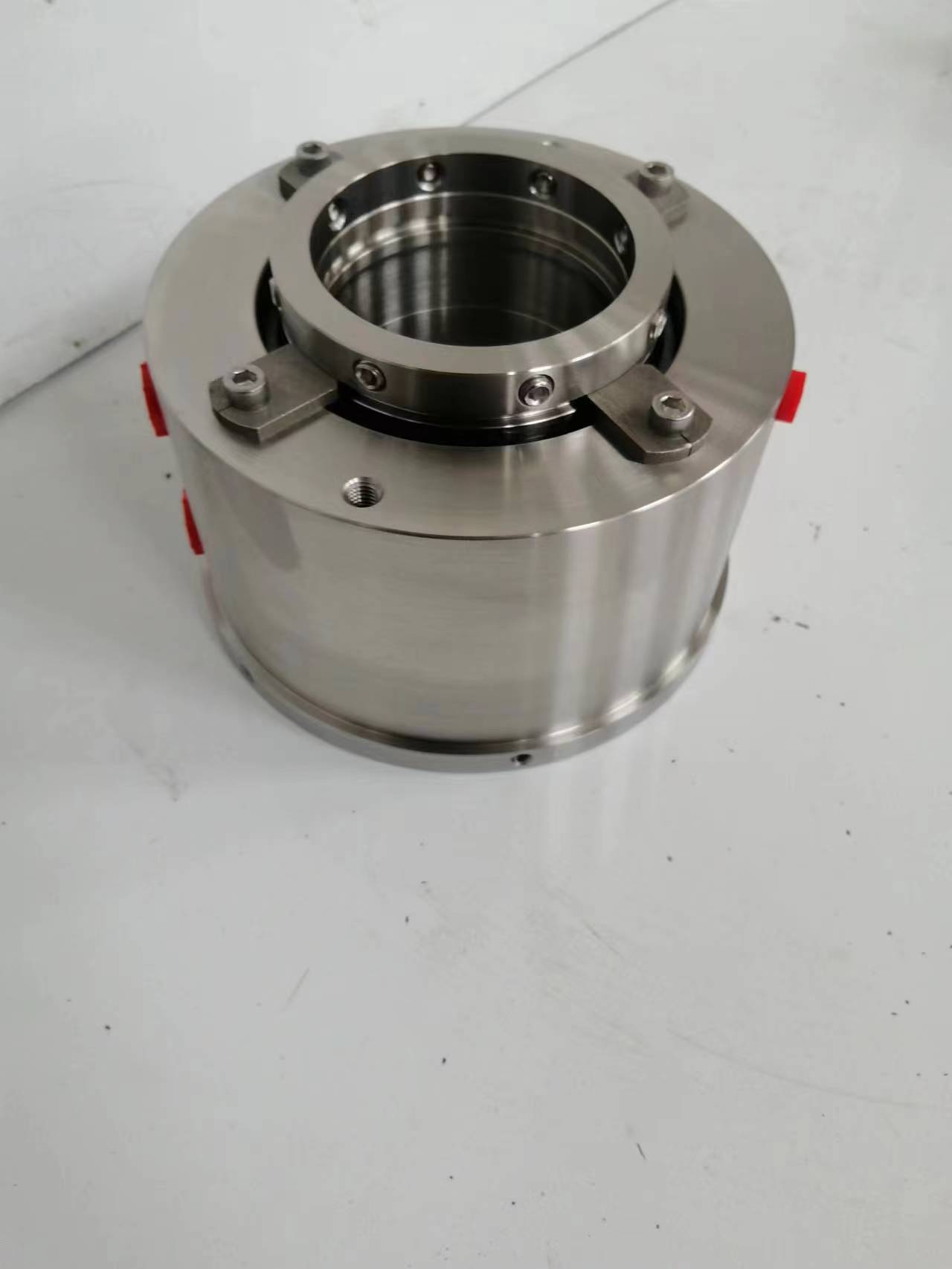

AS ESD34NY-80
Doubleacting liquid lubricated mechanical seal for low pressure applications up to 7 bar (abs.). Two identical pairs of seal rings in a backtoback arrangement. Suitable for high radial deflection of the shaft.
Explore Related Mechanical Seal Categories
Compare adjacent seal types to find the best fit for your service conditions, pressure and temperature range.

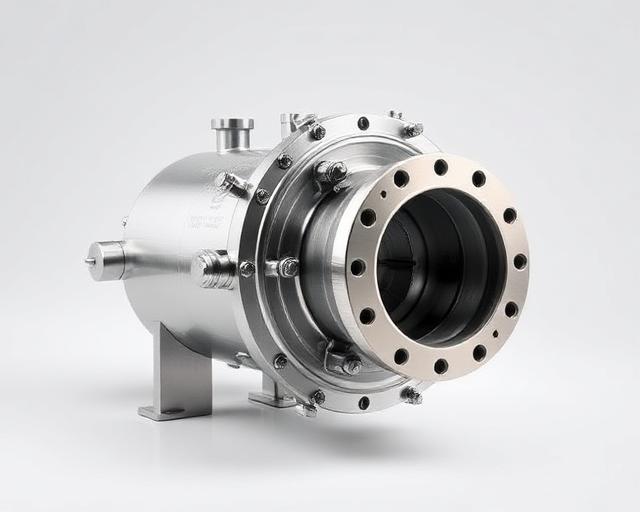

Mixer Seal — Horizontal
