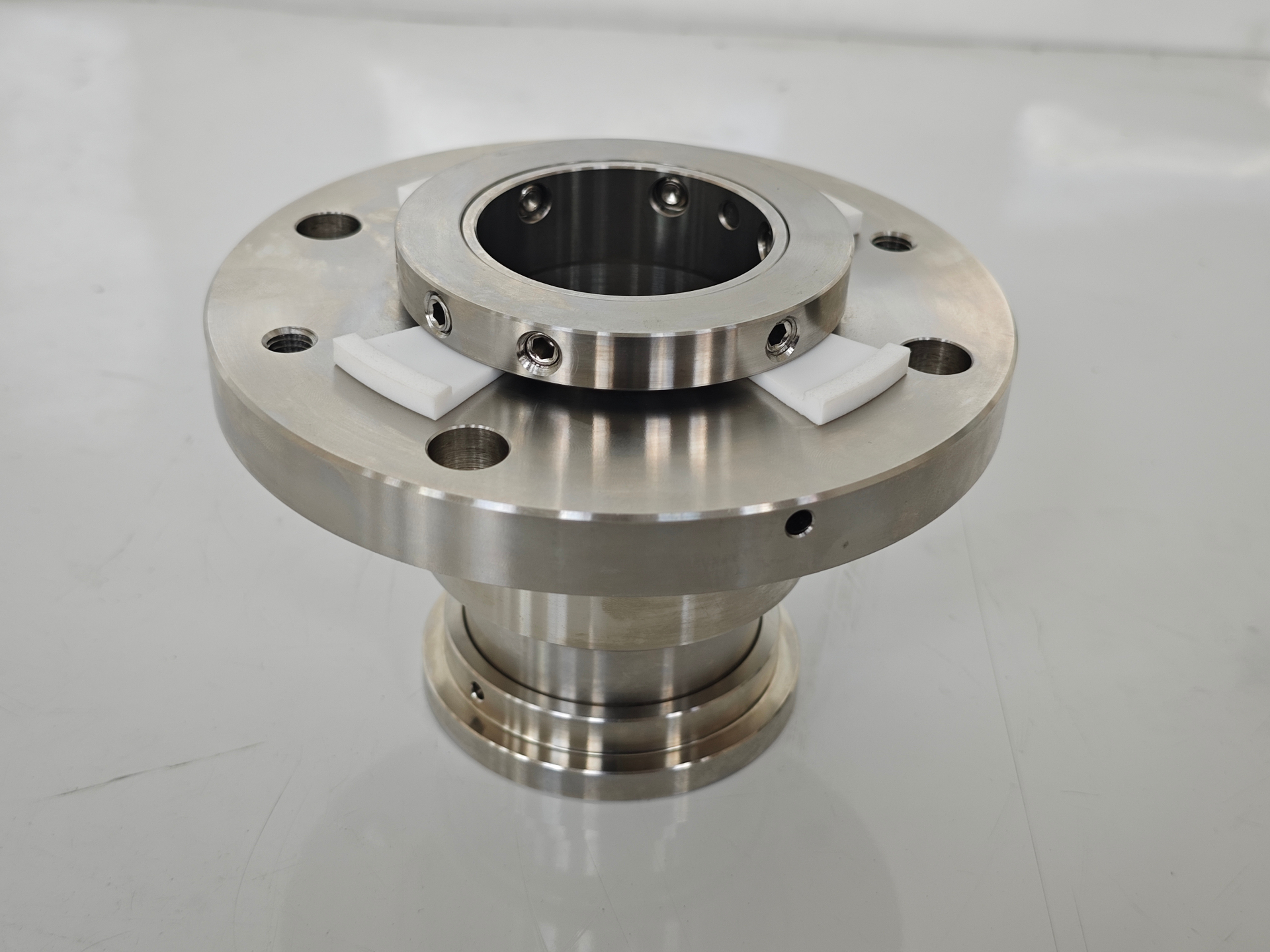

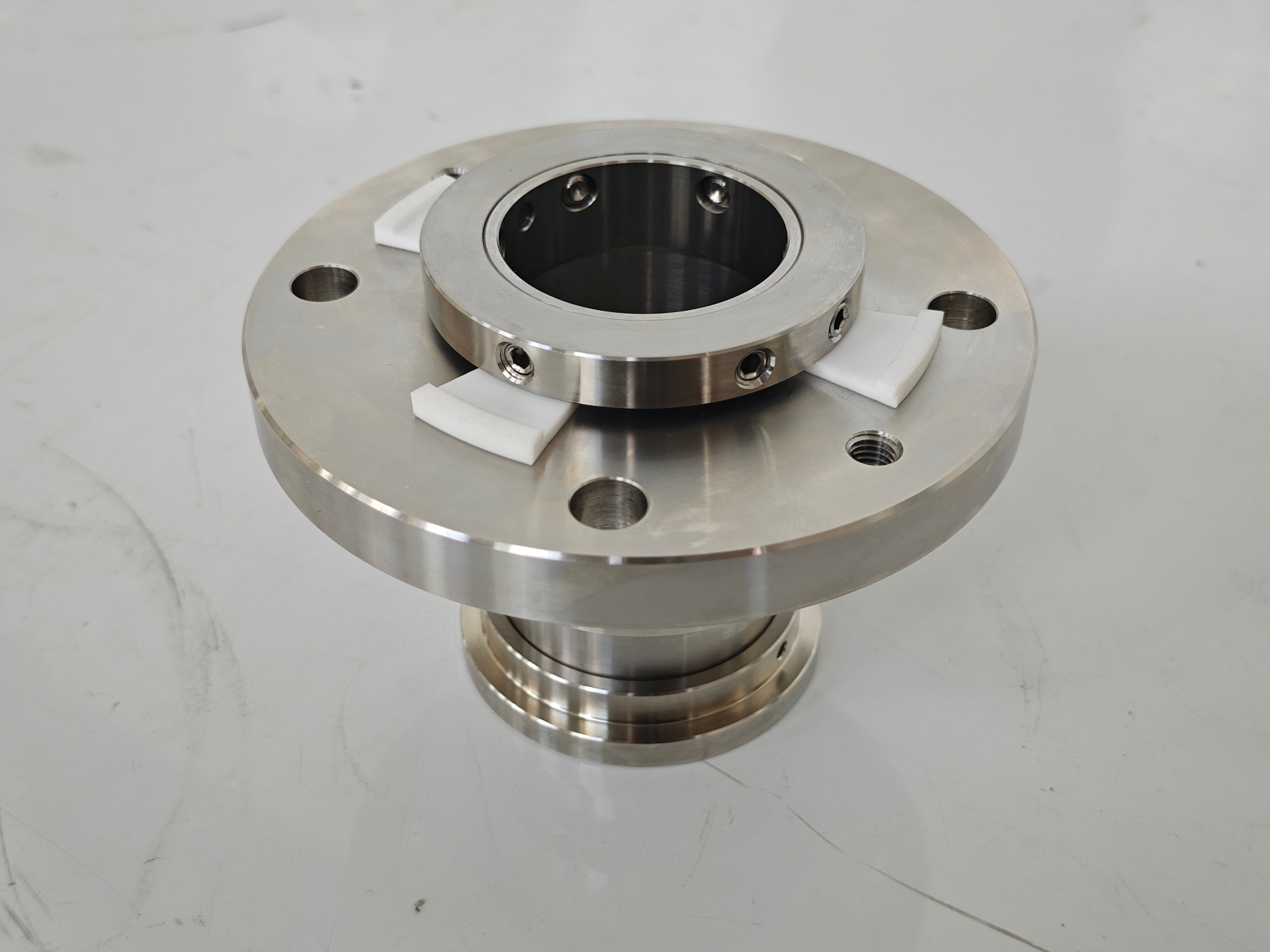

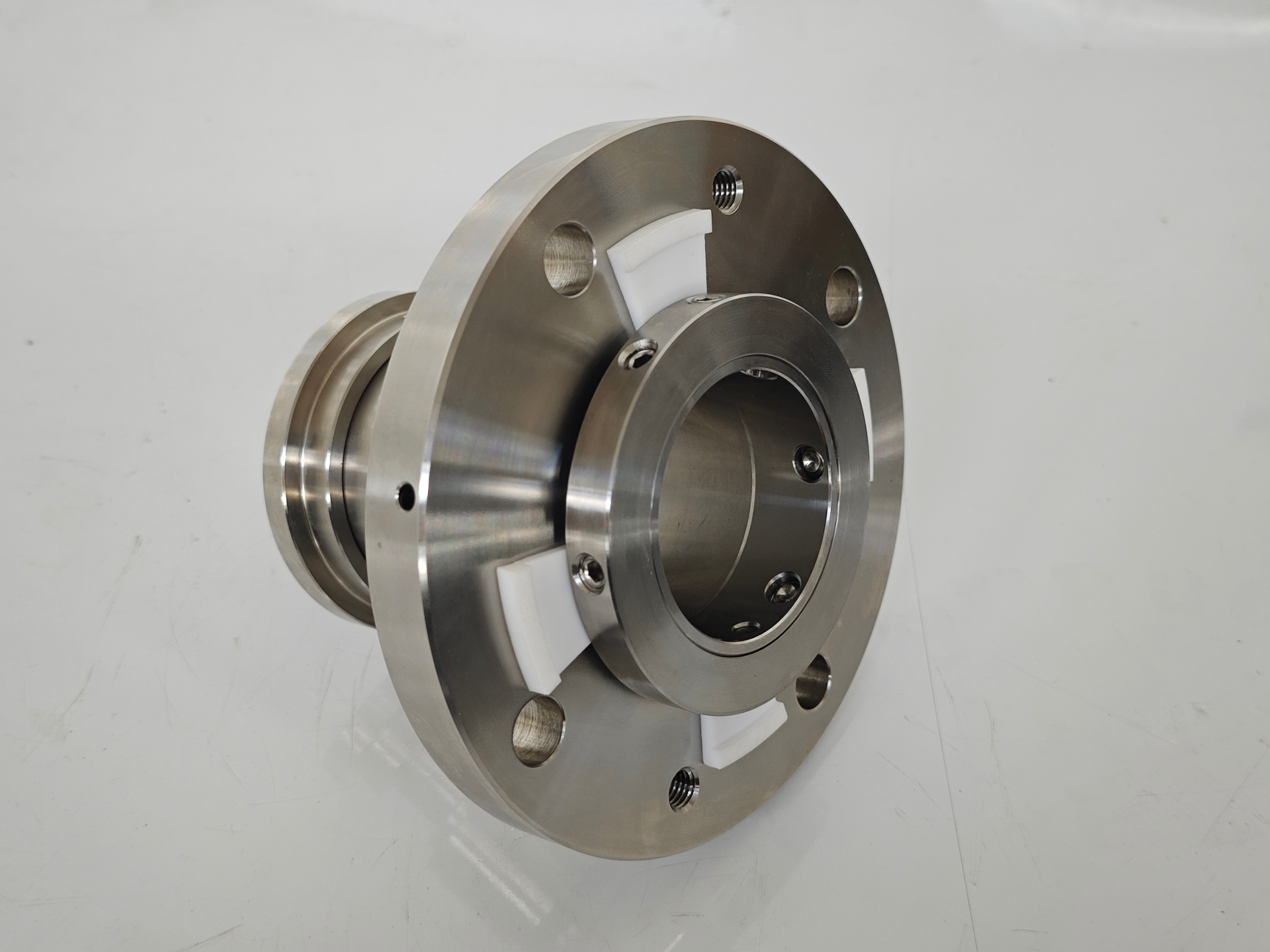

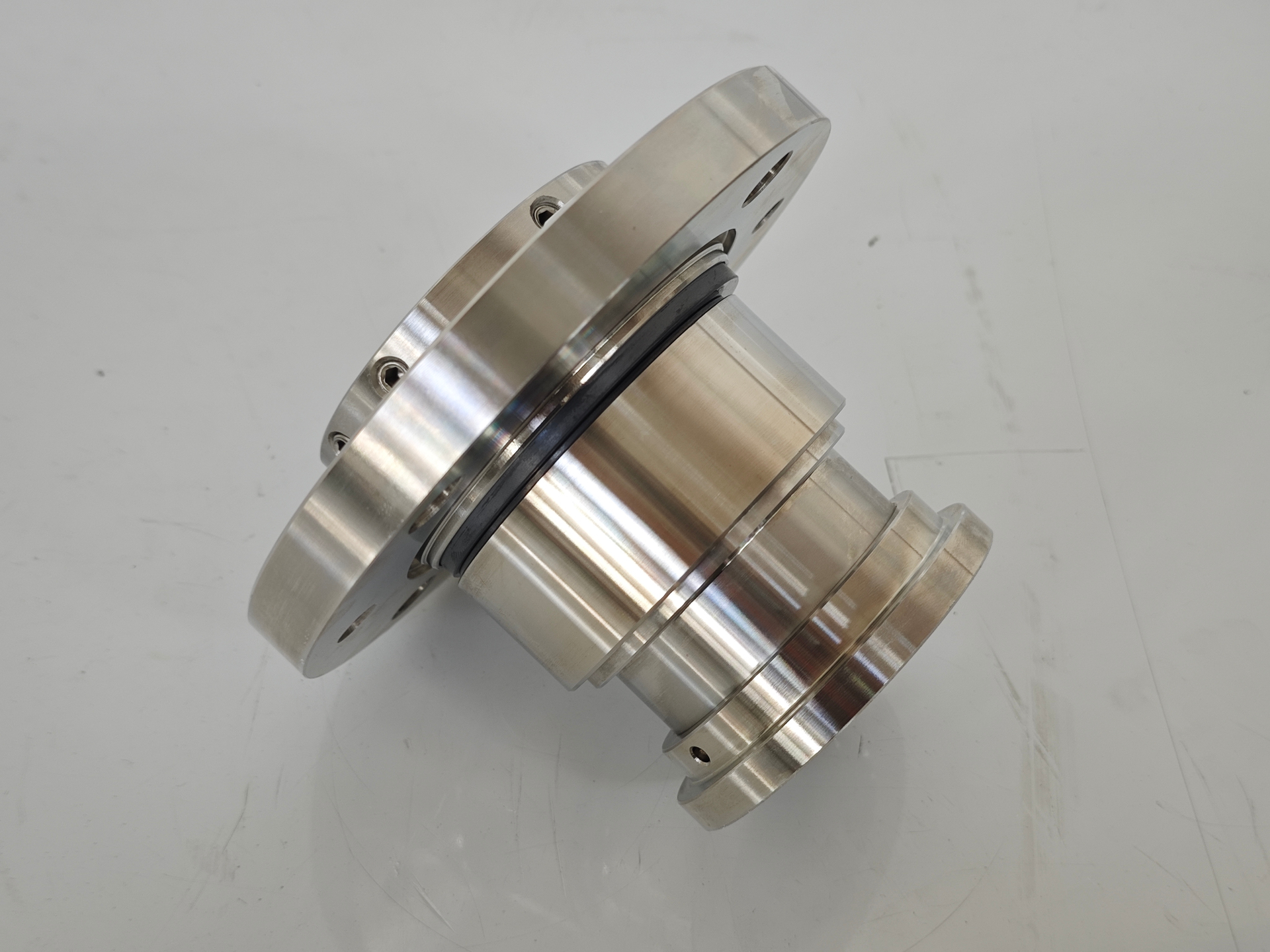

AS ZPP11-250
Designed for Sulzer ZPP 11-250 Pump with wide application in bio-based process development, cellulose-based bioproducts, chemical recovery, cooling water and more.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/SS316/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| ZPP11-250 | SiC/SiC/Viton/SS316/SS316 | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, sewage, industrial process fluids. Large shaft diameter applications.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
