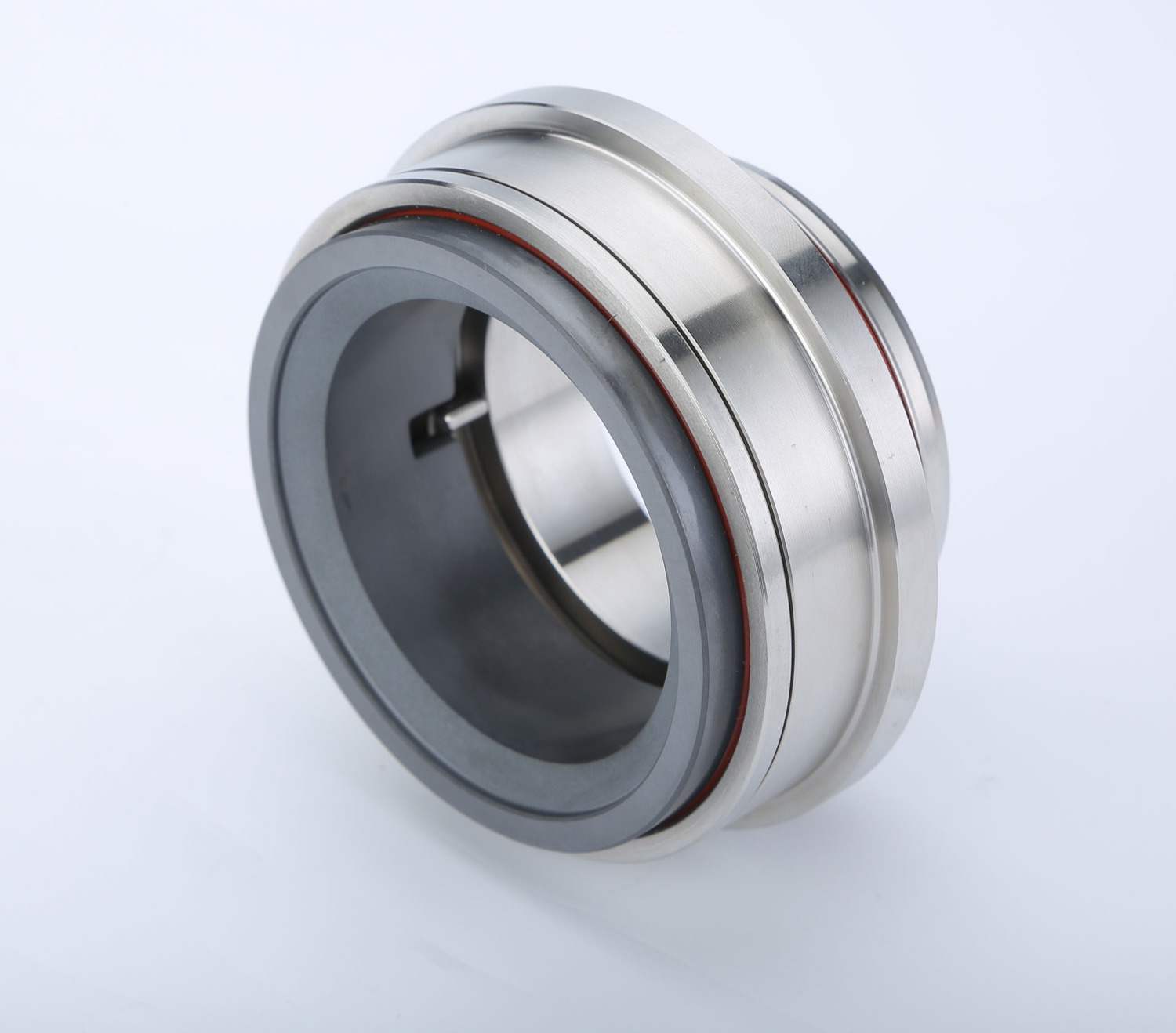

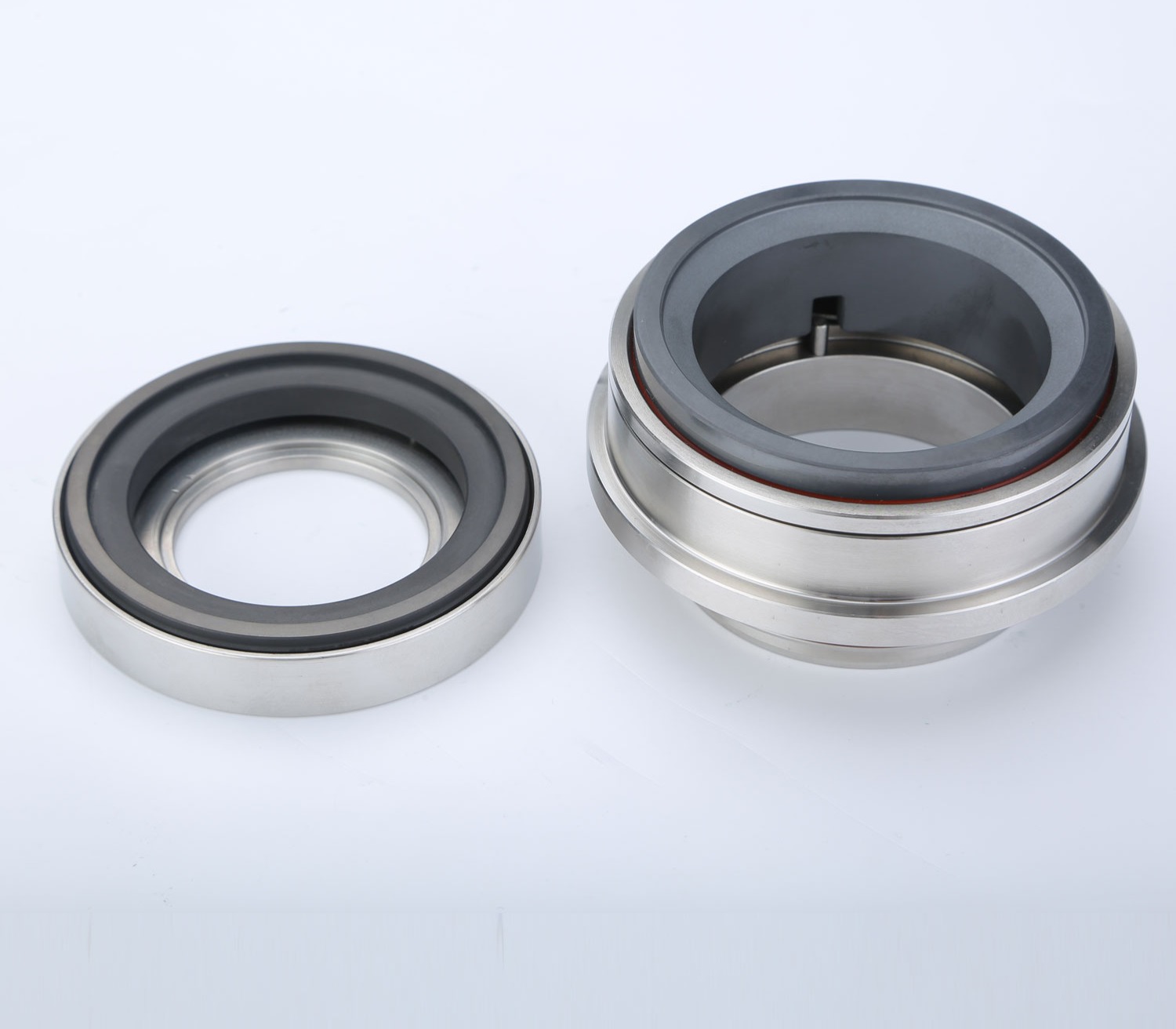

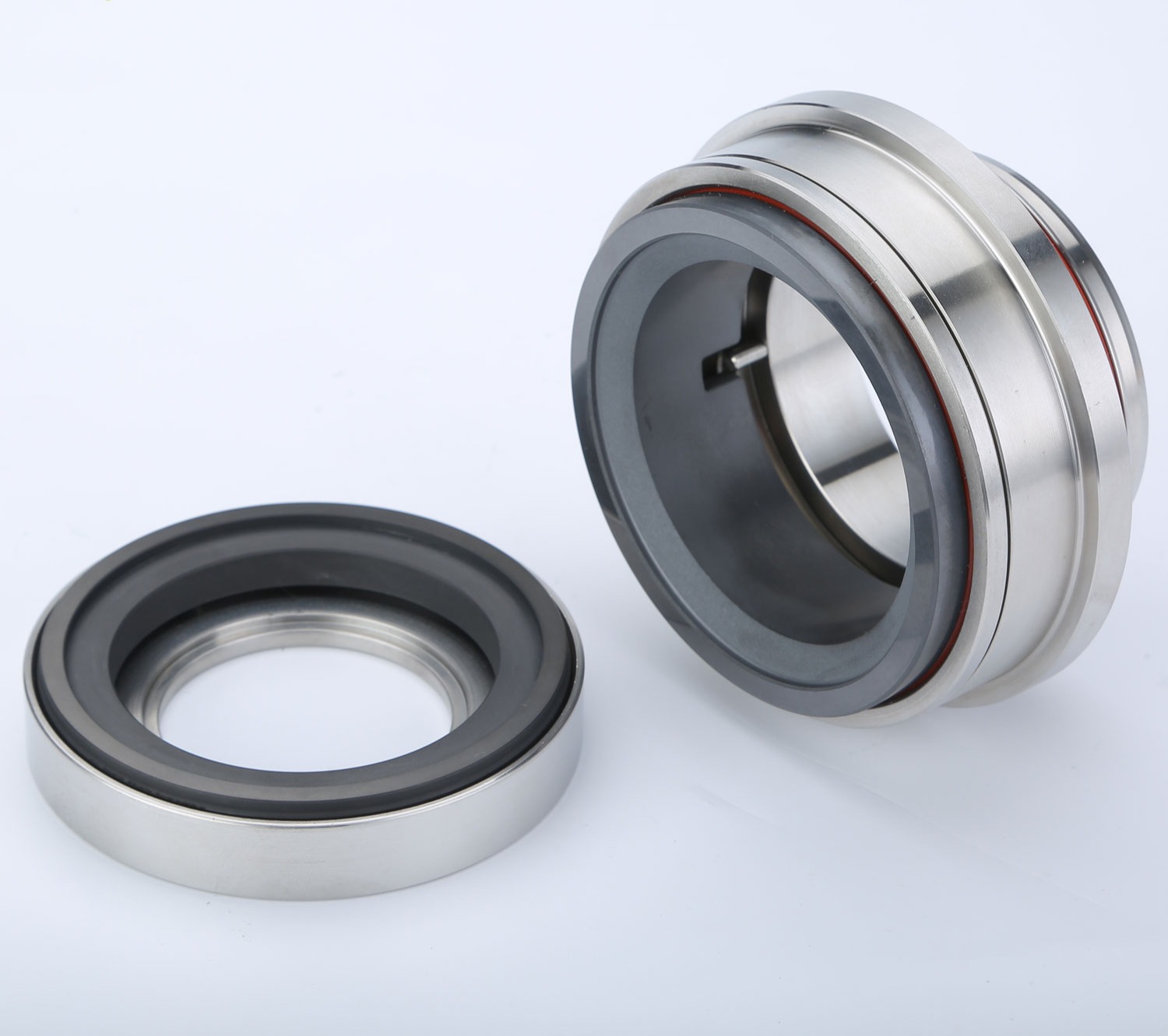

AS 587SP
Single-end, double balanced, independent direction of rotation, wave spring with spring protector. The still spring structure allows high speed operating conditions. The spring is separated from the sealed mediums so it will not be jammed. Simple structure, easy to install with stable performance. Widely used in paper pulp production, pharmacy, food processing, sewage treatment and chemical processing.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/SS316/SS316
5 Variants
| Model | Materials | GA |
|---|---|---|
| 587SP-38 | SiC/SiC/EPDM/SS316/SS316 | — |
| 587SP-48 | SiC/SiC/EPDM/SS316/SS316 | — |
| 587SP-65 | SiC/SiC/EPDM/SS316/SS316 | — |
| 0700/587/01/D41670 | SSiC/SSiC/Viton and NBR/HC276/SS316 | 0700/587/01/D41670 |
| 0900/587/02/D41969 | SiC/SiC/EPDM/SS316/SS316 | 0900/587/02/D41969 |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 180 ºC
Linear Speed
25 m/s or less
Mediums
Paper pulp, water, pharmacy, food processing, sewage treatment and chemical processing.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Related Products

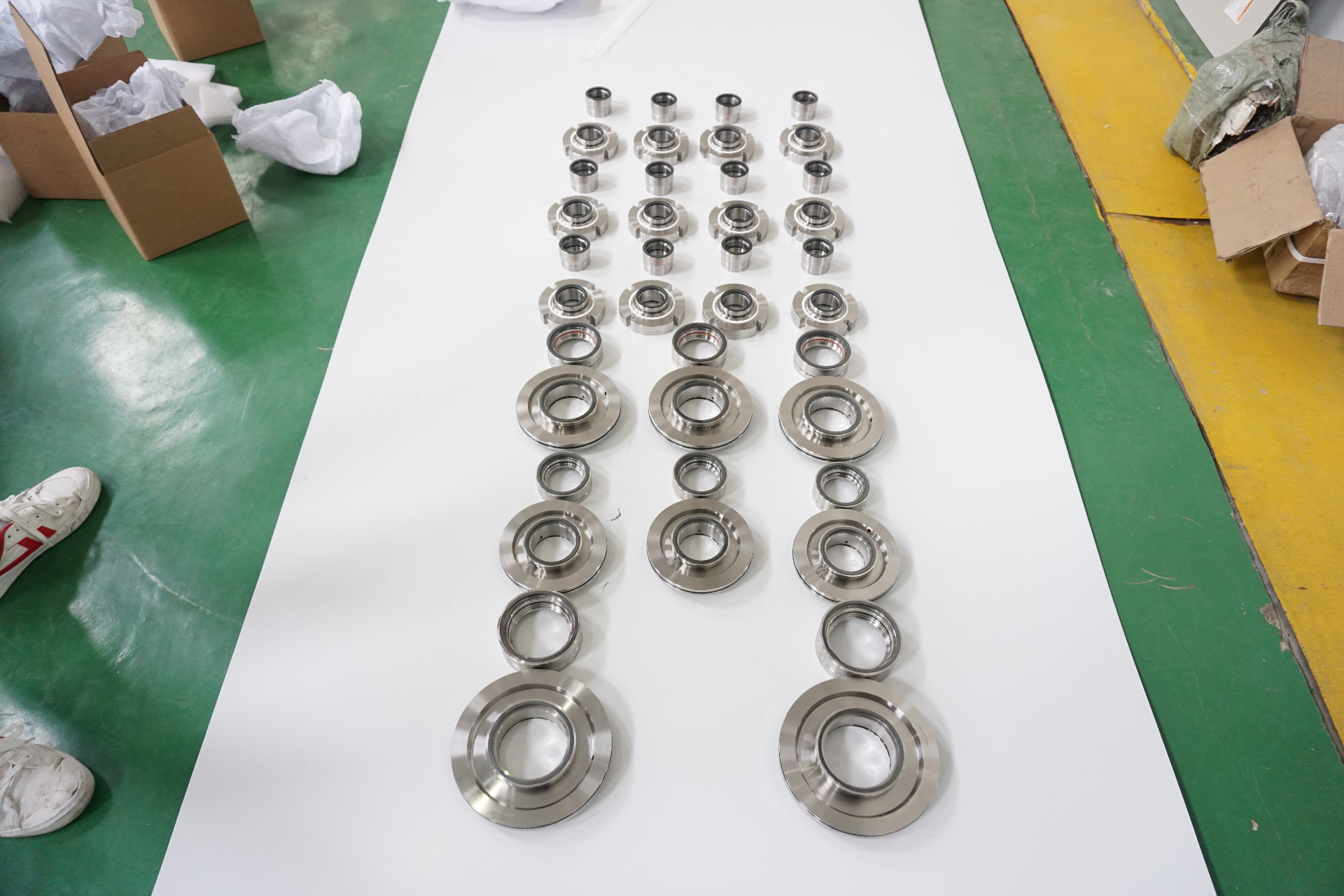

AS JCS1C
The JCS1C is a singleacting seal integrated into the target device. Developed for environmentally clean and lubricating liquids with low consistency (< 2%), such as water, various oils, solvents and pulp. The balanced design allows troublefree operation even in sudden pressure fluctuations, ensuring reliable and longlasting operation under demanding conditions.

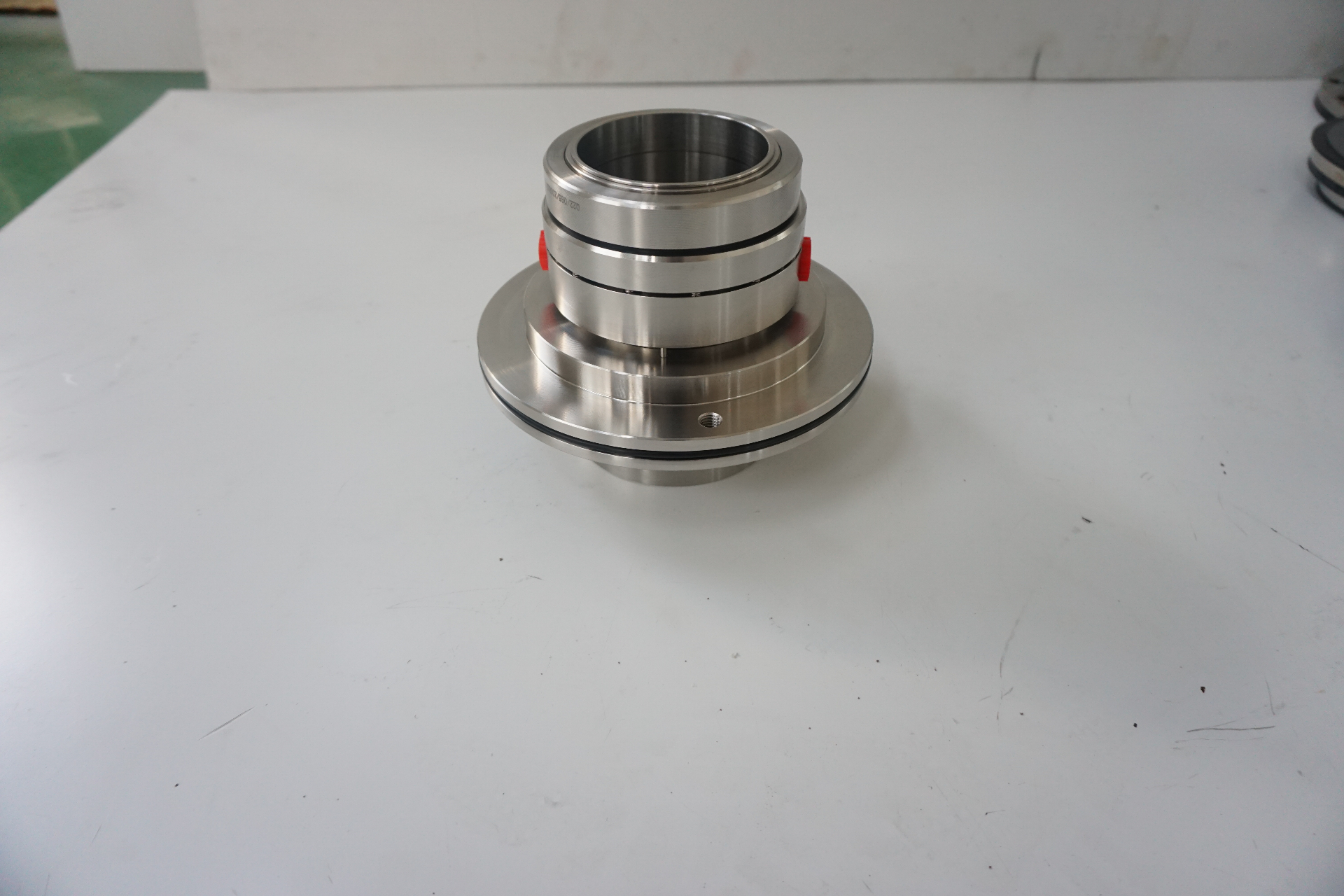

AS JCS2A
The JCS2A is a doubleacting seal integrated into the target device. Developed for pumps used for environmentally hazardous and abrasive liquids when operating limits of singleacting seals are exceeded. The doublebalanced design allows both pressurized and nonpressurized sealant use, ensuring reliable operation under demanding conditions.

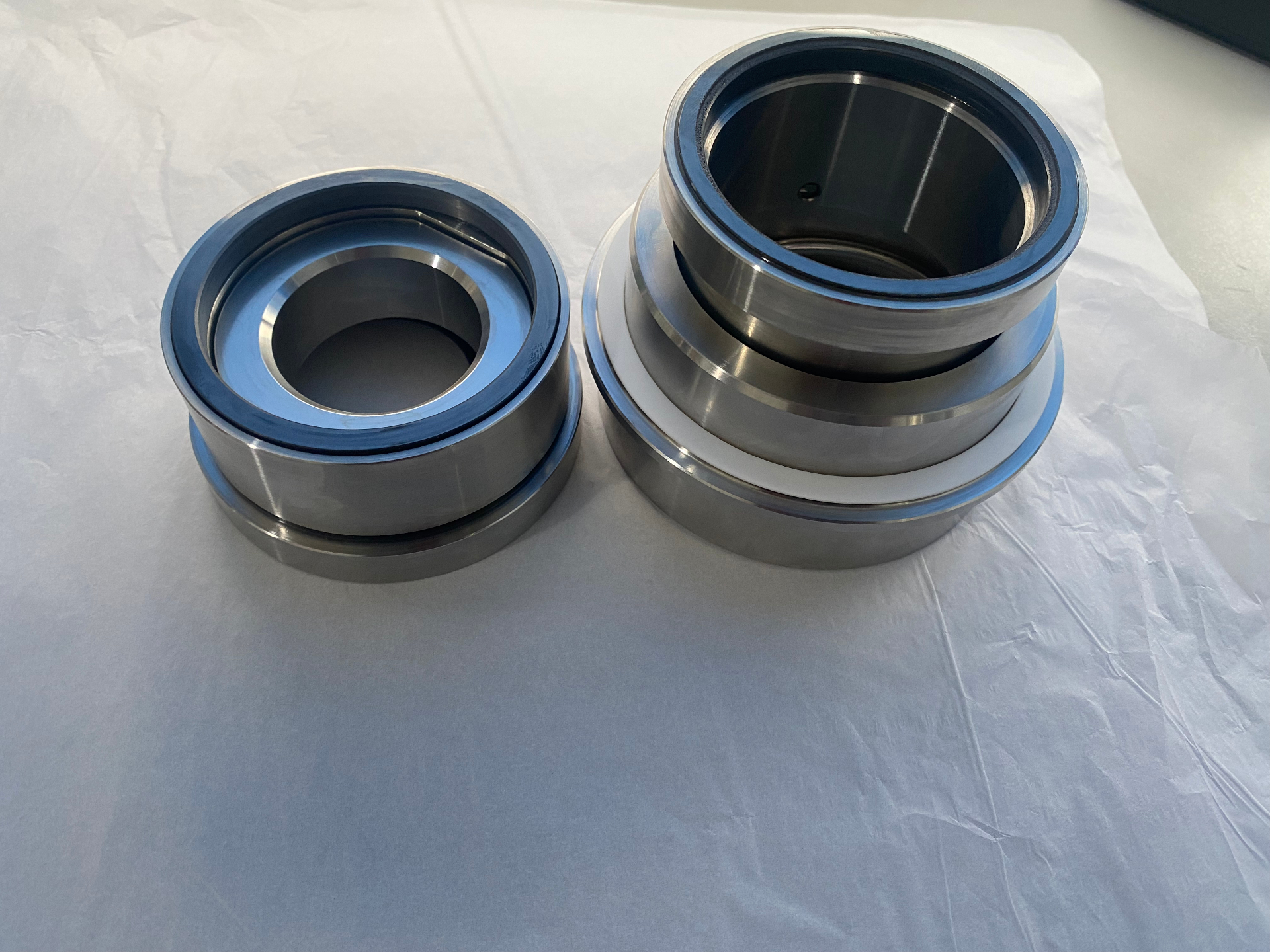

AS SE1-AP
The Type SE1 is a customerfitted single, balanced component or cartridge seal designed for clean and lubricating fluids such as water, oils, solvents and paper stock. Easy to install and maintain with advanced technical capabilities including a patented thermal method for seal face holding and an elastic thrust ring.
Explore Related Mechanical Seal Categories
Compare adjacent seal types to find the best fit for your service conditions, pressure and temperature range.

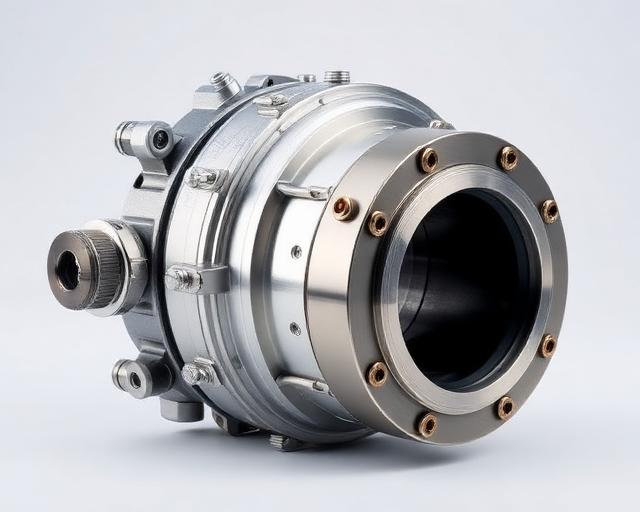

Pressure Screen & Refinery Seal
Heavy-duty double-acting seals for screens, knotters, and refinery equipment.

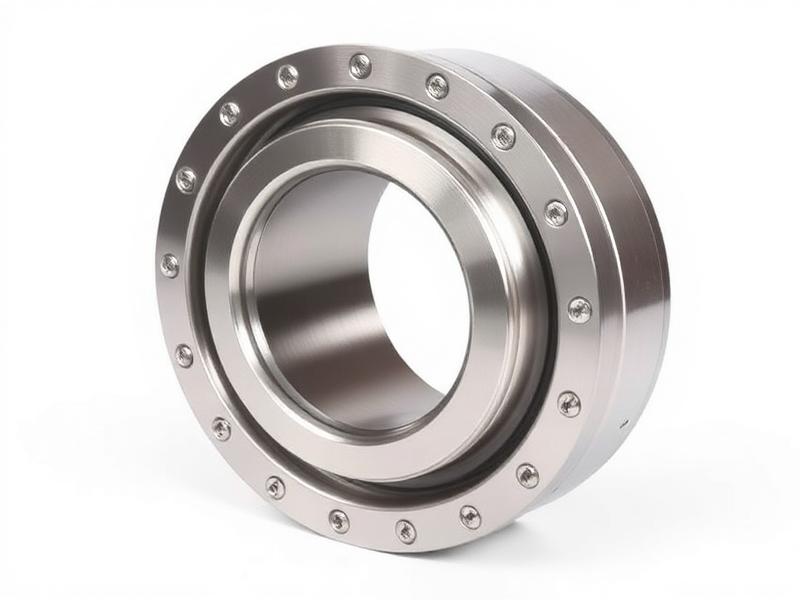

Slurry & FGD Seals
Heavy-duty mechanical seals for slurry pumps, FGD systems, and abrasive media applications.

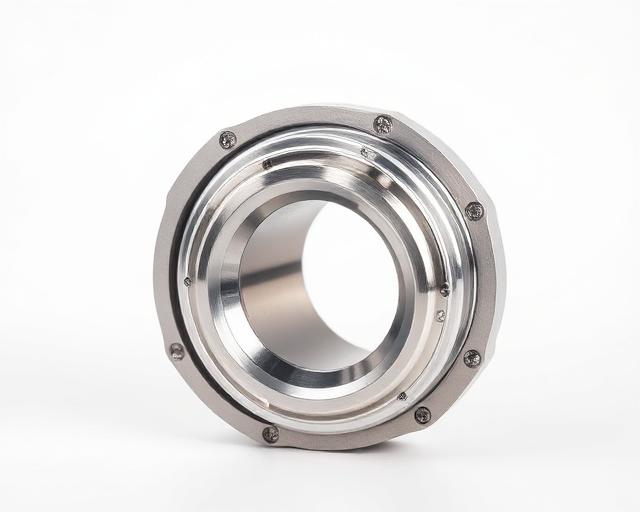

Spring Pusher Seal
