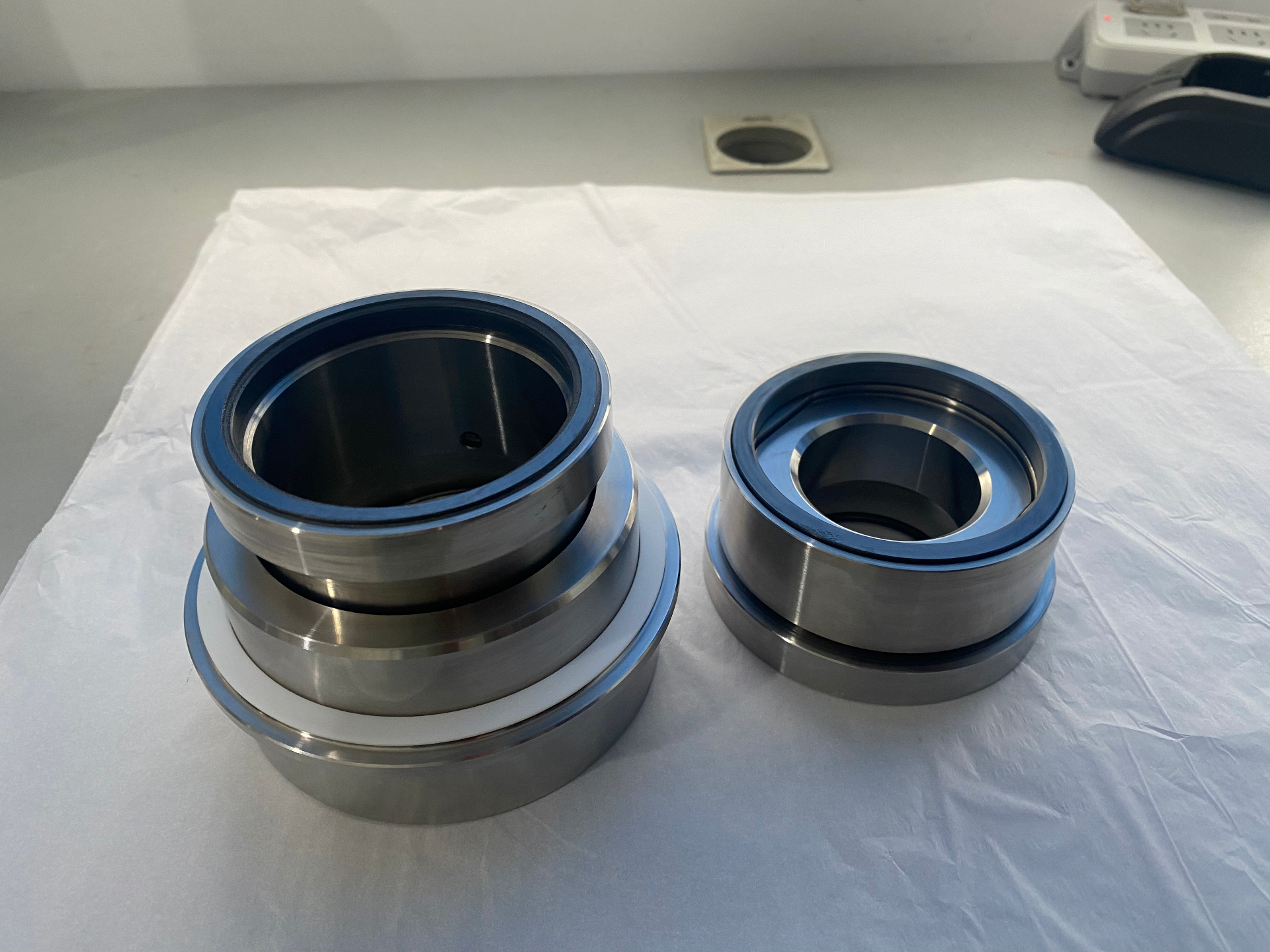

AS SE1-AP
The Type SE1 is a customer-fitted single, balanced component or cartridge seal designed for clean and lubricating fluids such as water, oils, solvents and paper stock. Easy to install and maintain with advanced technical capabilities including a patented thermal method for seal face holding and an elastic thrust ring.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/SS316/SS316
6 Variants
| Model | Materials | GA |
|---|---|---|
| SE1-AP-30-QREO | SiC/SiC/EPDM/SS316/SS316 | GA-305222 |
| SE1-AP-40-GREO | SiC/Carbon/EPDM/SS316/SS316 | GA-305316 |
| SE1-AP-50-GREO | SiC/Carbon/EPDM/SS316/SS316 | GA-305318 |
| SE1-AP-60-QREO | SiC/SiC/EPDM/SS316/SS316 | GA-305320 |
| SE1-AP-80-QRVO | SiC/SiC/Viton/SS316/SS316 | GA-305322 |
| SE1-AP-90-GREO | SiC/Carbon/EPDM/SS316/SS316 | GA-305324 |
Operating Conditions & Materials
Pressure
1.0 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Clean and lubricating fluids such as water, oils, solvents and paper stock.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
