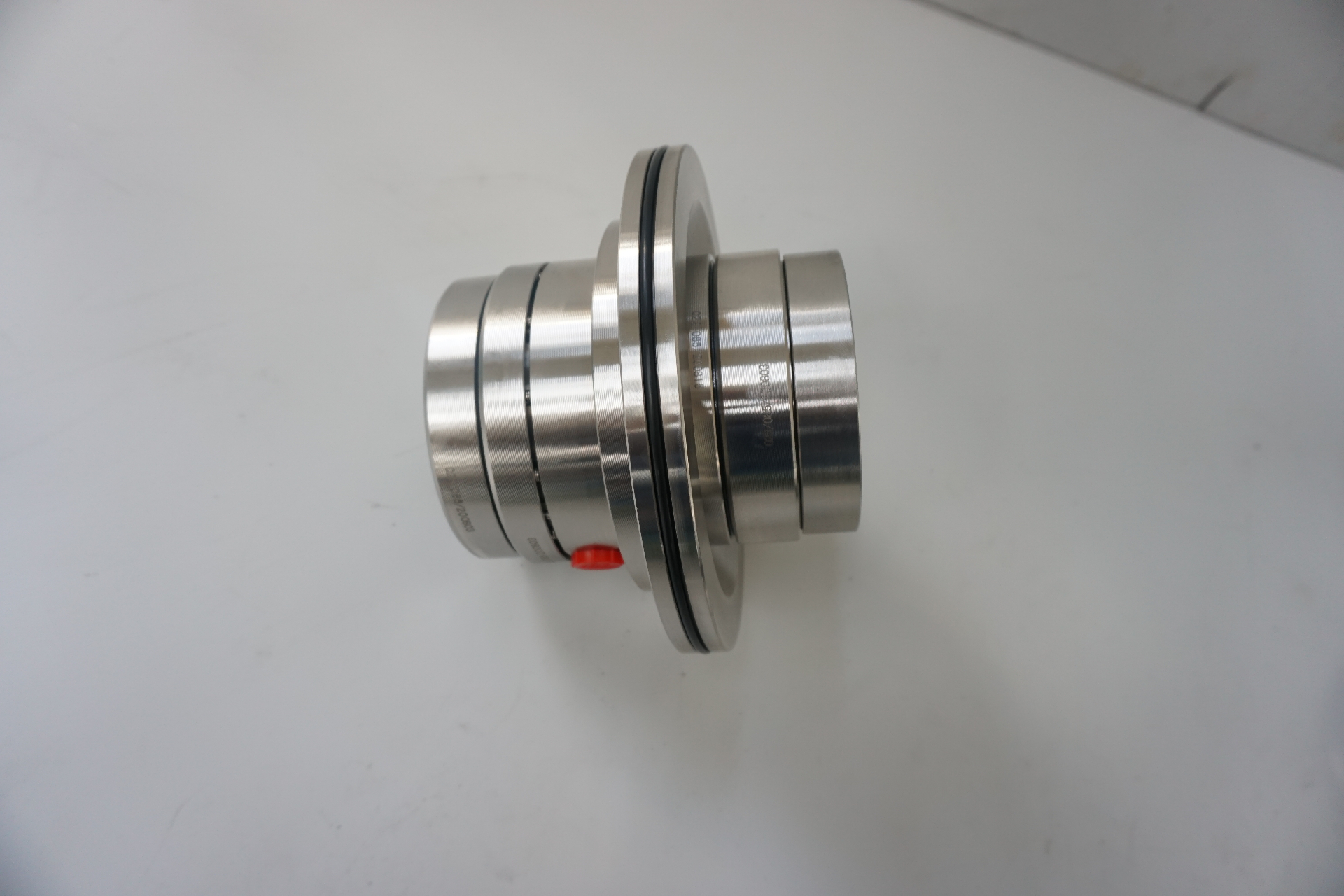

AS JCS2A
The JCS2A is a double-acting seal integrated into the target device. Developed for pumps used for environmentally hazardous and abrasive liquids when operating limits of single-acting seals are exceeded. The double-balanced design allows both pressurized and non-pressurized sealant use, ensuring reliable operation under demanding conditions.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM
17 Variants
| Model | Materials | GA |
|---|---|---|
| JCS2A-33-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-169744 |
| JCS2A-43-QRXQ | SiC/SiC/Aflas/HC276/SS316 - SiC/SiC/Aflas | GA-169747 |
| JCS2A-53-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-309594 |
| JCS2A-53-QRMQ | SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM | GA-309594-1 |
| JCS2A-53-QRVQ | SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton | GA-134055 |
| JCS2A-60-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-309592 |
| JCS2A-60-QRMQ | SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM | GA-309592-1 |
| JCS2A-60-QRVQ | SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton | GA-134065 |
| JCS2A-70-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-309572 |
| JCS2A-70-QRMQ | SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM | GA-309572-1 |
| JCS2A-70-QRVQ | SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton | GA-134126 |
| JCS2A-85-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-309600 |
| JCS2A-85-QRMQ | SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM | GA-309600-1 |
| JCS2A-85-QRVQ | SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton | GA-134155 |
| JCS2A-115-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-309609 |
| JCS2A-115-QRMQ | SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/SiC/EPDM | GA-309609-1 |
| JCS2A-115-QRVQ | SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton | GA-134421 |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 120 ºC
Linear Speed
15 m/s or less
Mediums
Environmentally hazardous and abrasive liquids, paper pulp, chemical slurries.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
