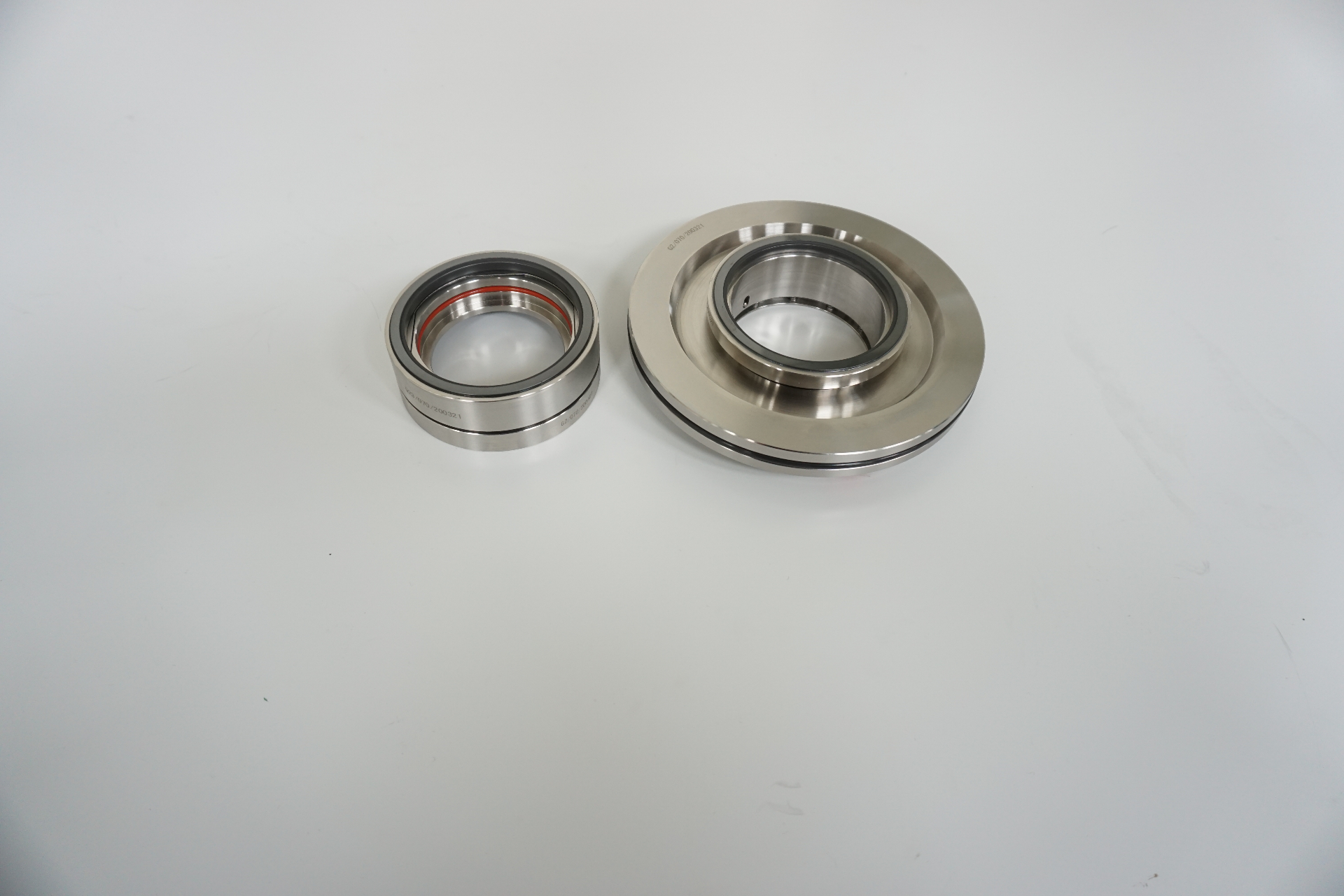

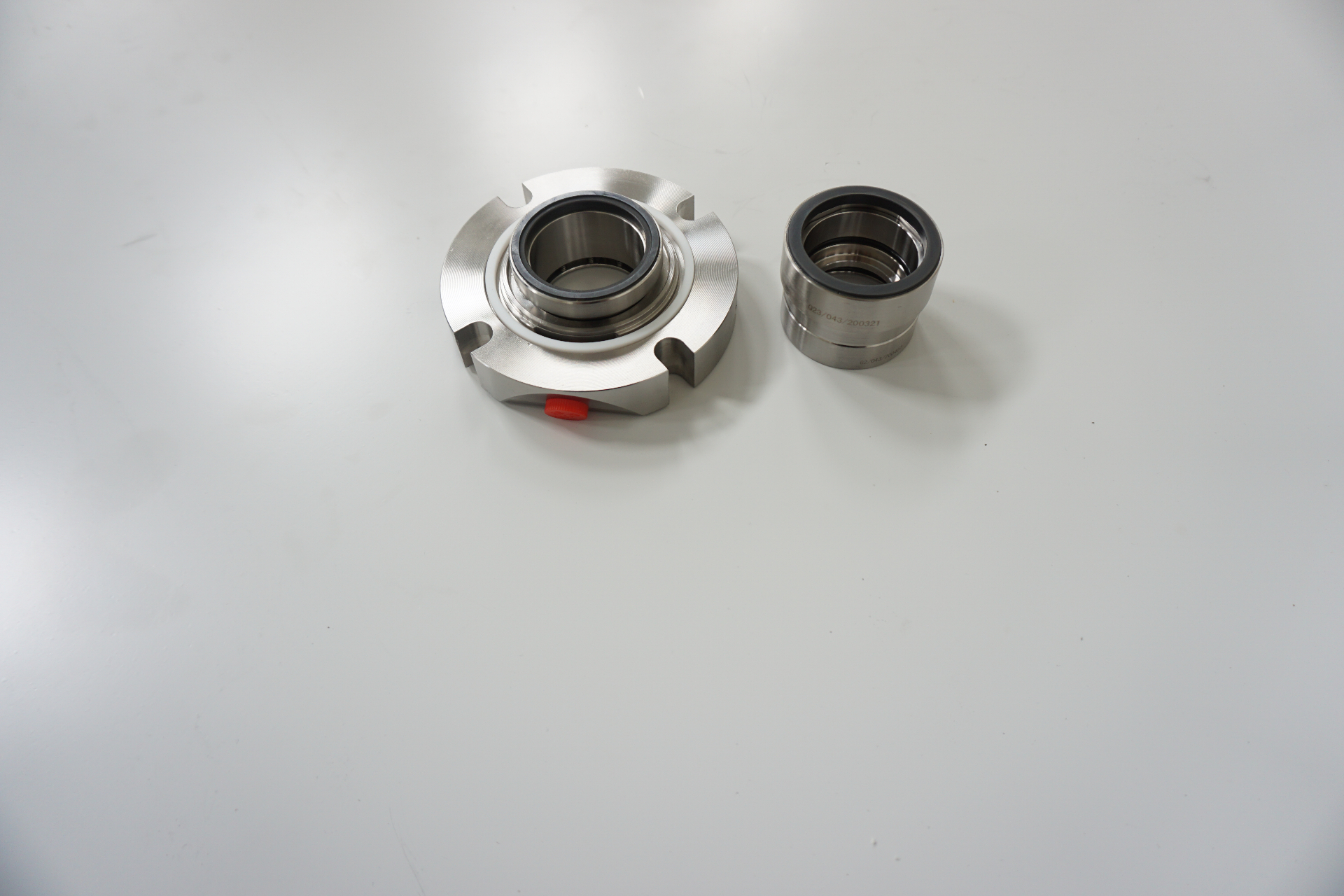

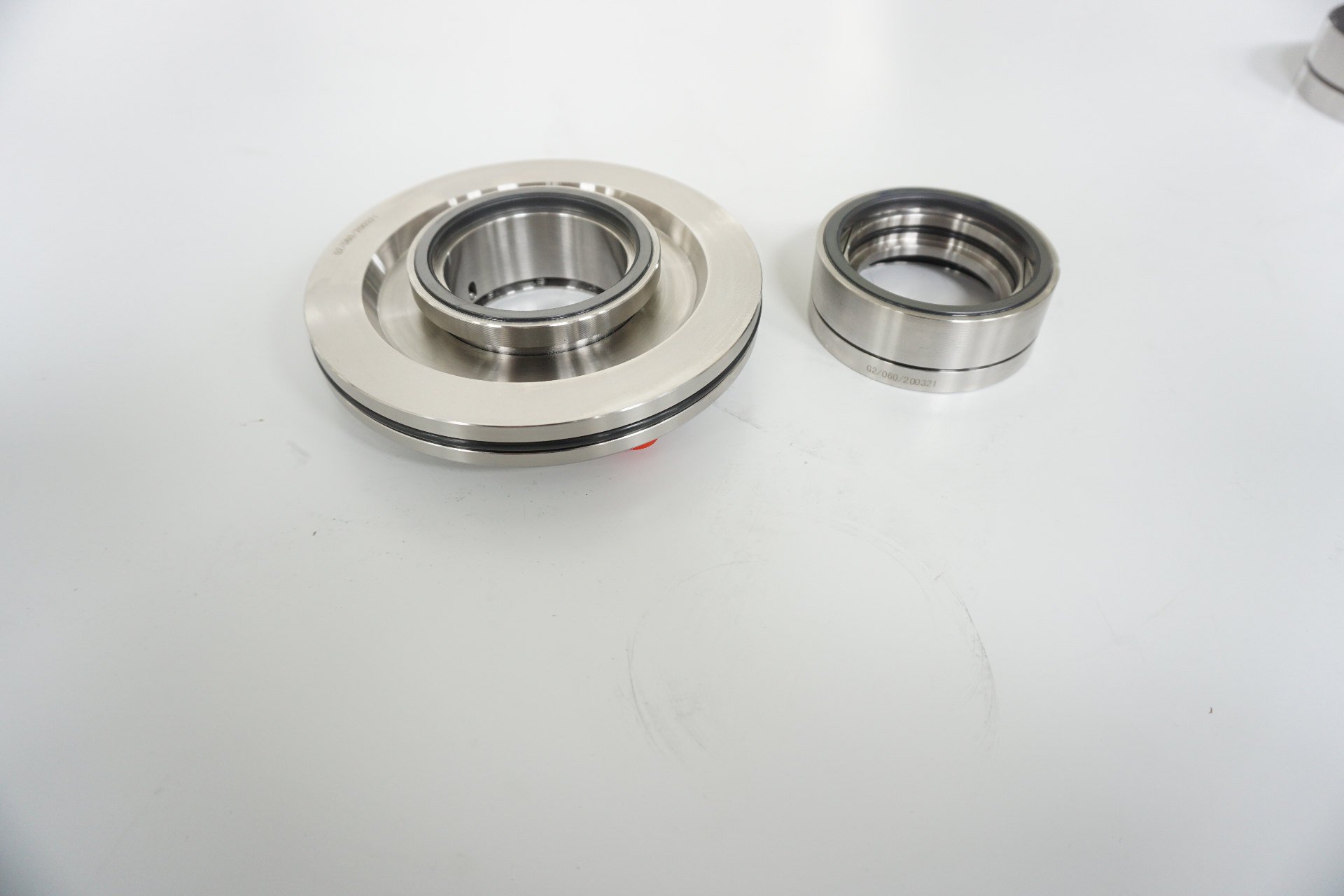

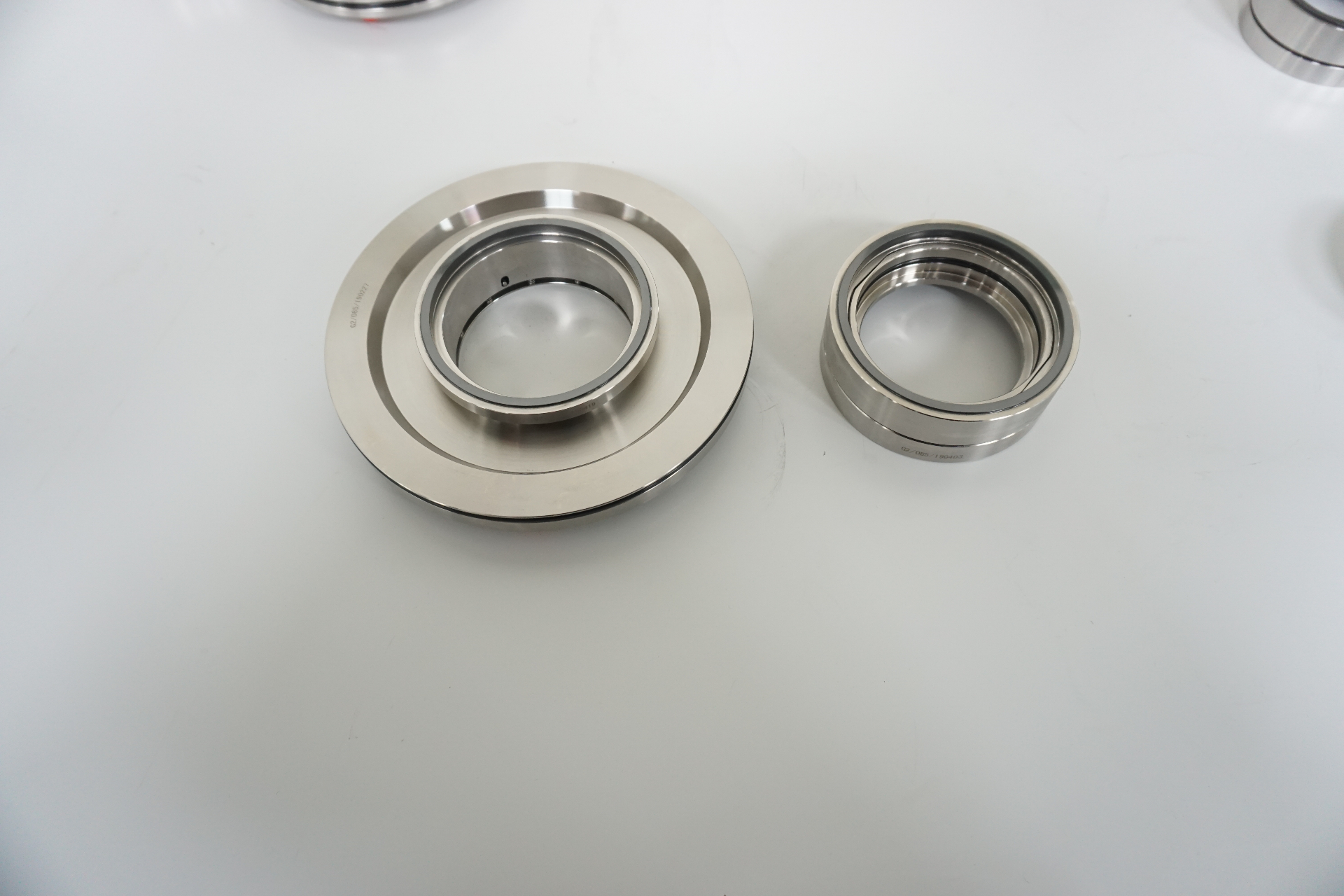

AS JCS1C
The JCS1C is a single-acting seal integrated into the target device. Developed for environmentally clean and lubricating liquids with low consistency (< 2%), such as water, various oils, solvents and pulp. The balanced design allows trouble-free operation even in sudden pressure fluctuations, ensuring reliable and long-lasting operation under demanding conditions.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS316
7 Variants
| Model | Materials | GA |
|---|---|---|
| JCS1C-33-QREO | SiC/SiC/EPDM/HC276/SS316 | GA-169742 |
| JCS1C-43-QREO | SiC/SiC/EPDM/HC276/SS316 | GA-192038 |
| JCS1C-53-QREO | SiC/SiC/EPDM/HC276/SS316 | GA-146865 |
| JCS1C-60-QREO | SiC/SiC/EPDM/HC276/SS316 | GA-148866 |
| JCS1C-70-QREO | SiC/SiC/EPDM/HC276/SS316 | GA-148885 |
| JCS1C-85-QREO | SiC/SiC/EPDM/HC276/SS316 | GA-144813 |
| JCS1C-115-QREO | SiC/SiC/EPDM/HC276/SS316 | GA-148931 |
Operating Conditions & Materials
Pressure
1.0 MPa or less
Temperature
-20 ~ 120 ºC
Linear Speed
15 m/s or less
Mediums
Environmentally clean and lubricating liquids with low consistency (< 2%), water, oils, solvents and pulp.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
