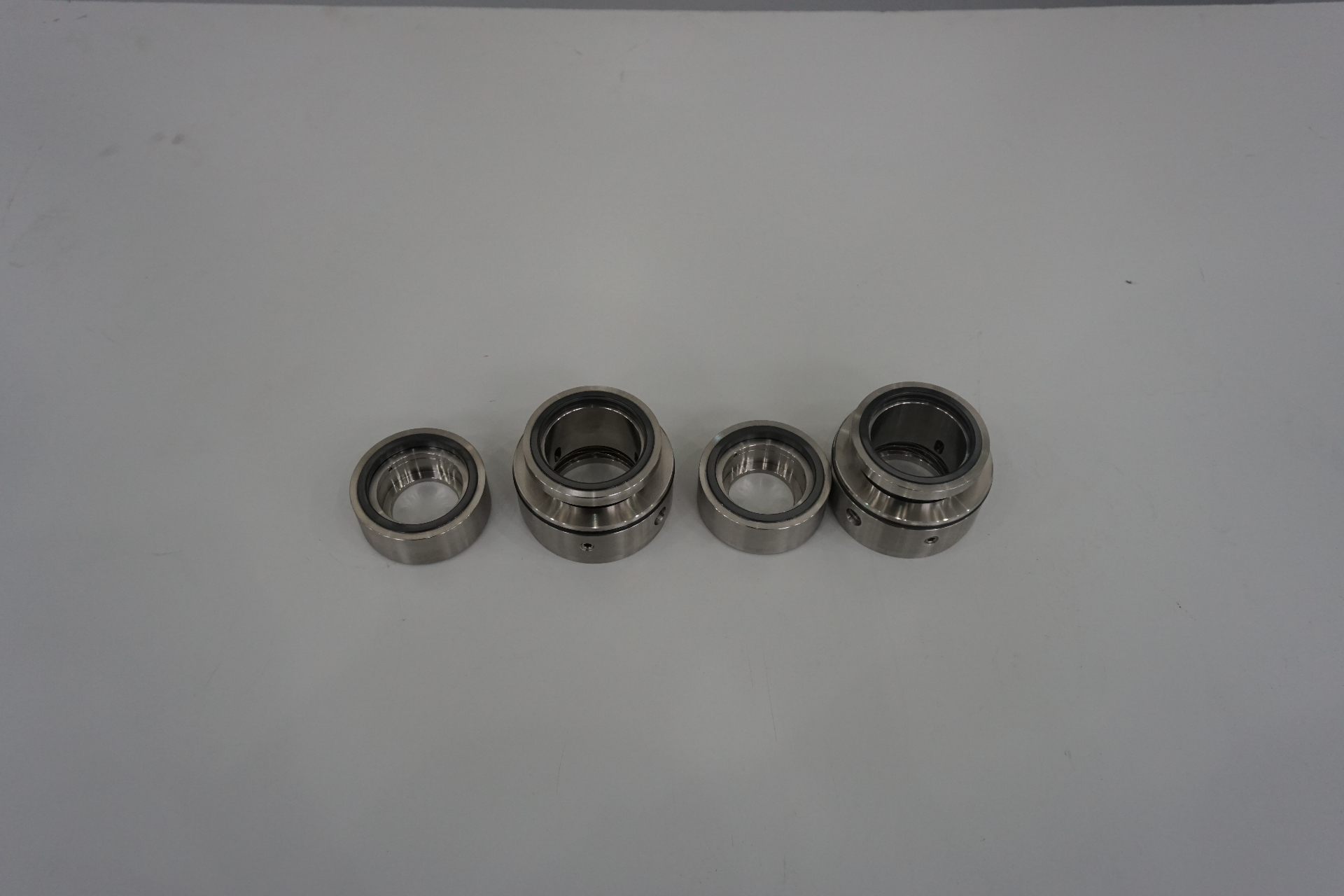

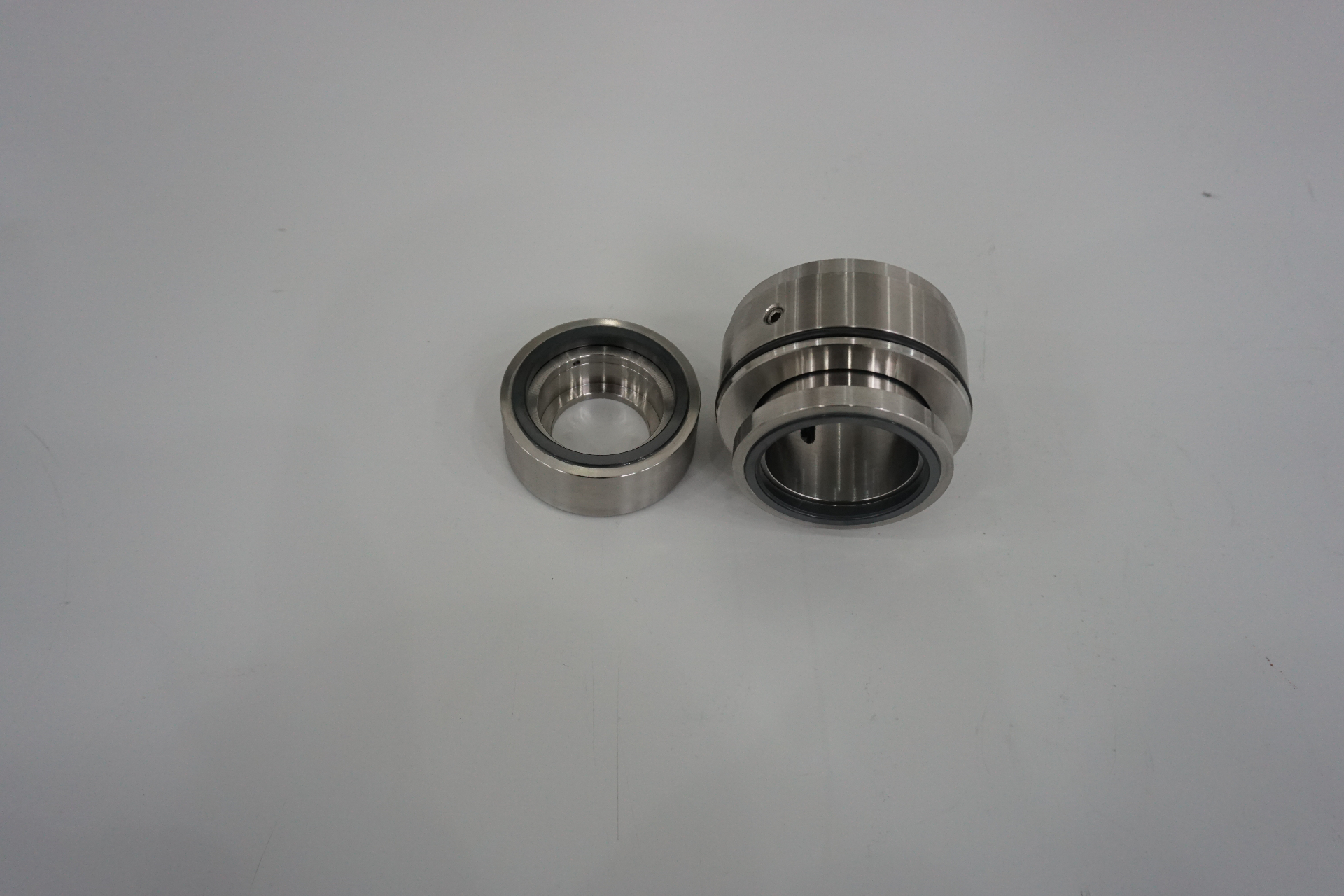

AS JCS1
JCS1 is a rugged, pump-integrated single seal designed for clean and lubricating fluids such as water, oils, solvents and low-consistency paper stocks. Easy to install from the impeller side with advanced technical capabilities including a patented drive mechanism for seal faces and self-aligning, elastically mounted thrust ring.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/Carbon/FEP (PTFE)/SS316/SS316
5 Variants
| Model | Materials | GA |
|---|---|---|
| JCS1-30-GRMO | SiC/Carbon/FEP (PTFE)/SS316/SS316 | GA-309140 |
| JCS1-40-QRMO | SiC/SiC/FEP (PTFE)/SS316/SS316 | GA-309141 |
| JCS1-50-GRMO | SiC/Carbon/FEP (PTFE)/SS316/SS316 | GA-309142 |
| JCS1-60-GRMO | SiC/Carbon/FEP (PTFE)/SS316/SS316 | GA-309143 |
| JCS1-80-GRMO | SiC/Carbon/FEP (PTFE)/SS316/SS316 | GA-309144 |
Operating Conditions & Materials
Pressure
1.0 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Clean and lubricating fluids such as water, oils, solvents and low-consistency paper stocks.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
