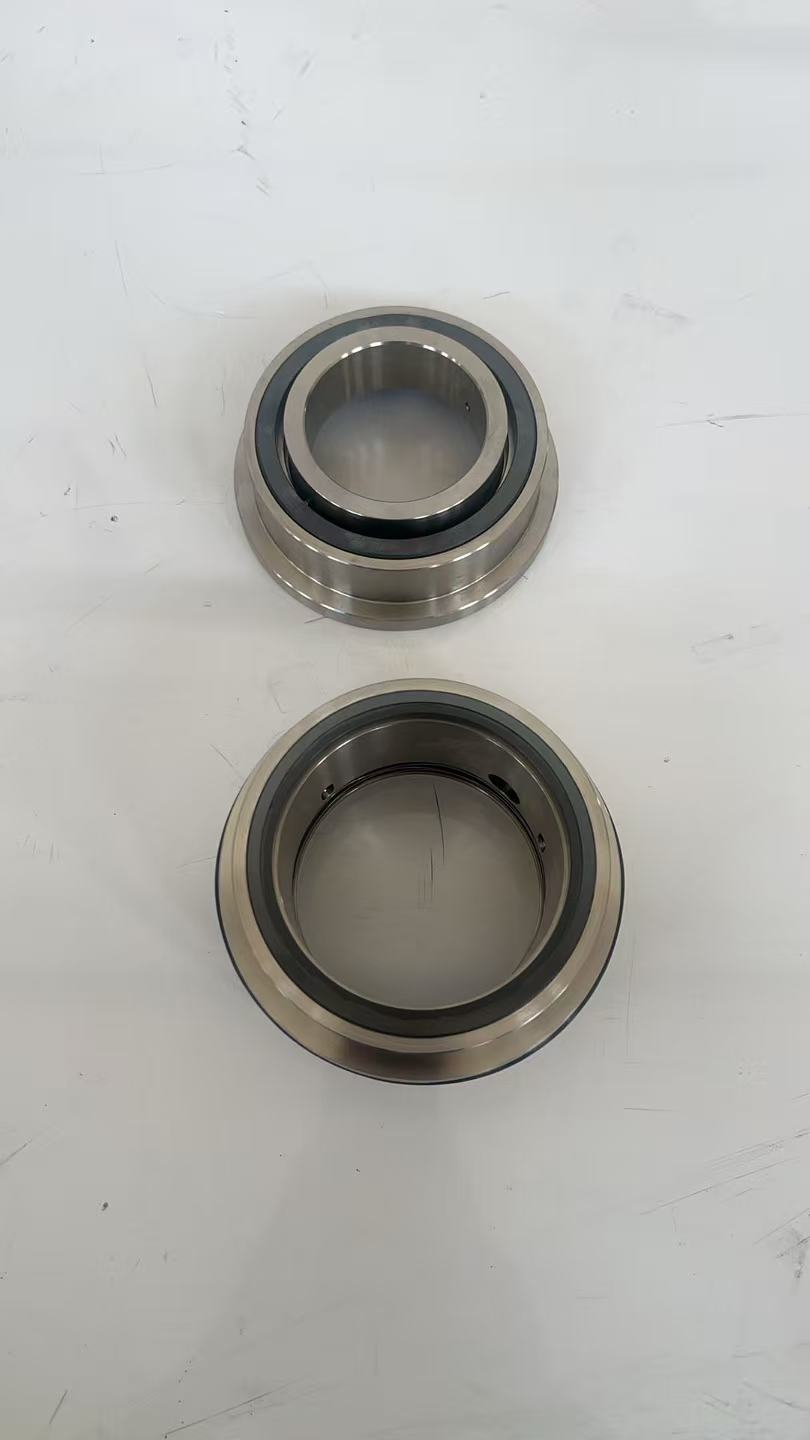

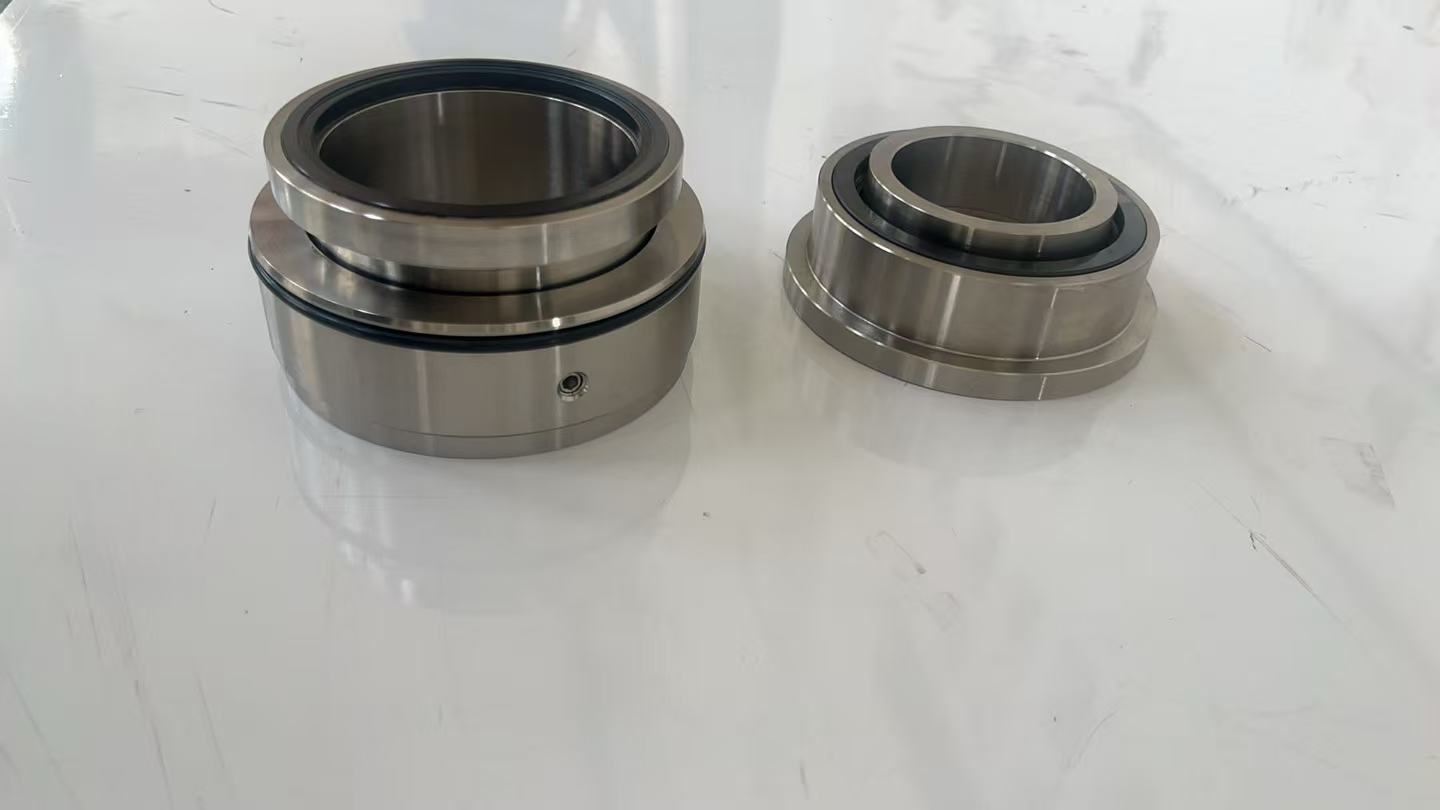

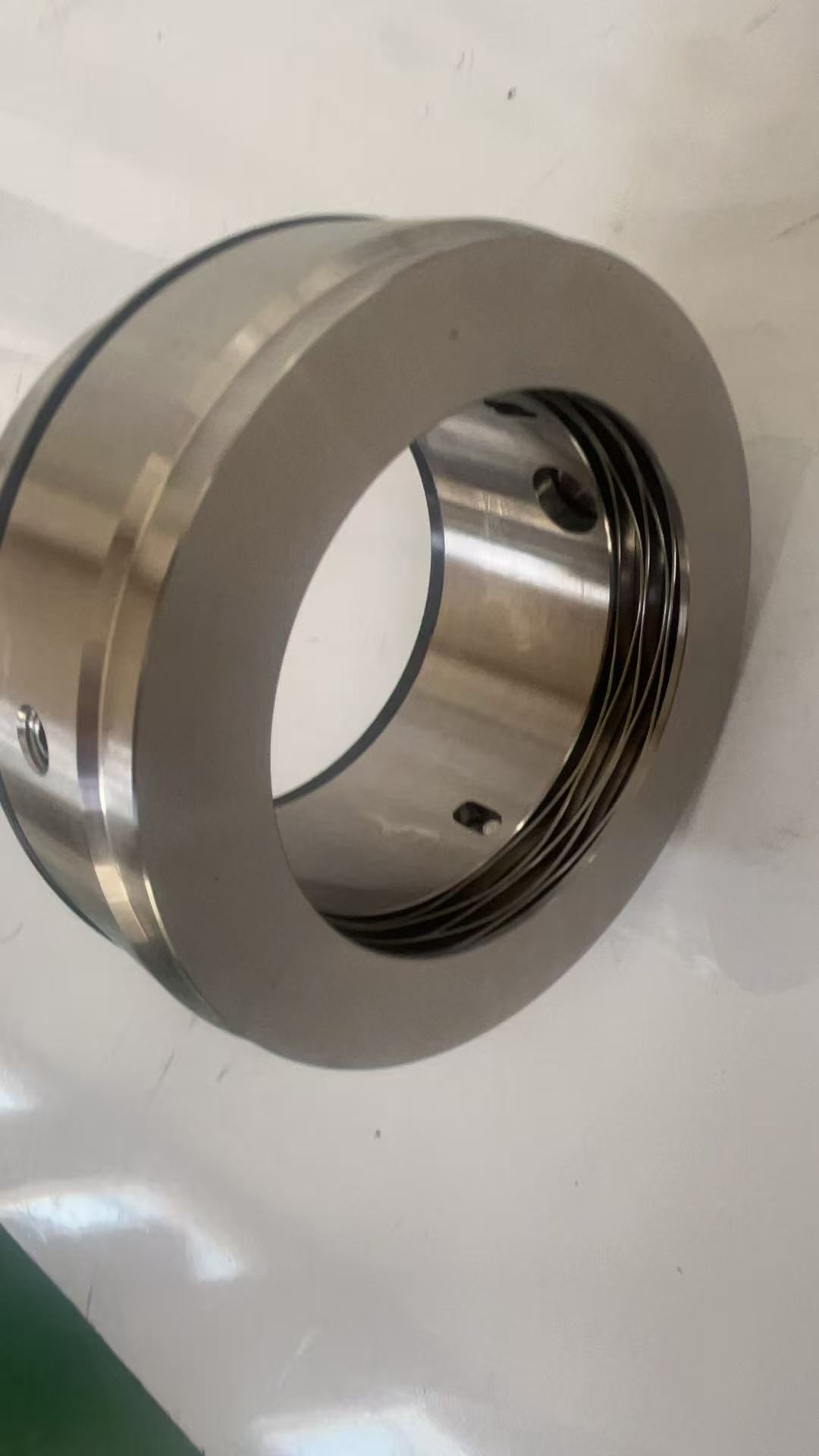

AS JCS1F
JCS1F — Single application-specific seal with flush into the medium. A variant of JCS1.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/SS316/SS316
5 Variants
| Model | Materials | GA |
|---|---|---|
| JCS1F-30-QREO | SiC/SiC/EPDM/SS316/SS316 | GA-309146-4 |
| JCS1F-40-GRMO | SiC/Carbon/FEP (PTFE)/SS316/SS316 | GA-309147 |
| JCS1F-50-QRMO | SiC/SiC/FEP (PTFE)/SS316/SS316 | GA-309148 |
| JCS1F-60-QRMO | SiC/SiC/FEP (PTFE)/SS316/SS316 | GA-309149 |
| JCS1F-80-GREO | SiC/Carbon/FEP (PTFE)/SS316/SS316 | GA-309150 |
Operating Conditions & Materials
Pressure
1.0 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Clean and lubricating fluids with flush into the medium. Water, oils, solvents and paper stocks.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
