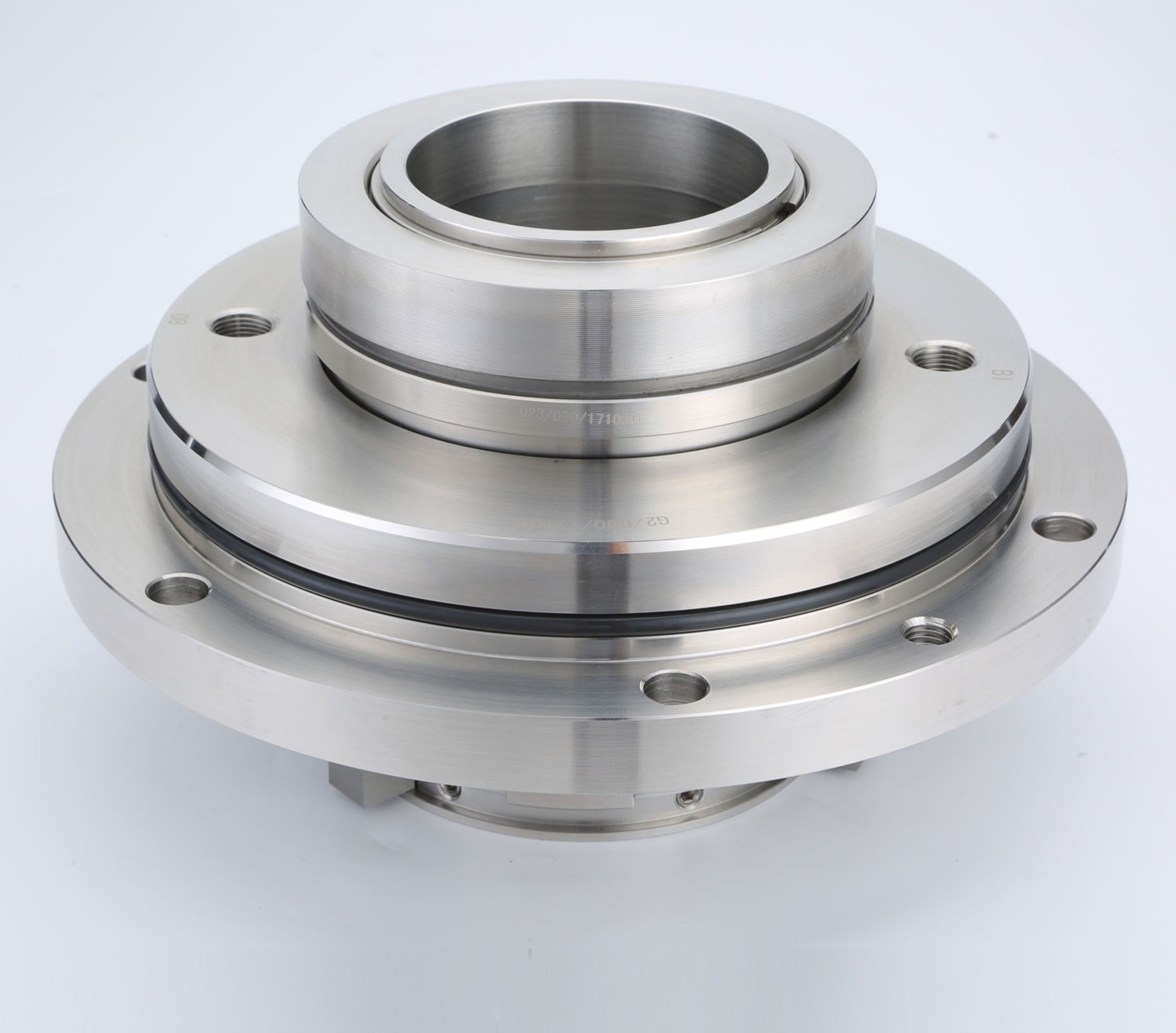

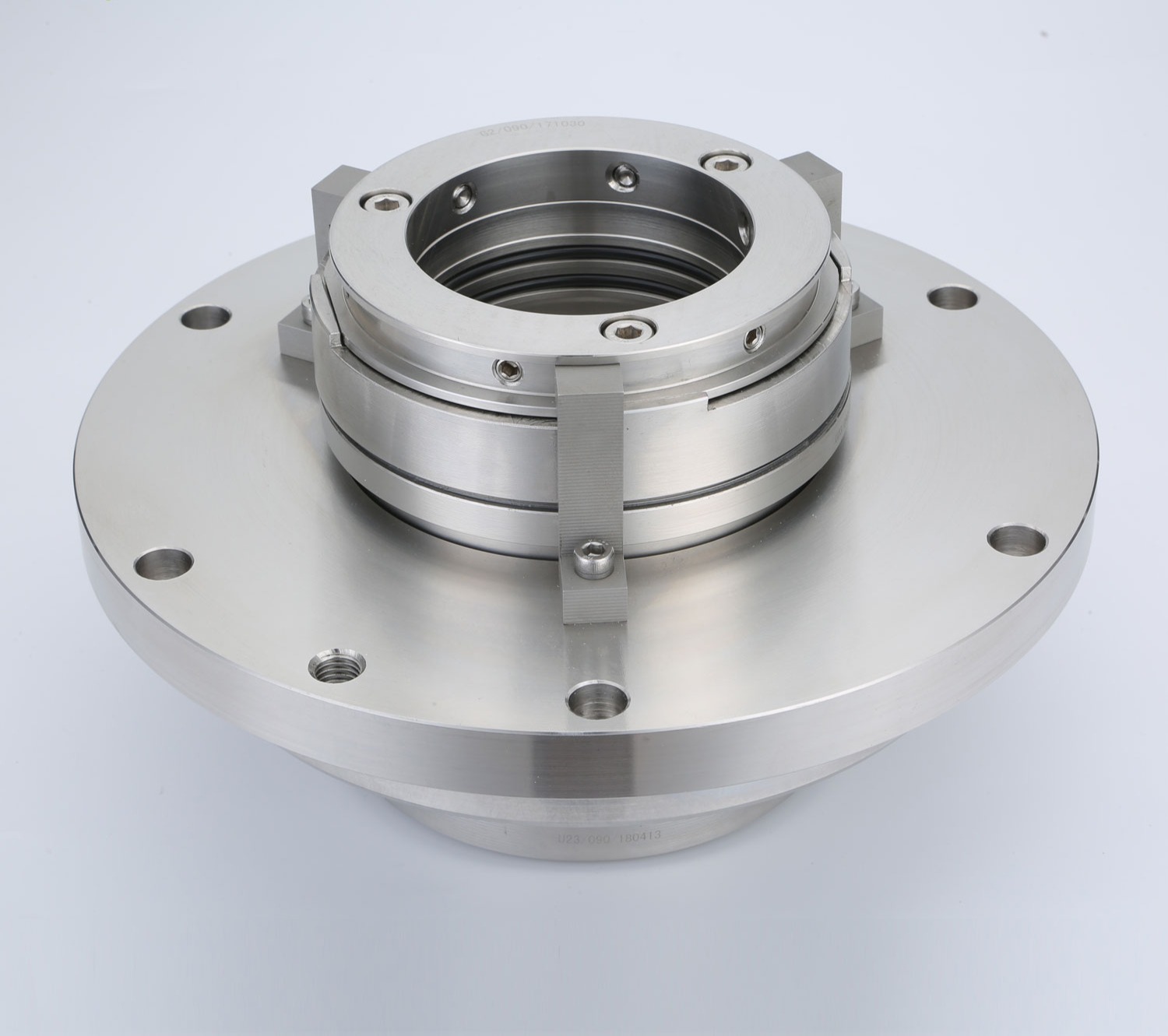

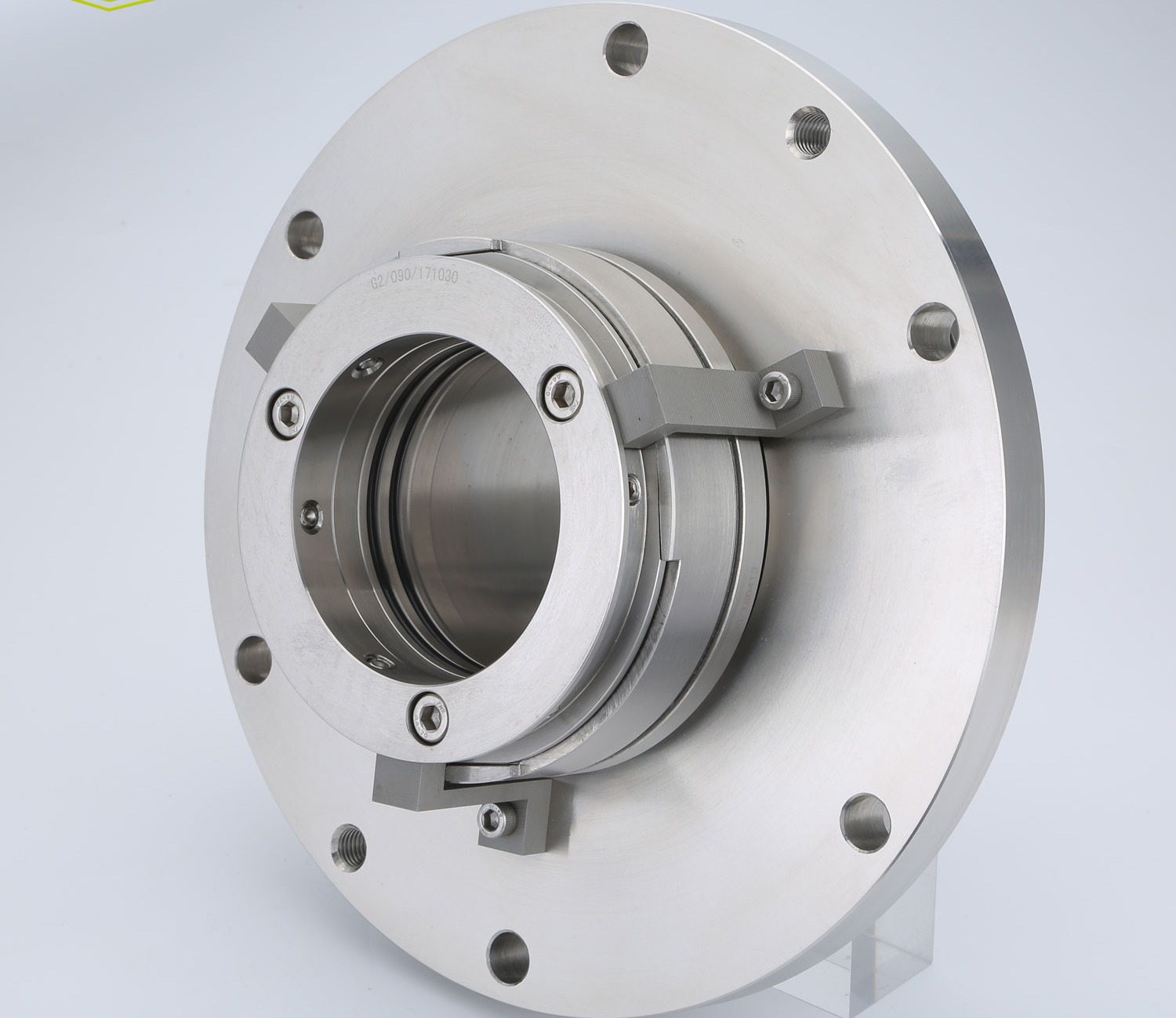

AS SAF-70-QREG-GA-304147
The SAF is a double-acting seal engineered for pumps, screens, knotters, sorters and pulpers in heavy process industries. Double-balanced design is fully independent of pressure changes in both process and barrier fluid. Rugged construction prevents failure and provides long, trouble-free service.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS329 Duplex - SiC/Carbon/EPDM/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| SAF-70-QREG | SiC/SiC/EPDM/HC276/SS329 Duplex - SiC/Carbon/EPDM/HC276/SS316 | GA-304147 |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Paper pulp for pressure screen applications (C4, H2, H3, H4, F2 screens).
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
