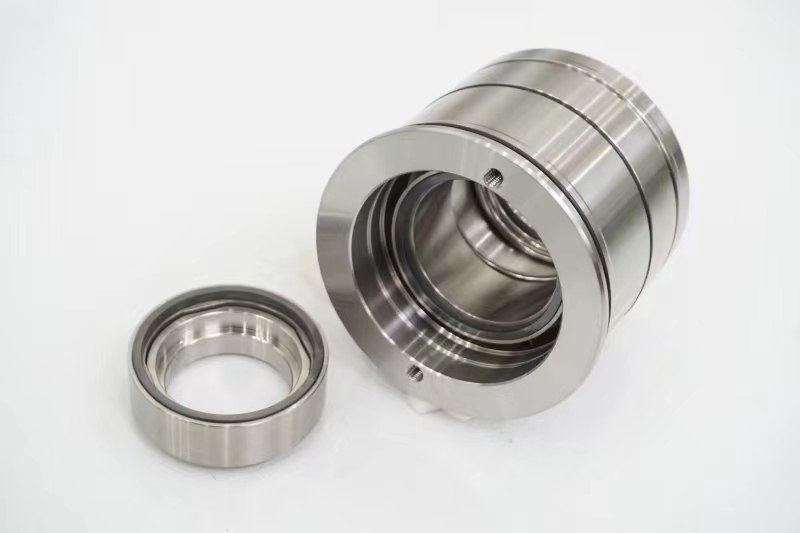

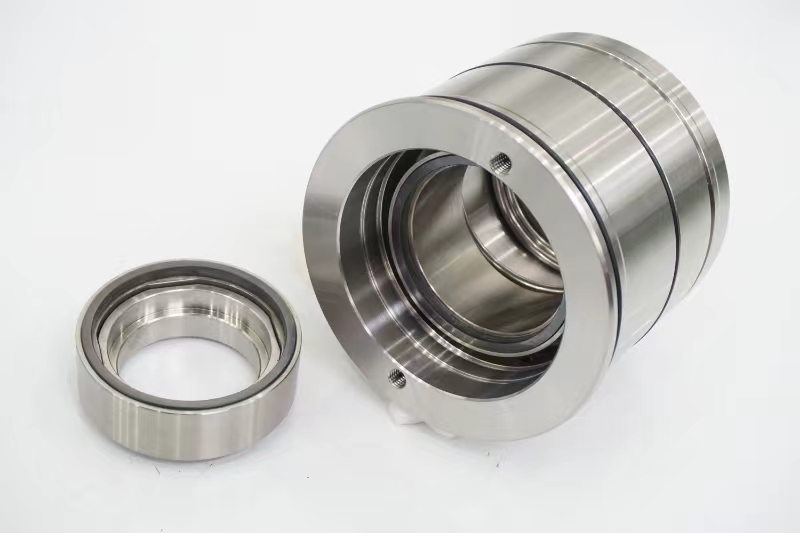

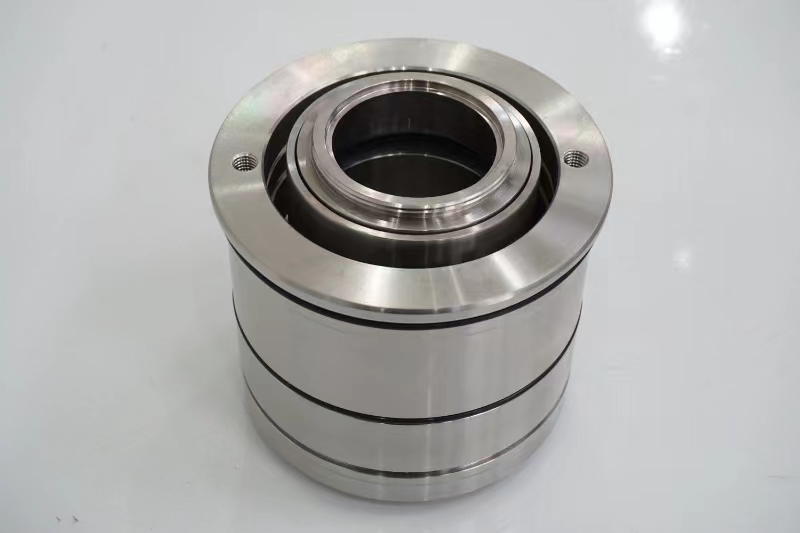

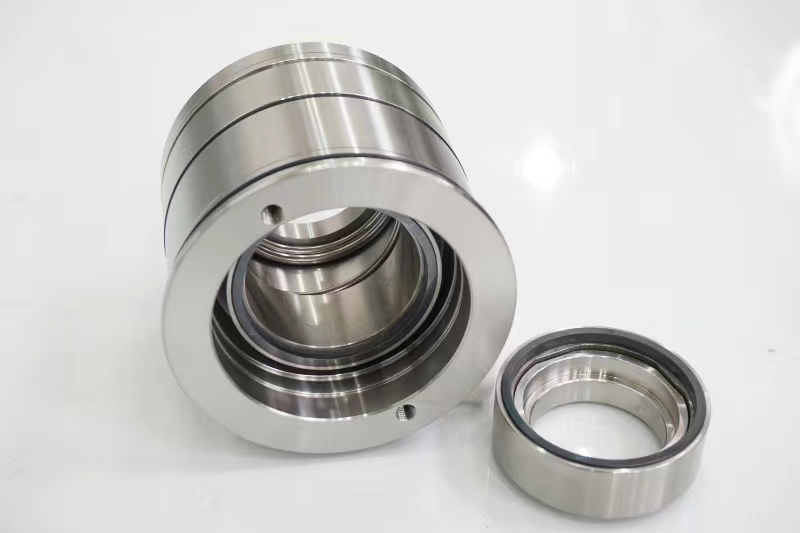

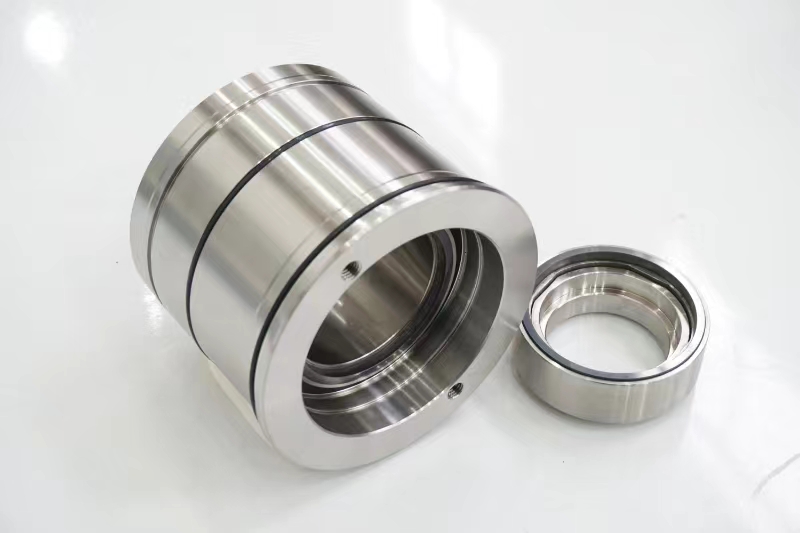

AS SE1-45-QREO-GA-304581
Single cartridge variant seal for Sulzer SALOMIX SL-80 horizontal mixer.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS2324 Duplex
1 Variant
| Model | Materials | GA |
|---|---|---|
| SE1-45-QREO | SiC/SiC/EPDM/HC276/SS2324 Duplex | GA-304581 |
Operating Conditions & Materials
Pressure
1.0 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Paper pulp, clean and lubricating fluids.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
