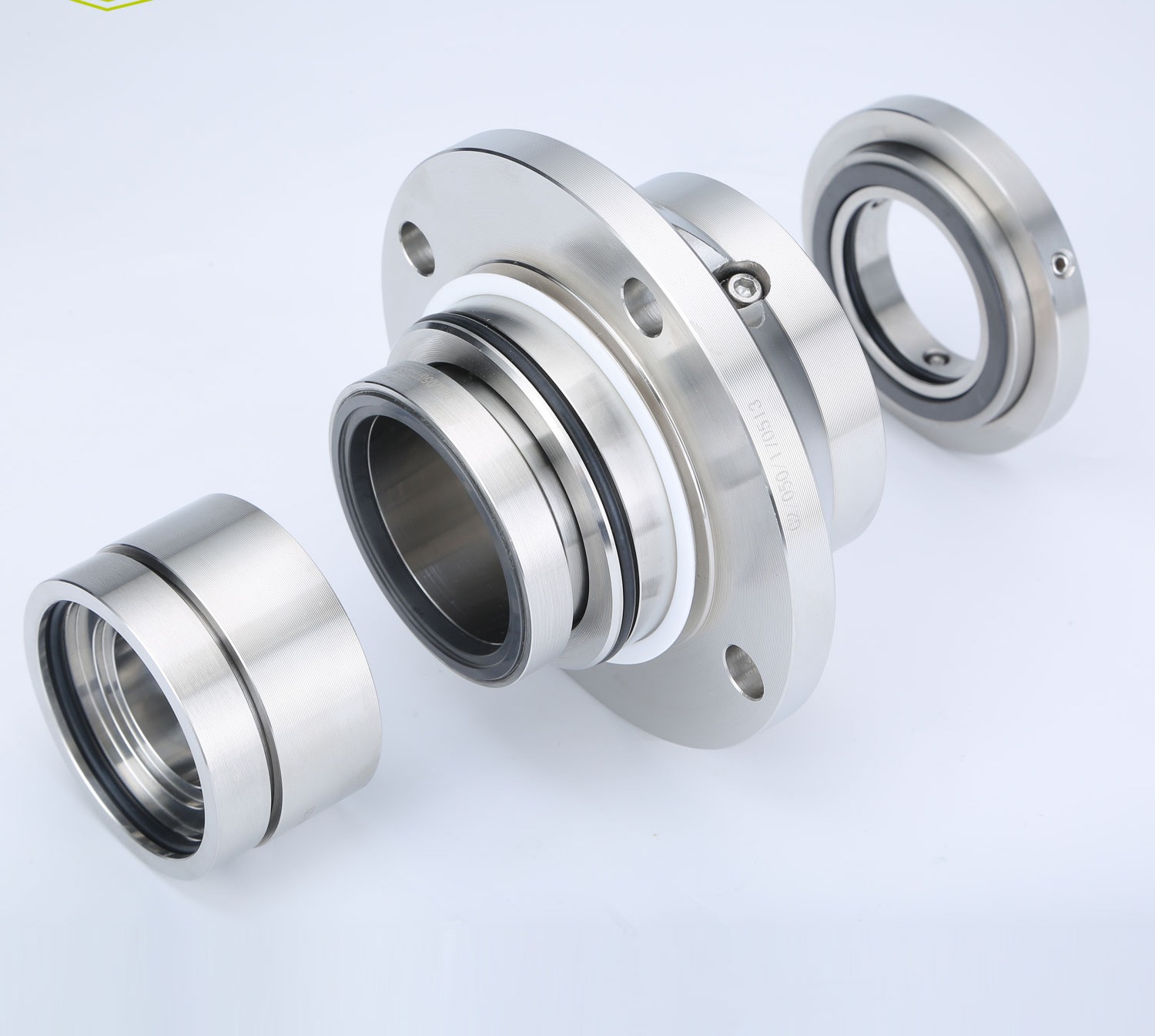

AS SE2-AP
The Type SE2 is a dual, balanced cartridge seal designed for severe applications found in the pulp and paper industry and slurry applications. Typically used for abrasive and environmentally hazardous liquids in cooking, evaporation and causticizing facilities. Features a patented double-balance design allowing both pressurized and unpressurized dual seal arrangements.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM
6 Variants
| Model | Materials | GA |
|---|---|---|
| SE2-AP-30-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-305061 |
| SE2-AP-40-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-305066 |
| SE2-AP-50-QRMG | SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/Carbon/EPDM | GA-305123 |
| SE2-AP-60-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-305145 |
| SE2-AP-80-QREQ | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | GA-305169 |
| SE2-AP-90-QRMG | SiC/SiC/FEP (PTFE)/HC276/SS316 - SiC/Carbon/EPDM | GA-305172 |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Abrasive and environmentally hazardous liquids in cooking, evaporation and causticizing facilities.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
