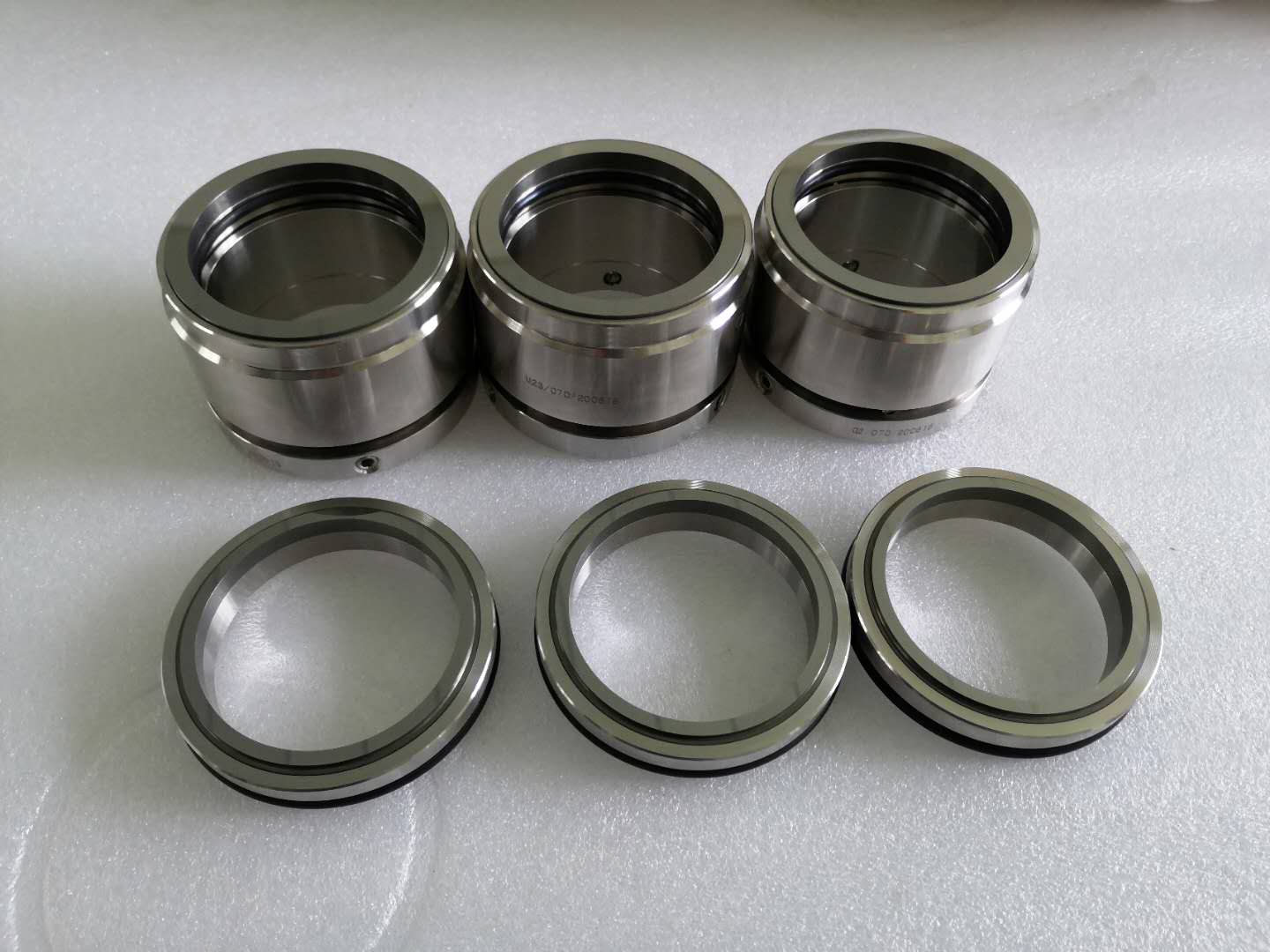

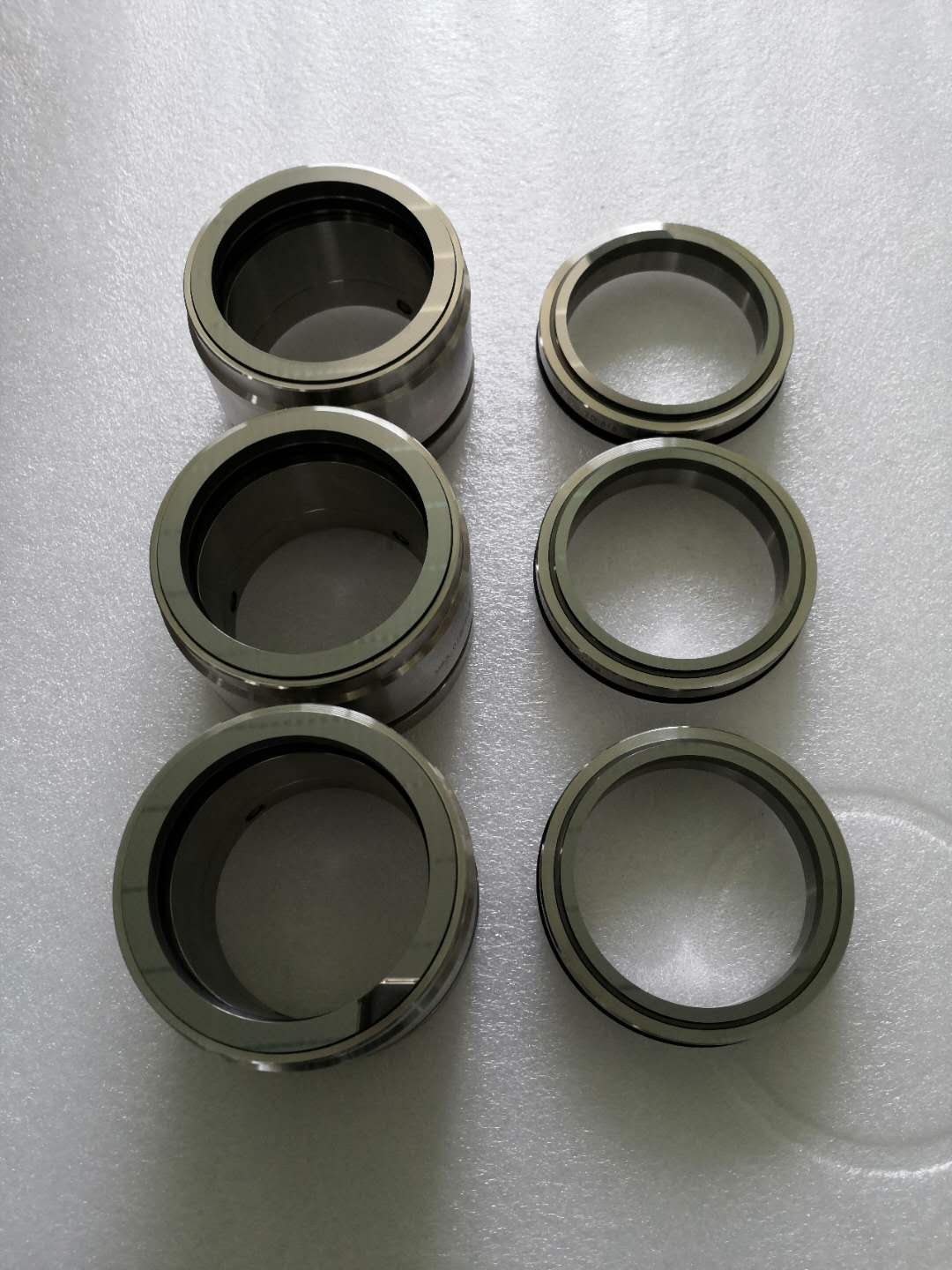

AS Type RO
AS RO Pusher Mechanical Seals for Paper Pulp Pumps, Mixers and Water Pumps.
Structural Features: single end, multiple springs, unbalanced, independent direction of rotation, drive sleeve transmission. This component has a simple structure and high reliability.
Industrial Standards: ANSI
Scopes of Application: mainly used in different types of mixers, such as fermentation tanks, seeding tanks, stainless steel reaction kettles and sewage treatment devices, as well as water pumps, sewage pumps, paper pulp pumps. This product is widely used in pulp and paper, mining, steel production, food and beverage, water treatment and management, geothermal, concentrated solar power and bio-fuels industries.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
TC/Carbon/FKM/SS304/SS304
1 Variant
| Model | Materials | GA |
|---|---|---|
| Type RO | TC/Carbon/FKM/SS304/SS304 | — |
Operating Conditions & Materials
Pressure
1.2 MPa or less
Temperature
-40 ºC to 180 ºC
Linear Speed
23 m/s or less
Mediums
Water, paper pulp, food, beverage and other weak corrosive mediums.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Related Products

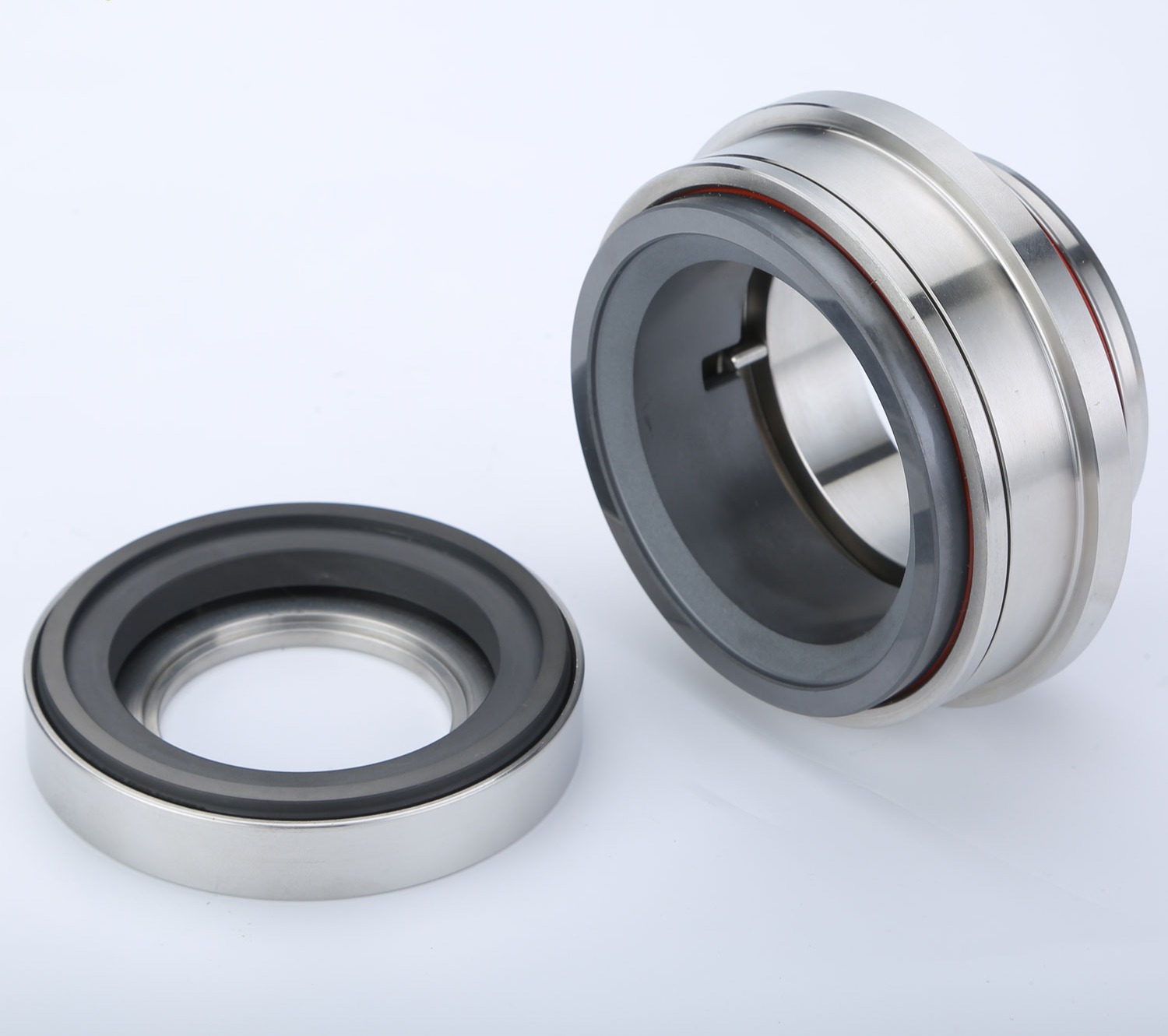

AS 587SP
Singleend, double balanced, independent direction of rotation, wave spring with spring protector. The still spring structure allows high speed operating conditions. The spring is separated from the sealed mediums so it will not be jammed. Simple structure, easy to install with stable performance. Widely used in paper pulp production, pharmacy, food processing, sewage treatment and chemical processing.

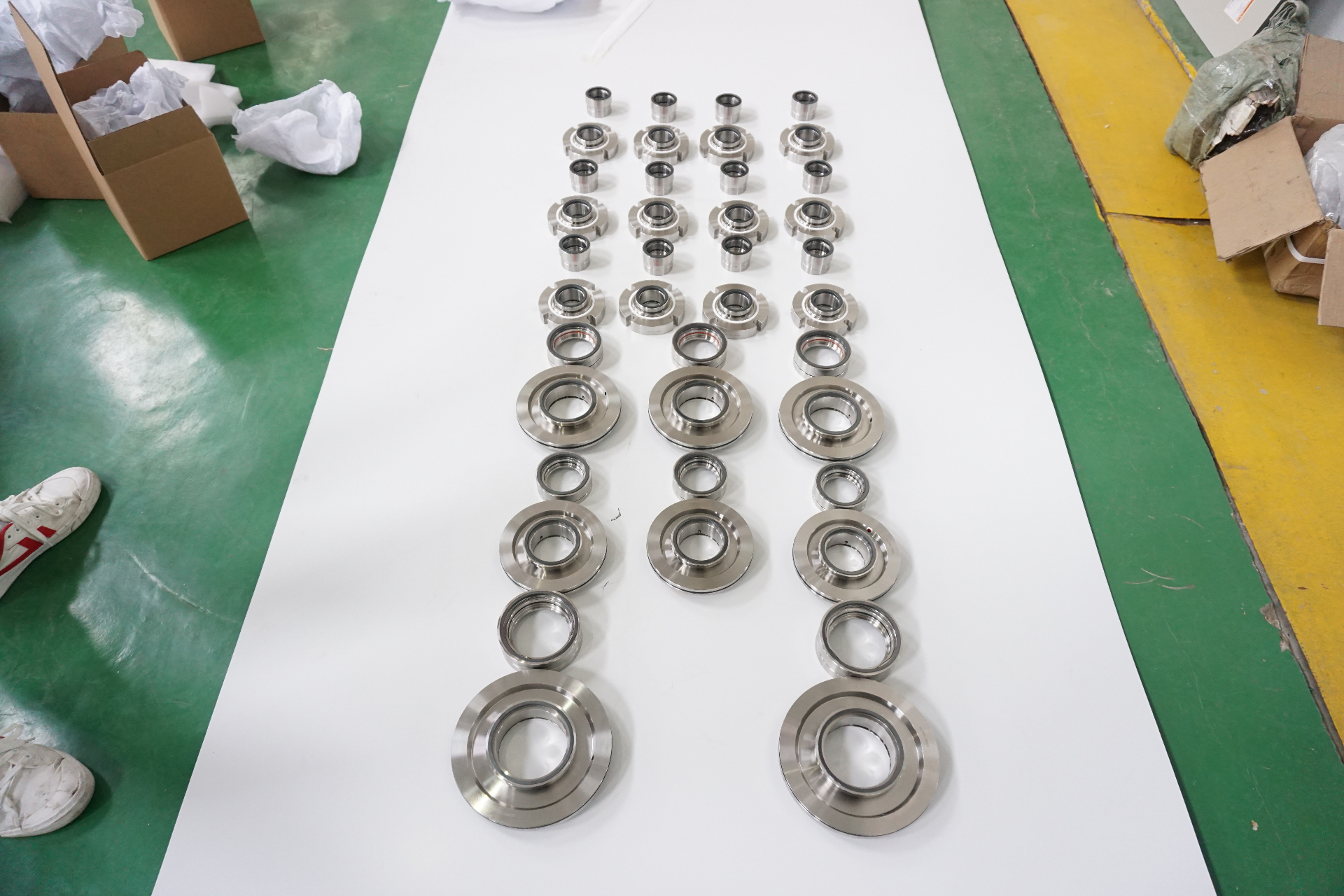

AS JCS1C
The JCS1C is a singleacting seal integrated into the target device. Developed for environmentally clean and lubricating liquids with low consistency (< 2%), such as water, various oils, solvents and pulp. The balanced design allows troublefree operation even in sudden pressure fluctuations, ensuring reliable and longlasting operation under demanding conditions.

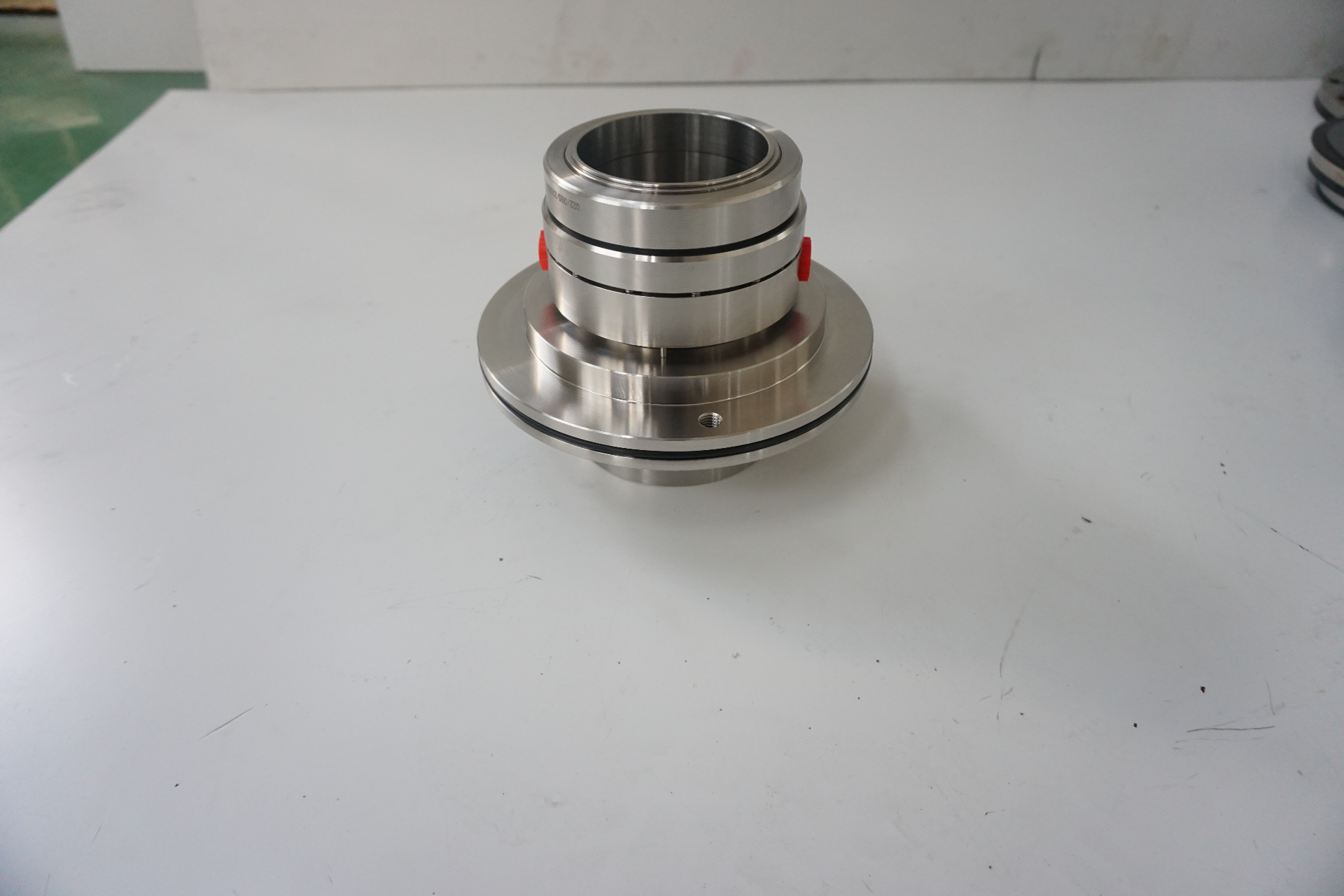

AS JCS2A
The JCS2A is a doubleacting seal integrated into the target device. Developed for pumps used for environmentally hazardous and abrasive liquids when operating limits of singleacting seals are exceeded. The doublebalanced design allows both pressurized and nonpressurized sealant use, ensuring reliable operation under demanding conditions.
Explore Related Mechanical Seal Categories
Compare adjacent seal types to find the best fit for your service conditions, pressure and temperature range.

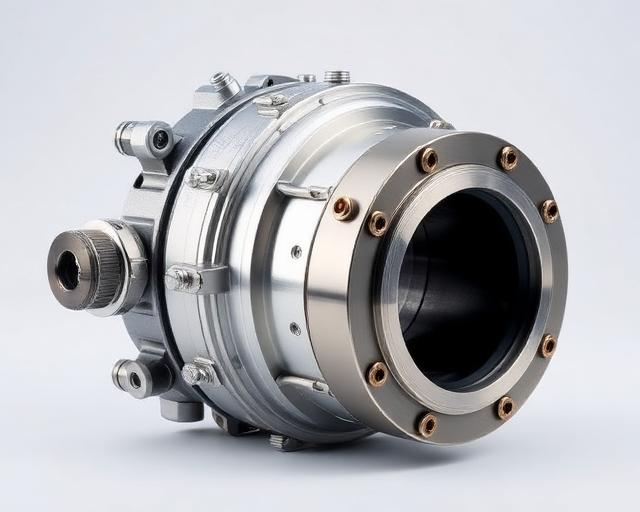

Pressure Screen & Refinery Seal
